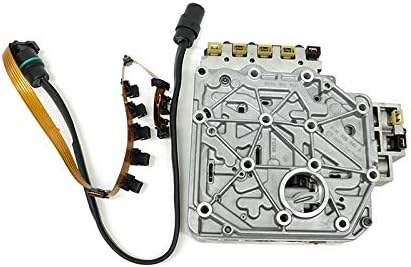

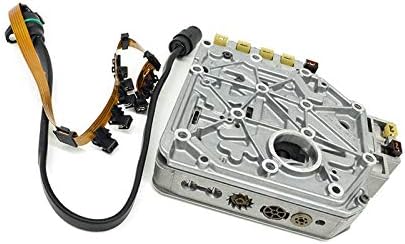

Complete assembled valve body with solenoids for the VW 01M four-speed automatic in Mk4 Jetta, Golf and Beetle, part 01M325283A.
A Mk4-chassis VW Jetta, Golf or New Beetle with the 01M four-speed automatic that flares between 2nd and 3rd, bangs hard into 1st-to-2nd, refuses to find 3rd or 4th, or drops into limp mode with a pressure-control or shift-solenoid code is almost always dealing with a worn valve body, not a transmission that needs to come out of the car. This unit carries VW part number 01M325283A and also covers casting numbers 096927435A, 01M325105F and 01M325039F - if your old body is stamped with any of those, this is the correct replacement, and it ships fully assembled with the solenoids and separator plate already installed.
The 01M is a fully electronically controlled automatic with no dipstick by design - the transmission control module fires the shift solenoids and the pressure-control solenoid that live on this valve body to time every shift and set line pressure for each clutch and band. Worn spool bores or a tired solenoid pack inside the casting lose the precise pressure control the module is asking for, and the shifts get soft, flared, or slam hard depending on which circuit is affected.
Pull codes first. A stored shift-solenoid or pressure-control circuit fault points at the valve body, but check the internal wiring harness for chafing before you assume the worst - a cracked harness on this transmission can throw the same codes as a failing valve body for a fraction of the cost to fix. If the harness checks out and the flare or bang-shift keeps showing up after a fluid and filter service, the valve body is the more likely cause.
This valve body is built for the VW 01M four-speed automatic behind the 2.0L gas and 1.9L TDI engines in the Golf (1999 with 8th VIN digit J, 2000-2004, and 2005 with 8th VIN digit J), Jetta (1999 with 8th VIN digit M, 2000-2004, and 2005 with 8th VIN digit M), and New Beetle (1998-2005). The 01M shared its case across several internal revisions during that run, so match the part number stamped on your old casting - 01M325283A, 096927435A, 01M325105F or 01M325039F - before ordering, or send us your VIN and we will confirm the correct revision.
Drain the fluid, drop the pan, unplug the internal harness connector, pull the old filter, then back the valve body bolts out working from the outside in so the casting comes down flat and the check balls stay seated - note the bolt lengths as they come out, since they are not all the same length on the 01M. Set the replacement on the case dowels and torque the bolts evenly in a cross pattern. While the pan is down, inspect the internal wiring harness for chafing and replace it if it shows any damage, and check the solenoids with our 01M shift solenoid kit if they are original. A hot-running 01M is also a common reason valve bodies wear out early, so adding our 01M transmission cooler at the same time protects the new unit. Fill with G 052 162 A2-spec ATF through the side check plug at the correct fluid temperature rather than by dipstick - the 01M is a temperature-fill unit, and overfilling it will foam the fluid and cause new shift complaints. If the clutch packs or pump also show wear, our 01M master rebuild kit covers the full overhaul. Let the adaptive shift values relearn over the next several drive cycles after the fluid is set.
| Part Number | |
| Interchange | |
| Transmission | |
| Fitment | |
| Condition | |
| Package Dimensions |
Yes. It ships fully assembled with the shift solenoids, the pressure-control solenoid, and the separator plate already in place, so you are installing a complete hydraulic circuit rather than transferring parts from your old unit.
Check the number stamped on your original casting against 01M325283A, 096927435A, 01M325105F or 01M325039F. The 01M ran through several internal revisions, and matching the casting number is the only reliable way to confirm fitment - send us your VIN if you are not sure.
VW spec G 052 162 A2. Fill it through the side check plug with the fluid at the correct operating temperature rather than using a dipstick - the 01M was designed without one, and overfilling it cold will foam the fluid.
This listing covers the 01M as used in the Golf, Jetta and New Beetle on the years listed above. The transverse-engine Passat and some Audi A3 applications also used an 01M-family transmission but on different casting numbers in some years, so confirm your part number before ordering.
Inspect the internal wiring harness for chafing, since a damaged harness can mimic valve body symptoms, and change the fluid and filter at the same time so debris from the old unit does not circulate through the new one.
