AW55-50SN AW55-51SN Transmission Master Rebuild Kit AF23 AF33

This master kit is for the shop or home builder who already has an Aisin AW55-50SN out of the car and on the bench. It covers the whole family under its other names, AW55-51SN, AF23 and AF33, and is cross-referenced to T15900A, T15902A, T159080A and T159081A. Typical buyers own a Volvo S40, S60, C70 or S80 2.5L, a Saab 9-3 or 9-5, a Nissan Altima, Maxima or Quest 3.5L, an Opel or Vauxhall Vectra, or a GM application such as the Equinox or Torrent, and the complaint is the same everywhere: a flare on the 2-3 shift, a harsh or late engagement into Drive, or slipping once the fluid gets hot.

What the master rebuild kit does in an AW55-50SN

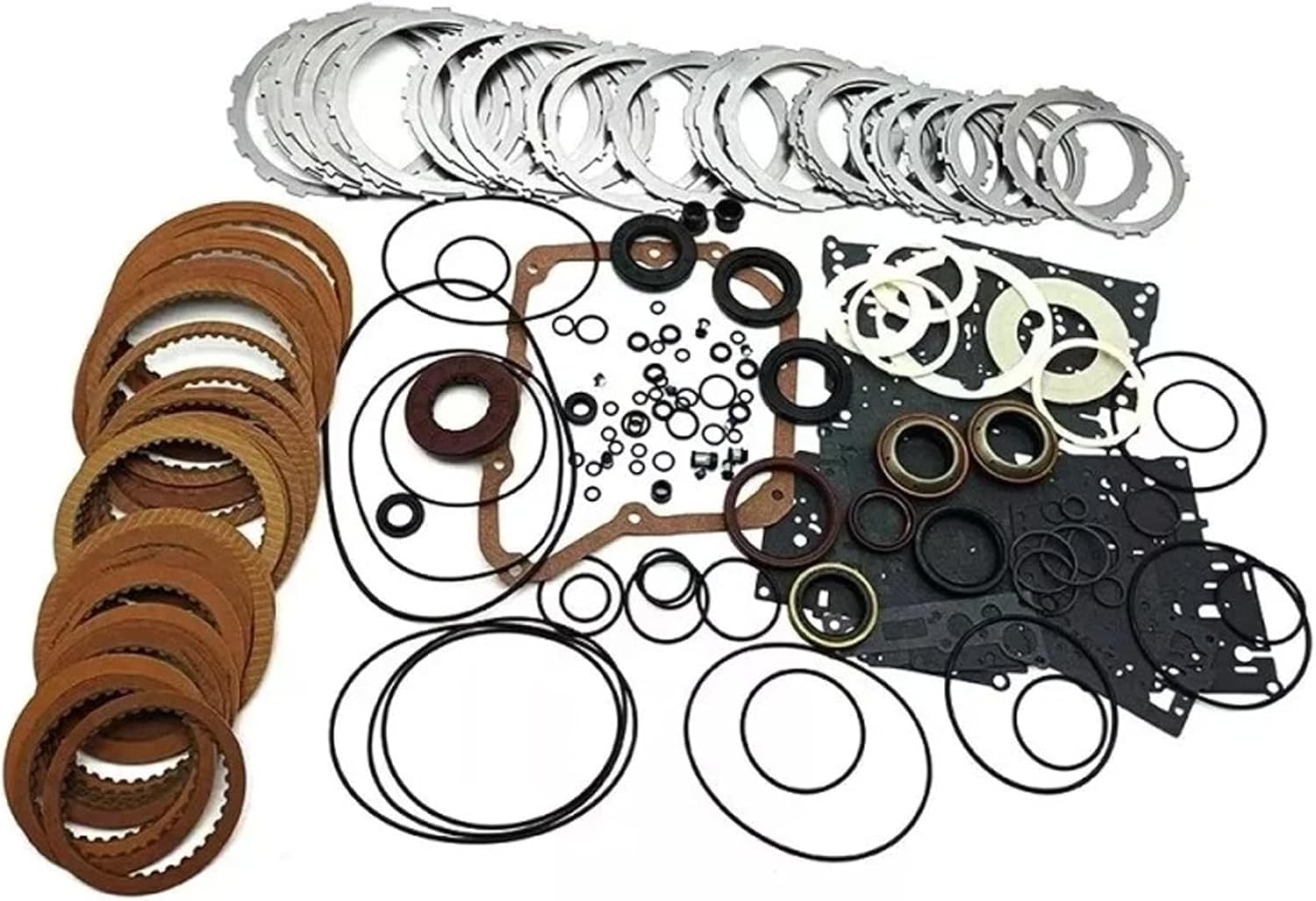

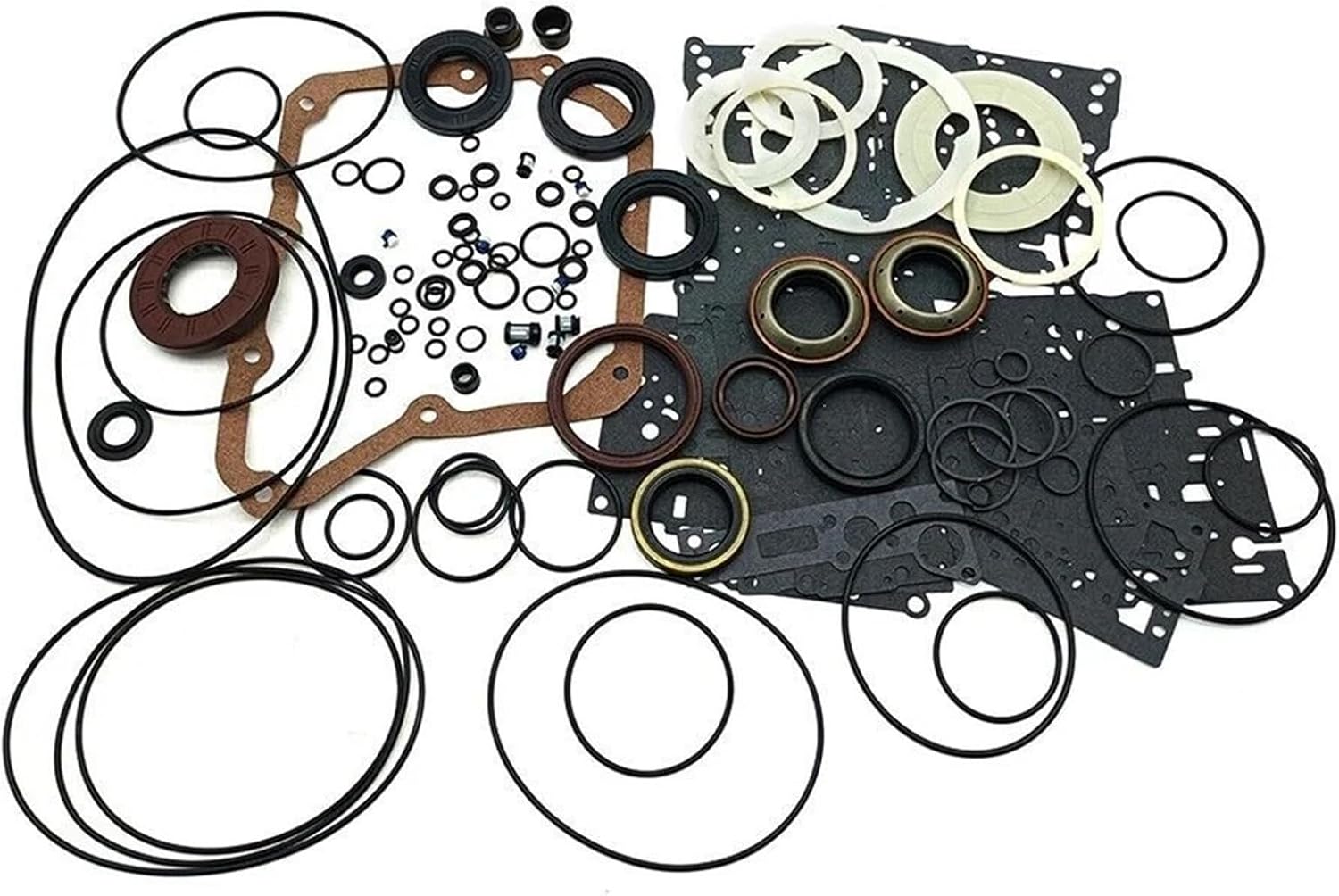

The AW55-50SN is a transverse five-speed that makes each ratio by applying clutch packs, brakes and a band, with linear solenoids on the valve body setting the apply pressure. The friction plates in those packs are the parts that actually wear out, and the rubber piston seals and sealing rings are what let pressure bleed away as they harden. This kit replaces both groups at once: friction clutch plates, steel plates, the gasket set, rubber seals, metal-clad seals, sealing rings and O-rings. It is a soft-parts kit. The pump, drums, planetaries and solenoid body are not in the box; those are inspected and reused from your core, or replaced separately.

Symptoms that justify a full overhaul

• Engine flare between 2nd and 3rd that gets worse as the fluid warms up
• Slipping under load on a hot transaxle, often with a gear ratio fault stored
• Delayed or harsh engagement into Drive or Reverse
• Dark, burnt-smelling fluid and friction debris on the pan magnet
• Seepage from several seals at once, a sign the rubber throughout the case is tired

How to confirm the clutches are the problem

The AW55-50SN is well known for valve body and solenoid faults that mimic worn clutches. Sonnax documents bore wear at the solenoid modulator and regulator valves on this unit, and a worn bore can starve a clutch of pressure even when the frictions are fine. Before you commit to a teardown, check the fluid condition and level, scan for solenoid circuit codes versus ratio codes, and read our AW55-50SN service guide for the diagnostic order we use. If the pan shows heavy friction material, the packs are gone and this kit is the right buy. If the fluid is clean and the shift complaint is harsh rather than slipping, look at the AW55-50SN valve body first.

Fitment

This kit is listed for the AW55-50SN, AW55-51SN, AF23 and AF33 across the Volvo, Saab, Nissan, Opel/Vauxhall and GM applications named above. The family was built for many automakers and the internal hardware is not identical between them, so match the identification tag on the case to the unit you are rebuilding, or send us the year, model and VIN before ordering and we will confirm. Every Aisin unit we stock is grouped on the Aisin transmission parts page.

Install notes

• Soak every new friction plate in fresh ATF before stacking the packs, and measure clutch clearance on each pack rather than assuming it matches the old stack height.
• Air-check each drum and piston after assembly so a pinched seal is found on the bench, not in the car.
• Inspect the pump bushing and gear pocket; a scored pump will undo a fresh clutch job. Our AW55-50SN pump is the replacement if yours is worn.
• Do not confuse the band anchor bolt with a fill plug on reassembly; ATRA notes that loosening it lets the band move and costs you 3rd gear.
• The kit contents do not list a filter, so plan on a new filter with the rebuild, and flush or replace the cooler so old debris does not return.
• Refill with an ATF meeting Aisin Warner JWS 3309, check the level hot at the check plug, then clear and relearn adaptives before the road test. See Aisin overheating prevention for keeping the rebuilt unit cool.

Does this kit fit both the AW55-50SN and AW55-51SN?

Yes. It is listed for the AW55-50SN, AW55-51SN, AF23 and AF33 and cross-referenced to T15900A, T15902A, T159080A and T159081A. Because the family was built for several automakers with internal differences, match the case tag or send year, model and VIN so we can confirm before it ships.

Is the pump, solenoid body or valve body included?

No. This is a soft-parts master kit: frictions, steels, gaskets, rubber seals, metal-clad seals, sealing rings and O-rings. Hard parts such as the pump, drums and solenoid body are reused from your core or bought separately.

What fluid goes back in after the rebuild?

Use an ATF that meets the Aisin Warner JWS 3309 specification, the fluid this family was filled with from the factory. Set the level hot through the check plug rather than guessing from a quart count.

My AW55-50SN shifts hard but does not slip. Do I need this kit?

Possibly not. Harsh shifts with clean fluid usually point to the valve body or linear solenoids, which this unit is known for. Slipping, flare and burnt fluid with friction debris are the signs that the clutch packs need this kit.

Do I need a relearn after installing the rebuilt transmission?

Yes. Clear the stored adaptive values with a scan tool and let the control module relearn shift timing on a road test. Old adaptives were learned on worn clutches and will make a fresh rebuild shift poorly at first.
