GM 8.6" 10-Bolt Differential Master Overhaul Kit 1999-2008

A 1999-2008 Silverado 1500, Sierra 1500, Tahoe, Yukon or Suburban that hums from the back at 45 to 65 mph, changes pitch when you lift off the throttle, or weeps gear oil past the pinion yoke is telling you the 8.6-inch 10-bolt needs bearings. This USA Standard Gear master overhaul kit is built for exactly that axle and that job. It puts every bearing, race, shim and setup consumable for the center section in one box, with Koyo bearings, so you can rebuild the rear around your original gears or set up a new ratio without a second parts run.

What a master overhaul kit does in a GM 8.6

The 8.6 is GM's light-truck 10-bolt with an 8.625-inch ring gear, C-clip axle retention and rear disc brakes. Two things wear out in it. The pinion turns on an inner and outer tapered roller bearing held in preload by a collapsible crush sleeve, and the carrier turns on two side bearings with shims behind them. Once those bearings pit or lose preload, the pinion can move fore and aft under load and the ring gear can walk sideways, so the tooth contact pattern drifts and the axle starts to sing. A master kit replaces all four bearings and their races together and gives you the shims to put the gears back exactly where they belong.

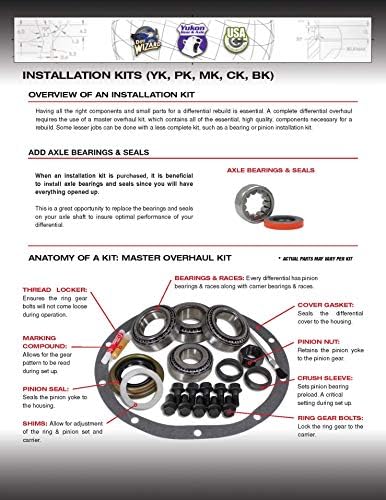

According to USA Standard Gear, this kit (their ZK GM8.6) contains carrier bearings and races, pinion bearings and races, a pinion seal, a complete shim kit, ring gear bolts, a pinion nut, a crush sleeve, thread locker, marking compound with a brush and a cover gasket. It does not include axle shafts, axle bearings or axle seals, a carrier, or the ring and pinion.

Symptoms that call for a full bearing job

• Whine on acceleration, on coast, or both, that rises and falls with road speed rather than engine speed
• Deep growl or rumble from the center of the truck that gets louder with load or a trailer
• Clunk taking up slack when you shift into drive or tip in and out of the throttle
• Oil on the pinion yoke, driveshaft or frame from a pinion seal that has let the bearings run low
• Bronze or steel flakes on the drain magnet, or a pinion yoke you can rock by hand

How to confirm the noise is the differential

Drive at a steady speed, then let off the gas without braking. A sound that changes between drive and coast is gear mesh or pinion bearing related; a sound that changes as you swerve side to side is usually a wheel bearing. On stands, grab the yoke and push it up, down, in and out. Play there means pinion preload is gone. Before you tear down, mount a dial indicator with a magnetic base on the housing and record backlash so you have a reference for reassembly, then paint a few teeth with the marking compound to read the existing pattern. If the teeth are chipped or deeply scored, plan on gears as well, such as the 3.73 ring and pinion for the GM 8.5 and 8.6.

Fitment

This kit is for the 1999-2008 GM 8.6-inch rear only. Rear disc brakes are the quick visual tell, because the 8.5 it replaced used drums, and both share the 10-bolt cover. Early trucks around the changeover can carry either axle, so check the brakes and the RPO code on the glovebox label instead of going by model year alone. GM changed the pinion bearings for 2009, so a 2009-and-newer 8.6 needs the 2009-up 8.6 overhaul kit instead. Want Timken bearings rather than Koyo for the 1999-2008 axle? Compare the Yukon YK GM8.6-A. If you are not sure which axle you have, send us your year and VIN and we will check it. More differential and transmission kits are in rebuild kits.

Install notes

• Pull the C-clips and axles before the carrier, and mark the bearing caps left and right; they are machined with the housing.
• Pressing old bearings off the carrier and pinion takes a bearing puller or press. The new races drive into the housing and must seat fully.
• Set pinion depth first with the shim behind the inner pinion race, then carrier position and backlash with the side shims, and confirm with the marking compound before final assembly.
• The crush sleeve is single use: tighten the pinion nut in small steps and stop at the specified rotating torque. If you overshoot, replace the sleeve rather than backing the nut off.
• Thread locker goes on the ring gear bolts, torqued in a crossing pattern.
• Refill with 75W-90 gear oil to the bottom of the fill hole, and check the GM fill spec for your axle code if the truck has the factory locking differential. A fresh triple-lip 8.6 pinion yoke is worth it if the old seal surface is grooved.

Every kit ships fast from the USA, packed as one part number so nothing goes missing between the counter and the bench.

Will this kit fit my 2010 Silverado 1500 with the 8.6 rear?

No. This kit is for 1999-2008 8.6 axles. GM changed the pinion bearings in 2009, so 2009-and-newer trucks need the separate 2009-up 8.6 overhaul kit.

Does it come with axle bearings and axle seals?

No. It covers the center section: carrier and pinion bearings with races, pinion seal, shims, crush sleeve, ring gear bolts, pinion nut, thread locker, marking compound and cover gasket. Axle bearings and seals are sold separately.

Can I reuse my original ring and pinion with this kit?

Yes, if the teeth are not chipped, pitted or heavily scored. Record backlash and the contact pattern before teardown and reproduce them with the new bearings and shims.

How do I tell an 8.6 from an 8.5 10-bolt?

Both use a 10-bolt cover, but the 8.6 has rear disc brakes and the 8.5 has drums. Confirm with the axle RPO code on the glovebox label, especially on trucks built near the changeover.

What gear oil goes back in after the rebuild?

Use 75W-90 gear oil filled to the bottom of the fill plug hole. If the axle has the factory locker, follow the GM fill spec for that axle code.

Do I need special tools?

Plan on a bearing puller or press, race drivers, a dial indicator with a magnetic base, and an inch-pound torque wrench for checking pinion rotating torque.
