VW Golf MK4 Manual Shifter Bushing Rebuild Kit, 24 Piece

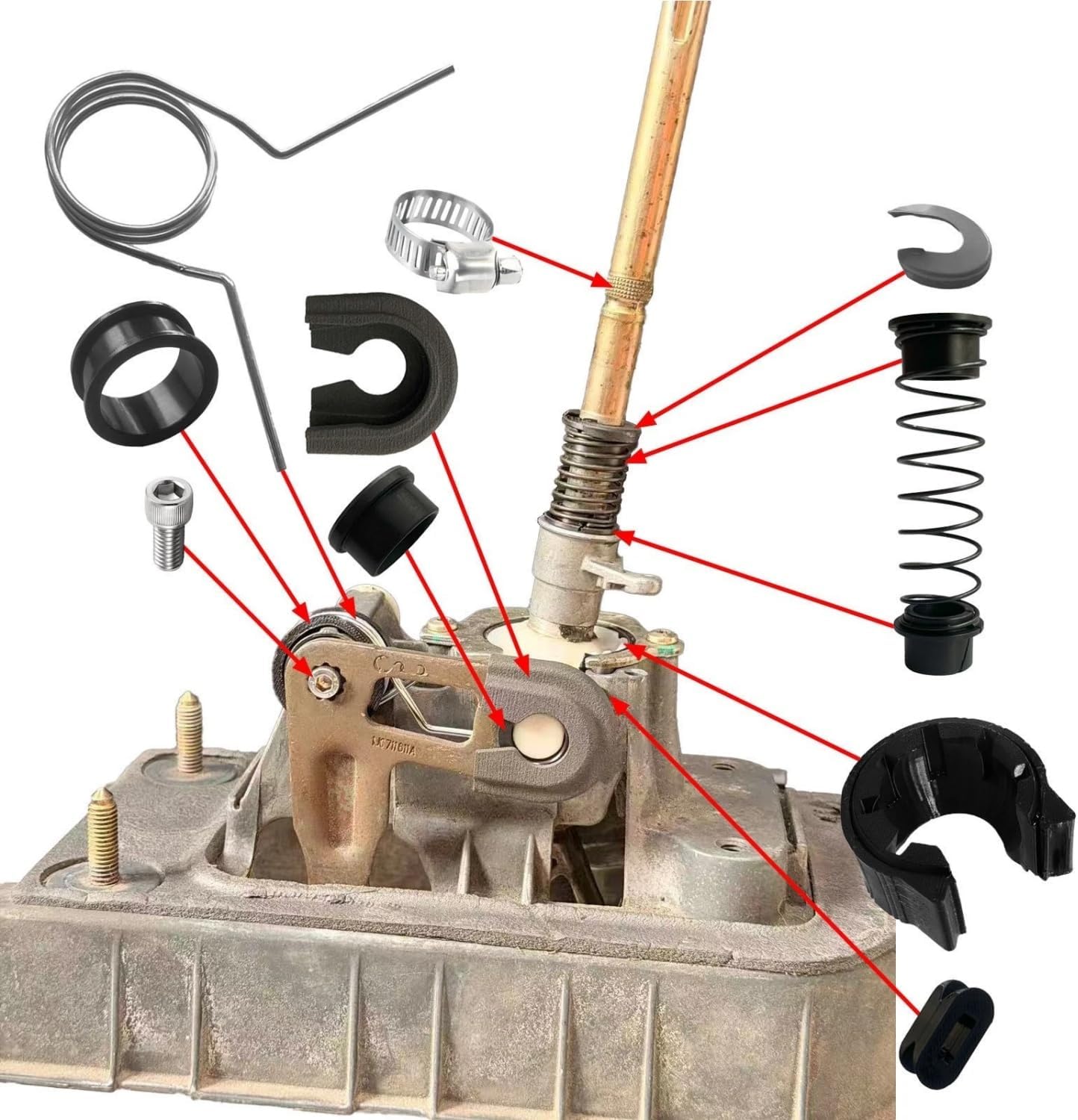

A MK4 Golf, Jetta or New Beetle with a manual gearbox that has started to feel like stirring soup - the lever wanders in the gate, first and reverse are hard to find, and the knob buzzes at idle - almost always has worn plastic and rubber in the shift tower and cable ends, not a bad transmission. This 24 piece kit replaces those wear points together: shifter bushings, return springs, retainers, pins, gaskets and the linkage adjustment hardware, cross-referenced to VW numbers 1K0711699, 1J0711550, 1J0711761B, 1J0711761C, 5N0711761 and 171711067B.

What the shift tower bushings do in a cable-shift MK4

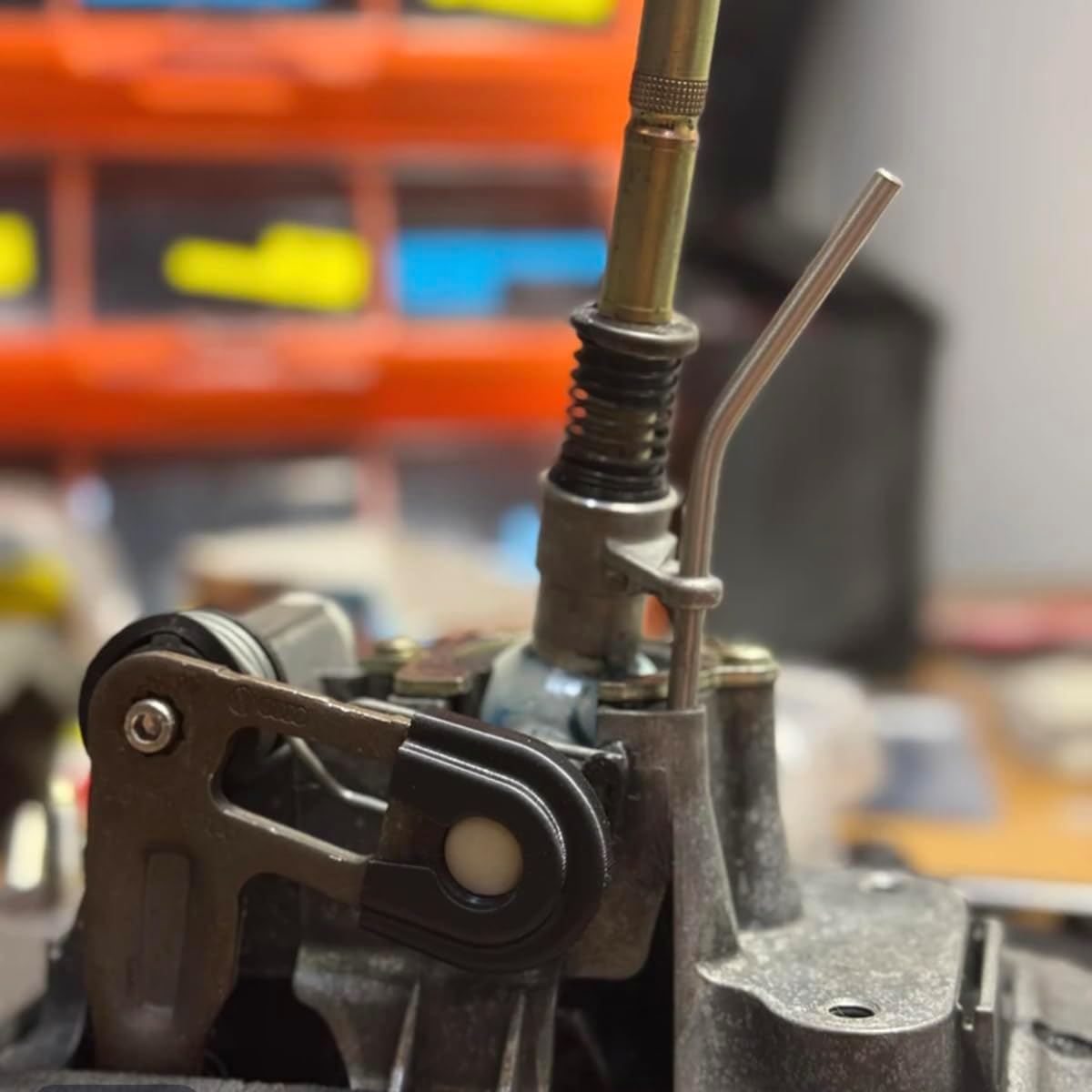

On the MK4 the lever does not touch the gearbox. It pivots in a tower bolted to the floor and drives two cables: a selector cable that moves the gearbox side to side between planes, and a shift cable that pushes it fore and aft into gear. Every pivot in that chain rides in a plastic or rubber bushing, and the cable ends snap onto ball studs through small plastic cups. Each one only needs a little play before the slop stacks up, and the lever ends up an inch away from where the gearbox actually is. That is why one new bushing rarely fixes the feel - the wear is spread across the whole tower.

Symptoms of worn shifter bushings

• Lever wanders or flops side to side in neutral and will not center on the 3rd-4th plane
• Vague, rubbery gate feel; reaching for 3rd lands in 5th or 1st lands in 3rd
• First gear or reverse hard to find, or the lever has to be held into first
• Knob rattles or buzzes at idle and over bumps
• Cable end pops off its ball stud, leaving the car stuck in one gear

How to confirm it before you buy

Pull the shift boot and rock the lever in neutral with the engine off. If you can see the lever move inside the tower without the cables moving, the tower bushings are gone. Then open the hood, find where the two cables land on the gearbox, and have a helper work the lever: play between the cable end and its stud means cracked cable-end cups. If the cables and tower are tight but the car still grinds going into gear with the clutch fully down, look at the clutch hydraulics instead - a weak concentric slave cylinder causes drag that feels like a shifter problem.

Fitment

The listing covers US-market cable-shift manuals in the Golf MK4 2000-2002, Jetta MK4 2000-2001 and 2003-2004, and New Beetle 2000-2007. The same tower was also used on the Bora, Polo, Lupo and Sharan and on the Seat Leon, Ibiza, Cordoba, Arosa and Alhambra and Skoda Octavia sold overseas. Parts varied across MK4 production, and 6-speed cars and the 2002 Jetta are not on the listed range, so compare the old parts or the numbers above against what is on your car, or send us the year and VIN and we will check it. Other manual gearbox parts are on the hard parts page.

Install notes

• Remove the shift knob and boot, then the center console, to reach the tower.
• Unclip both cables at the tower; mark which is selector and which is shift.
• Unbolt the tower, take it to the bench, and replace every pivot bushing, spring and clip in the kit - do not reuse the old retainers, they are brittle.
• Reinstall the tower with the new gasket and snap the cables on with new clips.
• Set the selector adjustment with the gearbox in neutral so the lever sits centered in the 3rd-4th plane before you lock the adjusters, then check every gear including reverse with the engine off.

If you are in the tower because the car also grinds, change the gearbox oil while you are at it - a quart of 75W-90 GL-4 manual transmission fluid is the kind of synchro-safe oil these units want; check the fill spec for your gearbox code. Cars that also slip under boost or chatter on takeoff are due for a clutch and flywheel kit, and doing both jobs together saves pulling the console twice.

Will this fix a MK4 that will not go into first or reverse?

If the clutch fully releases and the problem is that the lever cannot find the gate, yes - worn tower bushings and a sagging selector adjustment are the usual cause. If it grinds going in with the pedal on the floor, check the clutch slave cylinder and fluid first.

Does it fit the 6-speed and the 2002 Jetta?

The listed US fitment is Golf 2000-2002, Jetta 2000-2001 and 2003-2004, and New Beetle 2000-2007 with the cable-shift manual. The 6-speed and the 2002 Jetta are not on that list, so match your old parts or send us the year and VIN before ordering.

Does this kit include the bushings on the gearbox end?

It covers the shift tower, springs, retainers, pins, gaskets and linkage adjustment hardware. Check the cable ends at the gearbox while you are in there; if they are cracked they need replacing too.

Do I need to adjust the linkage after installing it?

Yes. With the gearbox in neutral, set the selector cable so the lever rests centered in the 3rd-4th plane, lock the adjusters, then run through every gear with the engine off before driving.

How long does the job take?

Plan on a few hours for a first timer: console out, tower out, bench rebuild, reinstall and adjustment. No transmission removal is needed.
