5HP19FL Valve Body with 7 Solenoids for Audi 01V

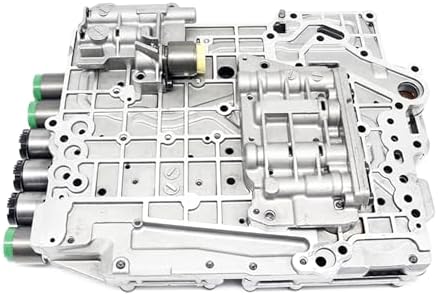

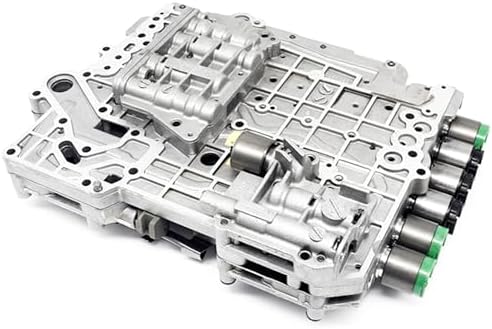

A hard or flaring 1-2 shift, a shudder at light throttle around 45 mph, or a car that hesitates before dropping into gear from cold are the classic complaints on the ZF 5HP19FL used behind the front-wheel-drive Audi and VW 01V five-speed. This valve body comes complete with all seven OE-numbered solenoids already fitted, leak-tested, and pressure-tested, so there is nothing left to transfer from your old unit before it goes back in the car.

What the valve body does in the 01V

The 5HP19FL is ZF's five-speed automatic built for the transverse, front-wheel-drive 01V transmission code, separate from the longitudinal 5HP19 used behind BMW inline-sixes and from the 01J CVT that shares some outward casing dimensions. Inside the 01V, the valve body is the single oil-passage casting that routes line pressure to every clutch pack and band, and it carries the solenoid pack — three green solenoids (0501 316 463), three black solenoids (0501 210 019), and one yellow solenoid (0501 210 725) in this listing — that the transmission control unit pulses to time each shift and manage torque converter lockup.

Symptoms that point to the valve body

• Hard or flaring 1-2 upshift
• Torque converter clutch shudder or surge at light cruise, often noticeable around 45 mph
• Delayed engagement into drive when the fluid is cold
• Slipping or a momentary flare under part throttle

Worn solenoid windings and scored bores around the separator plate are the usual cause, which is why swapping a single replacement solenoid into an otherwise worn body tends to help for only a few thousand miles before the symptom returns.

How to confirm it before you buy

Pull codes first and rule out fluid condition — a body that has run low or on the wrong fluid spec can mimic solenoid failure. ZF's own TASC Force documentation on this transmission family ties TCC surge, overheating, and apply/release problems to bore wear at the TCC apply valve specifically, which lines up with the light-throttle shudder most 01V owners report. See our valve body cleaning and inspection guide for the bench checks that separate a valve body problem from a tired torque converter.

Fitment

This is the single oil-passage 5HP19FL built for the FWD 01V transmission code, covering the 1996-2001 Audi A4 B5 (1.8T and 2.8L V6), 1997-2004 Audi A6 C5 (2.4L, 2.8L and 3.0L), and 1998-2005 VW Passat B5/B5.5 (1.8T and 2.8L). It is not the quattro/4Motion 5HP19, the BMW inline-six 5HP19, or the 01J CVT, even though some of those share casing dimensions with the 01V. Check the transmission code stamped on your case for "01V" and match your solenoid connector pattern before ordering.

Install notes

The transmission has to come out to drop the pan and reach the internal harness connectors. Unplug the harness at the solenoid connectors, remove the valve body bolts working from the outside in on a spiral pattern, and lower the body straight down so the check balls and separator plate stay seated. Install the new body dry, torque the bolts to spec in the reverse pattern so the case does not warp, and replace the filter and pan gasket at the same time. Refill with the correct ATF and run a TCU adaptation with VCDS or OBDeleven before judging shift quality — see our adaptive relearn guide for why skipping this step is the single most common reason a good valve body still shifts badly on the first drive. If your old solenoids tested weak before you found this listing, keep a spare 5HP19 solenoid kit on hand in case one in the new assembly needs swapping down the road.
