AS69RC Transmission Service Kit 10qt ATF + Filter RAM 6.7L

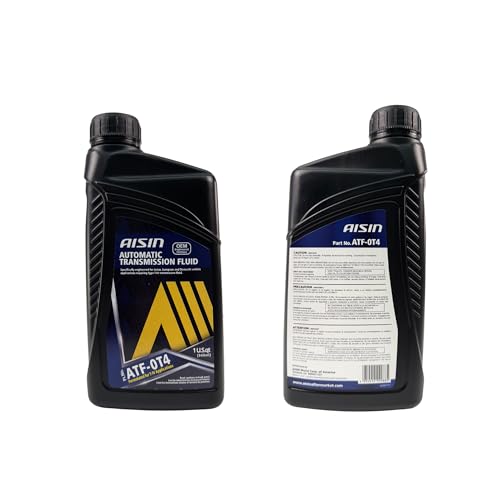

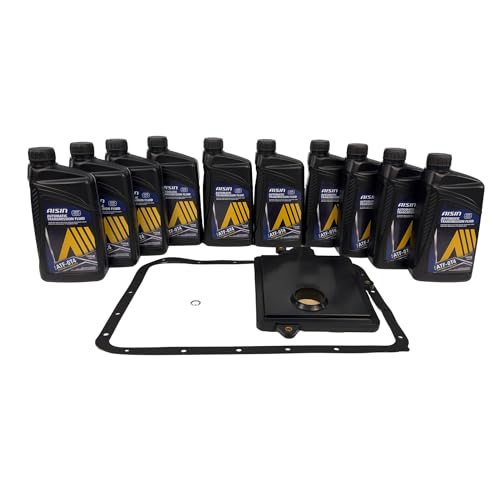

The AISIN AS69RC is the heavy-duty six-speed automatic bolted behind the 6.7L Cummins in RAM 3500, 4500 and 5500 trucks from 2013 through 2024. This kit covers a full fluid-and-filter service in one box: ten quarts of AISIN-spec ATF (Type T-IV), the transmission filter with its O-ring, a pan gasket, and a fresh drain plug sealing washer. The filter replaces Mopar 68224232AA.

Under the truck, drop the pan, pull the old filter and O-ring, and clean the pan and magnet before you start. Set the new filter, lay the supplied gasket dry, and torque the pan bolts in a cross pattern. Refill through the fill port, then set the level at operating temperature following the AS69RC fill procedure. Ten quarts covers a pan-drop service with a little margin; a full cooler flush will need more.

These trucks tow and haul for a living, and AS69RC fluid breaks down under sustained heat and load. Servicing it on schedule keeps shift quality crisp and protects the clutch packs from slipping. Dealer service on this transmission runs well past what the parts cost, so doing it yourself with the correct AISIN fluid is where the money stays in your pocket.
