GM 8.25 IFS Front Differential Master Overhaul Kit

A front diff that hums only when the transfer case is in 4WD, a pinion seal that keeps wetting the front driveshaft, or output seals weeping where the half shafts plug in: on a 1999-and-later Chevy or GMC half-ton 4x4, that is the GM 8.25 IFS front differential asking for a rebuild. This USA Standard Gear ZK GM8.25IFS-B master overhaul kit packages Koyo bearings and races with the seals, shims and hardware to rebuild the center section once instead of chasing one leak at a time.

What the master kit does in a GM 8.25 IFS front

The 8.25 IFS is a frame-mounted center section, not a solid axle. CV half shafts drive the wheels, and on the passenger side a tube and intermediate shaft connect the carrier to the outer shaft. The gears are reverse rotation: the pinion sits above the ring gear centerline so the strong drive side of the teeth carries the load while the front pinion turns the opposite way from the rear. Two tapered pinion bearings, held in preload by a crush sleeve, and two carrier bearings set on shims hold that gear mesh in place. When any of those bearings wear, the pattern moves and the front starts to sing under 4WD load.

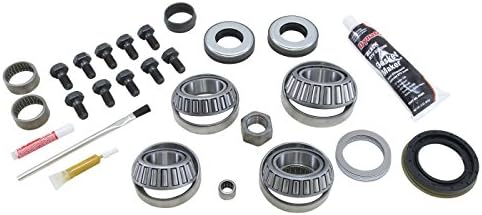

The kit, per its manufacturer description, includes carrier bearings and races, pinion bearings and races, the pinion seal, axle seals, a complete shim kit, ring gear bolts, pinion nut, crush sleeve, thread locker, marking compound with brush, and silicone. The axle seals are the ones where the stub shafts enter the carrier, a common leak point on these trucks.

Symptoms of a worn 8.25 IFS

• Howl or whine from under the cab that appears in 4WD High or Low and goes away in 2WD
• Noise that changes between throttle and coast in 4WD but not when you steer
• Gear oil on the front pinion flange and driveshaft
• Wet seams where the half shafts or the intermediate tube meet the carrier
• Metal paste on the fill plug or a dark, gritty drain
• Clunk as the front axle picks up load after the pinion preload has loosened

How to confirm the front diff is the problem

Drive the same stretch in 2WD and 4WD. A noise that only shows up in 4WD points at the front differential; a growl in 2WD that changes when you swing the wheel is usually a hub bearing. Our GM 8.25 IFS problems and rebuild cost guide also covers the axle actuator, which causes most no-4WD complaints and is not fixed by bearings. With the front driveshaft off, rock the pinion flange for play and turn it by hand for roughness. Before you tear down, mount a dial indicator and record backlash so you have a target.

Fitment

This is the 1999-and-newer version of the 8.25 IFS kit. Application data for the part number covers the 4WD Silverado 1500 and Sierra 1500, Tahoe, Suburban 1500, Yukon and Yukon XL 1500, Avalanche and Escalade, starting in 1999 and running into the 2010s; our listing covers 1999-2013 trucks. The 1988-1998 GMT400 K1500 also used an 8.25 IFS, but it takes the earlier kit, not this one. Gaskets for 2007-and-newer housings are not in the box, so plan on sealing those with the supplied silicone. This kit is not for the TrailBlazer, Envoy, Colorado or Canyon, which use the smaller 7.25 IFS, and not for the 9.25 IFS under 2500 and 3500 trucks. Measure the ring gear if you are not sure, or send us the year and VIN. More parts are in our rebuild kits section.

Install notes

• Drain the front, remove the half shafts and intermediate tube, and drop the carrier from the frame brackets.
• Pull the carrier bearings with a puller set such as the OTC 4520 and keep the old shim stacks labeled by side.
• Install the pinion with a new crush sleeve and nut, tightening in small steps and checking rotating torque against the service manual figure.
• Run the marking compound and read the pattern on both sides of the teeth before setting final backlash, and lock the new ring gear bolts with the supplied thread locker.
• Regearing at the same time? The front ratio must match the rear exactly. See the 8.25 IFS 4.30 reverse-rotation ring and pinion, or the Dorman bearing kit if you only need bearings.
• Refill with the gear oil the owner's manual lists for the front axle and check level at the fill plug.

Does this kit fit a 1998 K1500 front diff?

No. The 1988-1998 GMT400 trucks use an earlier 8.25 IFS that takes a different kit. This part number is for 1999 and newer.

Will it fit my TrailBlazer or Envoy?

No. The 2002-2009 TrailBlazer and Envoy use the smaller 7.25 IFS front differential. Measure the ring gear or check with us before ordering.

Does it come with a cover gasket for my 2010 Silverado?

Gaskets for 2007 and newer housings are not included. Use the supplied silicone to seal the housing.

Can I reuse my factory gears?

Yes, if the teeth are not pitted or chipped. Record backlash and the pattern before teardown and rebuild to the same pattern with the new bearings.

Why is my 4WD light on but the front does not pull?

That is usually the front axle actuator or shift collar, not worn bearings. Fix the engagement system first; this kit is for noise and leaks from the center section.
