Holds the transmission, exhaust, or driveline steady under a raised vehicle; 1,500 lb capacity with a self-locking Acme screw that keeps its height under load.

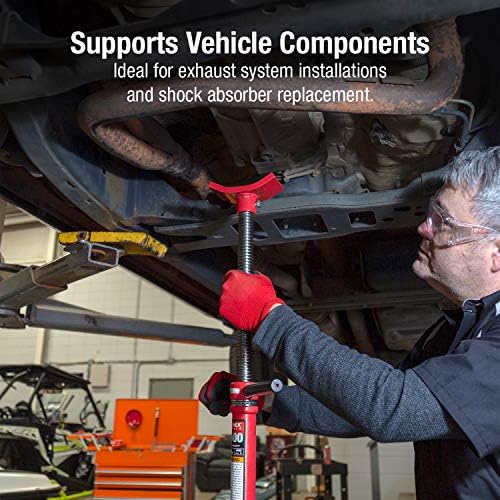

An underhoist support stand for holding heavy components in place while a vehicle is up on a two-post lift. Drop a transmission crossmember and you need a third hand under the tailshaft so the trans does not swing down on the mount; set this stand under it, spin the saddle up to the pan, and it carries the weight while you pull the bolts. Same story when you unhook an exhaust or unload a control arm.

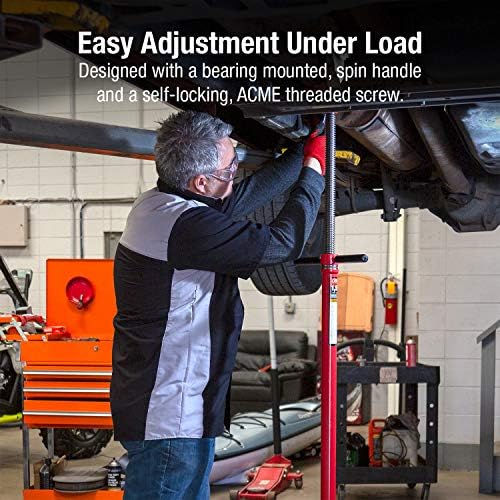

Height is set with a self-locking Acme threaded screw turned by a bearing-mounted spin handle, so it winds up smoothly under load and stays put instead of creeping back down. The saddle is contoured to cradle round and irregular parts, and the 12-inch base gives it a stable footprint without eating up floor space in tight quarters. Capacity is 1,500 lb (3/4 ton) with a maximum lift height of 79 inches, so it reaches up to a car sitting high on the lift.
This is a support stand for components only, not a jack for raising a whole vehicle and not a substitute for the lift's own safety locks. Ships from the USA, handling in 1-2 business days.
| Capacity | 1,500 lb (3/4 ton) |
| Max lift height | 79 in |
| Base diameter | 12 in |
| Adjustment | Self-locking Acme screw, bearing-mounted spin handle |
| Saddle | Contoured, supports most component shapes |
| Material | Steel |
| Model | Sunex 6809A |
| Ships | From the USA |
