Transmission Line Pressure Test Kit 400 PSI On-Road

A line pressure reading is the fastest way to tell a worn pump or a leaking circuit from a bad solenoid, and this kit gives you both a bench reading and a reading while the truck is actually moving. It carries two damped gauges: a 0-400 PSI gauge for automatic transmission line pressure and a 0-100 PSI gauge for engine oil pressure. Both dials are oil-filled so the needle stays readable instead of bouncing while you are driving.

The 72-inch hose is the part that matters for real diagnosis. Thread the correct adapter into the transmission case test port, route the hose out from under the vehicle and up over the cowl or through a window, and tape the gauge where you can see it from the driver's seat. Now you can watch pressure rise with throttle, watch it step at each shift, and watch what it does under load on a grade. A unit that reads correct pressure in park but falls off in third under load is telling you something a bench test never will.

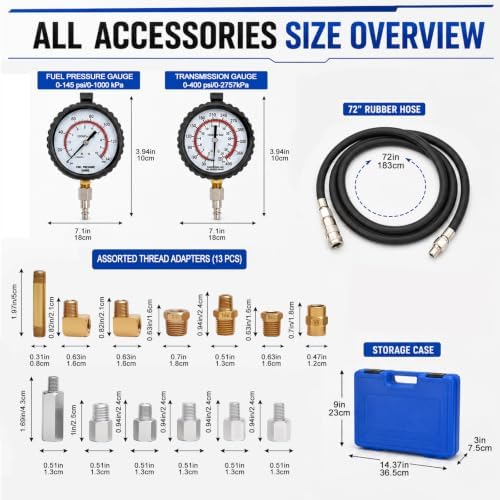

Thirteen brass adapters cover the common test port threads on domestic and import cars, pickups and diesel trucks, so it works on GM 4L60E and 4L80E cases, Ford E4OD/4R100 and 5R110W, and Chrysler 46RE/47RE/48RE line pressure taps as well as engine oil galleries. Typical automatic line pressure runs roughly 55-90 PSI in drive at idle and climbs past 200 PSI at wide open throttle or in reverse, which is why the high gauge needs the 400 PSI range rather than a 100 PSI engine gauge.

Everything drops into a molded case with cut slots, so the adapters do not end up scattered in a drawer. Check the pressure spec in the factory service manual for the unit you are testing before you condemn a pump or a valve body.
