47RE/48RE Solenoid Block Conversion Kit for Dodge 5.9 Cummins

If your 1996-2007 Ram 2500 or 3500 with the 5.9L Cummins pulls away in second, shifts at a different road speed every time, or hangs in gear at a stop light, the problem is usually the governor pressure system, not the clutches. This conversion kit (part number W1422FX) swaps the small factory governor pressure solenoid for a GM-style electronic pressure control solenoid mounted in a machined manifold, so the 47RE or 48RE gets a sturdier, larger valve feeding its shift circuit. It is built for diesel trucks that tow, haul or run more line pressure than stock.

What the governor solenoid does in a 47RE and 48RE

The 47RE and 48RE still shift first through third hydraulically, like the old TorqueFlite. Governor pressure pushes the 1-2 and 2-3 shift valves up, throttle pressure pushes back, and the shift happens when governor pressure wins. There are no spinning governor weights; the PCM makes that pressure electronically. The solenoid is inverse-acting: it takes line pressure in and bleeds it down, so about one amp of average current gives 0 psi and zero current gives maximum governor pressure. A pressure sensor (the transducer) reports what the solenoid actually produced, and the PCM trims its duty cycle to match. Around 40 mph the PCM turns the solenoid off and lets full pressure hold the shift valves up, which is why a weak governor system ruins low-speed shifting while the truck cruises fine on the highway.

The conversion keeps that same control strategy. The PCM still drives the solenoid; you are only replacing the factory solenoid and its housing with a heavier GM-type unit on a dedicated manifold.

Symptoms this kit addresses

• Second-gear starts or soggy, early upshifts when governor pressure is too high
• Late, high-rpm 1-2 and 2-3 shifts at light throttle when pressure lags road speed
• No downshift coming to a stop; the truck pulls away from the light in second or third
• Shift points that wander from cold to hot, or a repeat factory solenoid failure on a hard-working tow rig
• Governor pressure codes such as P1756 (pressure not equal to target) or P1757 (above 3 psi at 0 mph) after wiring and sensor checks pass

How to confirm before you buy

Do not buy a solenoid for a sensor problem. Chrysler's own tech tip says jerky shifts with P1762 are usually the governor pressure transducer or a chafed harness near the solenoid pack, not the solenoid. With a scan tool, compare Governor Pressure Desired against Governor Pressure Actual, then put a 0-100 psi gauge on the governor port: if the gauge agrees with a high actual reading at a stop, the solenoid is not bleeding off and this kit is the fix. Also confirm the output speed sensor works, because the PCM will not run the governor solenoid without that signal. Our governor pressure solenoid symptoms and test guide walks through the factory gauge test, and the valve body testing guide covers worn governor plug bores that mimic a bad solenoid.

Fitment

Listed for 1996-2007 Dodge Ram 2500 and 3500 trucks with the 5.9L Cummins, covering the 47RE (1996-2002) and 48RE (2003-2007), and the manufacturer also lists the 1994-up A500/42RE, 1996-up A518/46RE and A618 units. All of these use the same governor body arrangement under the valve body. Before ordering, pull the pan and confirm your unit has the electronic governor solenoid and sensor bolted to the valve body. If you are unsure, send us your year and VIN and we will check it. Browse the full 46RE, 47RE and 48RE parts collection for everything else in this family.

Install notes

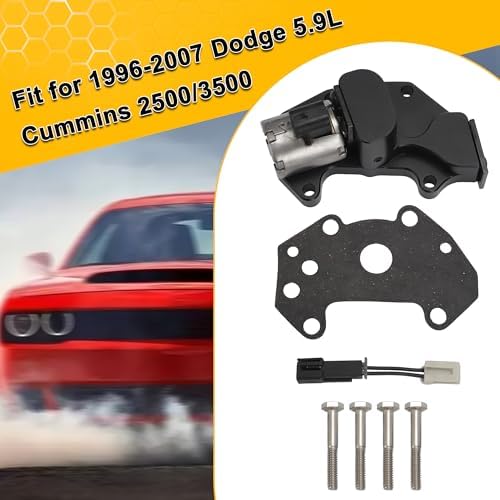

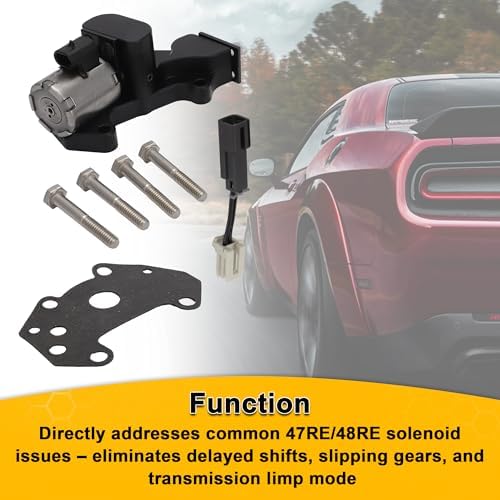

• The kit includes the manifold with GM-style solenoid, a manifold gasket, four mounting bolts and an adapter pigtail that plugs the GM solenoid into the factory harness. No pressure sensor is included, so use a known-good transducer.
• Drain and drop the pan, remove the filter, unplug the governor connector and unbolt the factory solenoid housing from the valve body. Install the new gasket dry and torque the bolts evenly so the manifold seats flat.
• Inspect the harness routing near the solenoid pack; a pinched or rubbing harness causes the same codes the kit is meant to cure.
• Refill with ATF+4 only, check level hot in neutral, clear codes and drive through several complete stops so the PCM relearns the sensor zero.
• If you also raise line pressure, keep it within the transducer's roughly 100 psi range or the PCM can set P1763. A fresh filter, sensor and service kit and a heavy-duty band anchor and strut are smart adds on a towing truck that is already apart.

Will this fit my 2005 Ram 2500 with the 48RE?

Yes. The kit is listed for 1996-2007 Ram 2500 and 3500 5.9L Cummins trucks, which covers both the 47RE and the 48RE. Confirm the electronic governor solenoid is on your valve body, or send us your year and VIN.

Do I need to reprogram the PCM?

No tuning is required. The factory PCM still controls the solenoid. Clear codes after the install and drive through several stops so it relearns the governor pressure sensor zero.

Does the kit include the governor pressure sensor?

No. It includes the manifold with solenoid, gasket, four bolts and an adapter pigtail. Reuse a known-good transducer or replace it if it has set P1762 or P1763.

Will it fix my second-gear starts?

If governor pressure is stuck high at a stop because the solenoid is not bleeding off, yes. Verify with a gauge on the governor port first; worn valve body governor plug bores and a bad output speed sensor cause similar complaints.

What fluid should I use afterward?

ATF+4. Check the level hot in neutral after the install.
