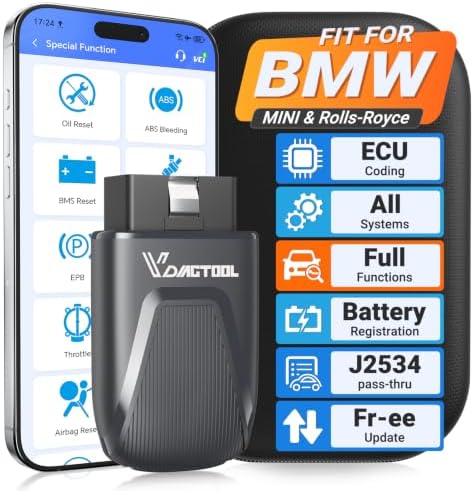

VDIAGTOOL D503 BMW MINI Bidirectional Scan Tool

The D503 is a BMW-family tool, not a generic code reader. It is a Bluetooth 5.2 OBD2 interface that pairs to an Android 9.0+ or iOS 10.0+ phone and then talks to every module on the car - DME/DDE engine, EGS transmission, ABS/DSC, SRS airbag, EPB, TPMS, HVAC, FRM body control and ADAS. BMW, MINI and Rolls-Royce coverage is unlocked out of the box with no subscription and lifetime free updates. Other makes are supported for generic OBD2 but full-system access on them requires a separate paid activation from VDIAGTOOL.

For gearbox work the function that matters is Transmission Adaptation. After a valve body, mechatronic sleeve or fluid service on a ZF 6HP or 8HP, the EGS is still running the old clutch fill values and the car shifts hard or flares until the adaptations are cleared and relearned. The D503 resets them from the driver seat. You also get manufacturer-specific EGS fault codes that a generic scanner will not pull, plus live data in 8 simultaneous graphed PIDs - gear commanded versus gear actual, ATF temperature, line pressure and slip - which is how you tell a mechatronic solenoid fault from a worn clutch pack before the pan comes off.

Bi-directional control covers 10,000+ active tests, so you can command cooling fans, fuel pumps, window motors, wipers, sunroof and mirrors directly and find out whether the actuator is dead or the circuit feeding it is. The reset menu runs 36+ services: EPB service mode for rear pad replacement, BMS battery registration (including dual-battery cars), oil service reset, SAS steering angle calibration after an alignment, ABS bleeding, throttle relearn, injector coding, crankshaft sensor relearn, headlight calibration and airbag reset.

It supports CAN FD and FCA AutoAuth for late-model buses, and the hardware is a SAE J2534 pass-thru interface for BMW, MINI and Rolls-Royce ECU programming. Note that J2534 work requires OEM factory software bought separately from the manufacturer - it is not included, and lifetime J2534 activation across other brands is a separate one-time fee. Working Bluetooth range is about 33 feet, and the unit is powered entirely from the OBD2 port.
