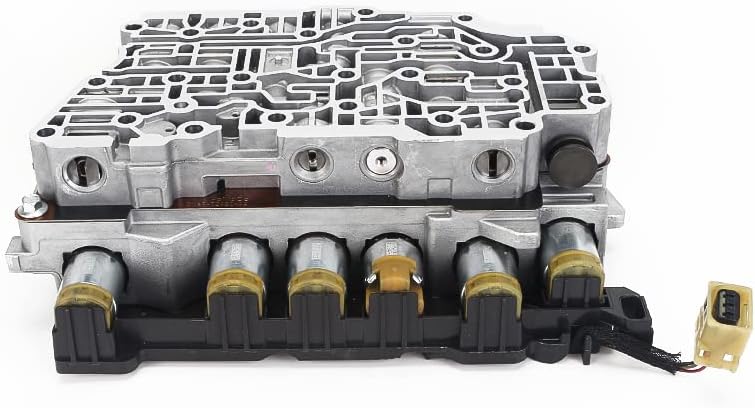

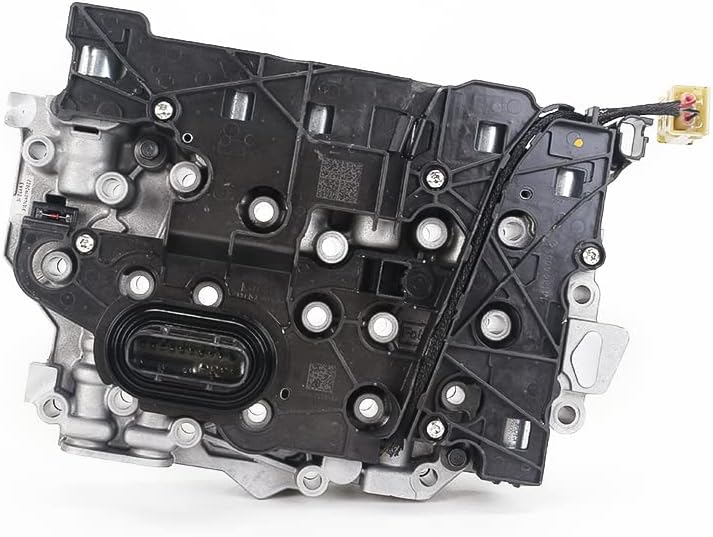

Complete 6F35 valve body with the solenoid pack and harness installed, for Ford Escape and Fusion units with harsh or delayed shifts.
If your early 6F35-equipped Escape, Fusion, Mazda Tribute, Mercury Mariner or Mercury Milan bangs into second gear, hesitates a beat too long after you drop it into Drive, or shudders at a steady 40 mph, the valve body is almost always the reason. This listing is the complete assembly for the first-generation 6F35 - 2008-2011 Escape (2.0L, 2.3L, 2.5L, 3.0L), 2009-2011 Fusion (2.5L, 3.0L), 2008-2011 Mazda Tribute, and 2009-2011 Mercury Mariner and Milan - with the shift solenoids and the internal wiring harness already bolted on and wired, so it drops in as one unit instead of a bare casting you have to dress with your old solenoid pack.
The 6F35 is a six-speed, electronically controlled transaxle, and the valve body is both its hydraulic routing center and the mounting point for the solenoids the TCM uses to time every shift. Line pressure moves through a set of aluminum bores and spool valves to apply each clutch, while the solenoid pack translates the computer's commands into that hydraulic movement. On the early 6F35, those two parts wear out together: the bores go oval from years of fluid passing through them, and the solenoid pack silts up with clutch material from the same fluid, so pressure control degrades from both ends at once.
Pull codes before you buy. Solenoid performance and pressure control faults in the P0745-P0770 and P0960-P0966 ranges point straight at this assembly, and once the bores are worn, fresh fluid and a new filter will not make the codes go away for long. Our Ford 6F35 transmission problems guide covers the full failure pattern on this transaxle, including how to tell a valve body fault from the 3-5-R clutch wear that also plagues this unit, before you spend money on the wrong part.
This assembly is built for the early 6F35 only - confirm your transmission is a 6F35 and not the larger 6F50 or 6F55 used in Edge, Explorer, Flex and Taurus, which take a different valve body entirely. Within that window it fits 2008-2011 Escape, 2009-2011 Fusion, 2008-2011 Mazda Tribute, and 2009-2011 Mercury Mariner and Milan. If your 6F35 is a 2015 or newer Escape, Fusion, Edge, Explorer or Taurus with the later CV6Z-7G391-A casting, the 6F35 valve body with solenoids CV6Z-7G391-A is the correct listing instead - the two castings are not interchangeable. Pair a worn-valve-body diagnosis with a look at the 6F35 clutch module too, since the 3-5-R clutch pack fails around the same mileage and shares some of the same shift complaints.
Drop the fluid, pull the pan and filter, unplug the case connector, and back out the valve body bolts evenly before lowering the old body off the case, keeping the manual valve linked to the detent lever the whole way down. Nothing transfers over - the solenoids and harness are already installed on this unit. Set it in place with the manual valve engaged on the detent pin, run the bolts down evenly, then fit a new filter and pan gasket and refill with Mercon LV. The 6F35 is a fill-to-check-plug transaxle, so set the level with the truck level and the fluid at operating temperature rather than by eye. Pair the job with a fresh 6F35 pump if the old unit also showed low line pressure on a stall test, since a worn pump will mask whether the new valve body actually solved the complaint.
| Transmission | |
| Includes | |
| Fitment | |
| Fluid | |
| Type | |
| Warranty |
Doing this repair right usually means replacing these at the same time. Same transmission, ships together.
No. This listing is built for the 6F35 used in Escape, Fusion, Tribute, Mariner and Milan. The 6F50 and 6F55 used in Edge, Explorer, Flex and Taurus are larger transmissions that take a different valve body.
Yes. The shift solenoid pack and the internal wiring harness are already bolted on and wired at the factory for this assembly, so nothing transfers over from your old unit.
Solenoid performance and pressure control codes in the P0745-P0770 and P0960-P0966 ranges most often trace back to the valve body on an early 6F35, especially once fresh fluid stops clearing them.
Mercon LV. Set the level with the truck level and the fluid at operating temperature using the check plug, since this transaxle is not filled by dipstick.
No. 2015 and newer 6F35 applications use the later CV6Z-7G391-A casting, which is a different listing. Check the casting marks on your old unit or send us the year and vehicle to confirm.
No, it is an aftermarket replacement assembly sold with a six month warranty, not a Ford-branded part.
