220 Degree Articulating Borescope, 6.2mm Probe, 5.3FT

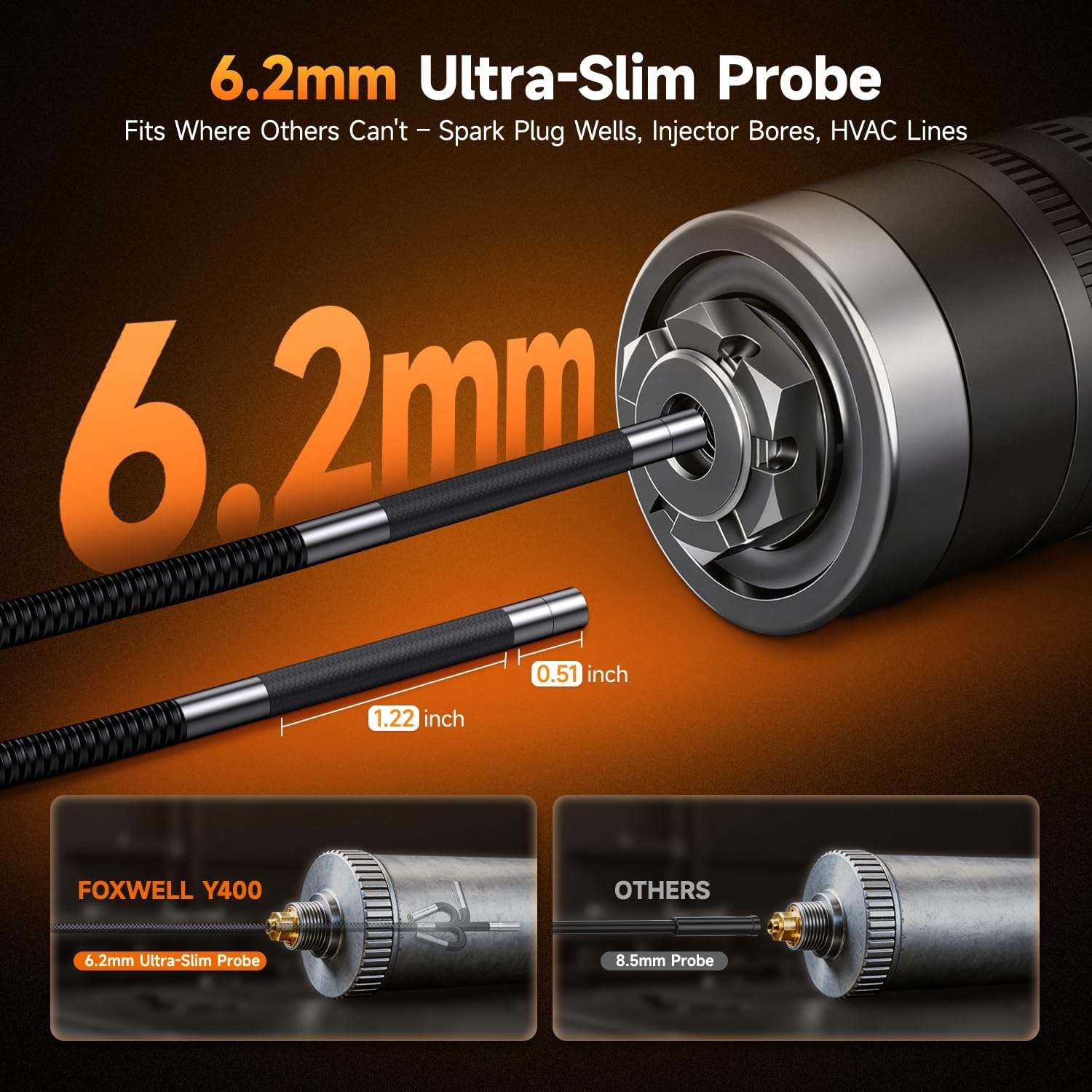

This is the small-probe articulating scope, and the 6.2mm (0.24 in) head is the whole point. Most shop borescopes are 8mm or larger, which means they will not go down a spark plug hole, will not follow a valve body bore, and will not fit past a converter through the inspection cover on a tight bellhousing. This one does. The probe rides on a 5.3-foot semi-rigid cable that holds whatever bend you put in it, so you can push it in and it stays where you set it instead of flopping back.

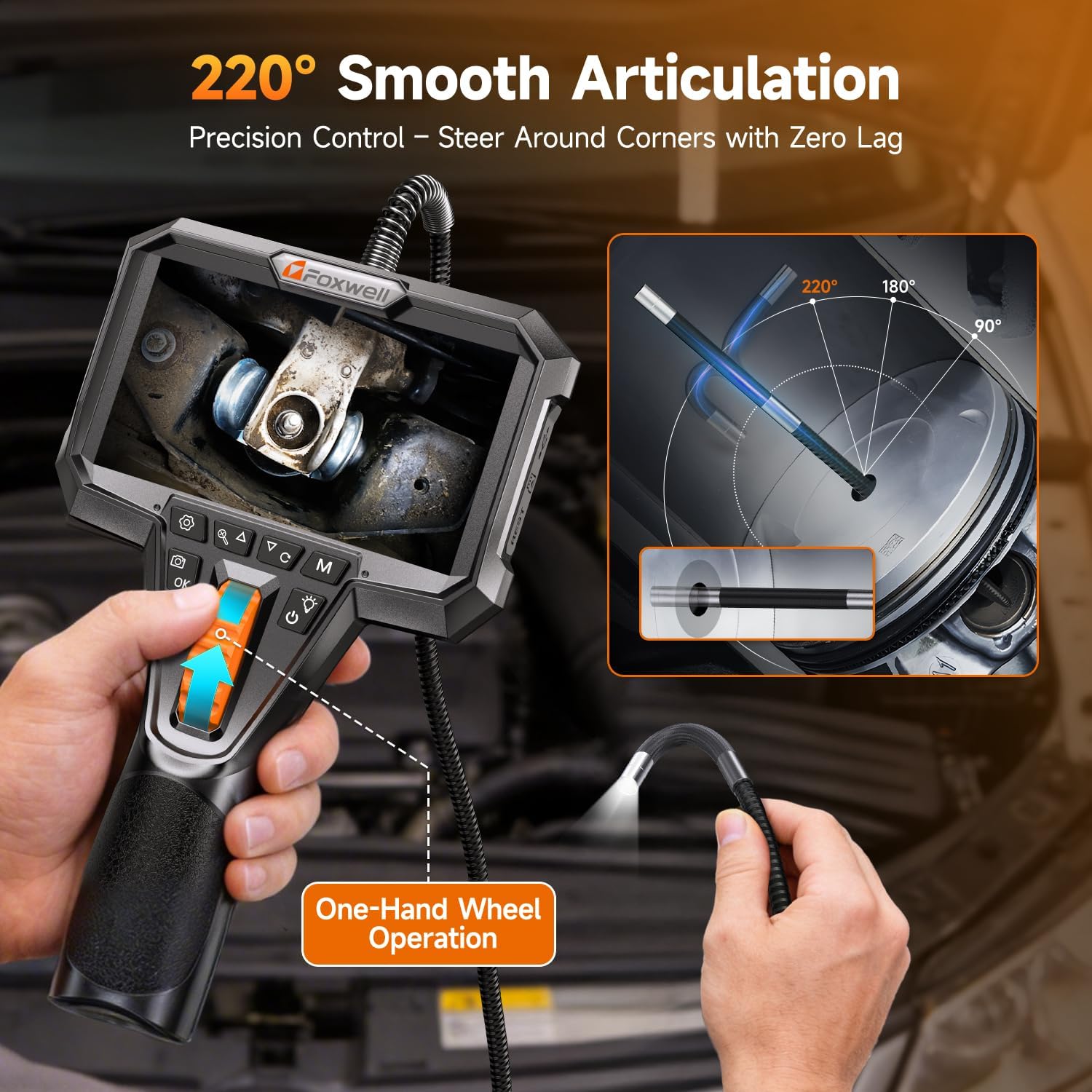

Steering is mechanical, not electronic. A thumb wheel on the handle swings the camera head through 220 degrees of two-way articulation with no lag and no cable drag, so you are steering the tip in real time while you watch the screen. On the bench that means you can walk the tip down a bore, turn the head sideways, and read the valve land or the bushing wall directly instead of inferring damage from a straight-on shot. Six LEDs on the tip run at three brightness levels, which matters inside a dark aluminum case where too much light just blows out the picture on an oily surface. Instant 2x and 4x zoom lets you look at a hairline crack or a scored land without repositioning the probe.

It is a standalone unit. No phone, no app, no Wi-Fi pairing. The HD IPS screen is built into the handle, 32GB of onboard storage holds thousands of stills and dozens of clips, and the battery runs 5 to 7 hours continuous, which covers a full day of teardown documentation. Probe and cable are IP67 rated so ATF, coolant, and solvent will not kill it, and a temperature sensor shuts the unit down at 158F (70C) to protect the probe if you scope a hot engine right after shutdown.

Typical transmission uses: reading flexplate and converter bolts through the inspection cover before deciding to pull the unit, checking a valve body bore for a scored or stuck valve before ordering a correction kit, finding the actual source of a bellhousing leak so you are not replacing a rear main that turned out to be a front pump seal, and photographing a failed part for a warranty claim.
