GM 8.5 Rear Differential Master Overhaul Kit, Timken Bearings

If your Chevy or GMC half-ton, Blazer, Caprice or Monte Carlo has started howling on the highway, clunks when you get on and off the throttle, or has a pinion seal that keeps wetting the driveshaft, the GM 8.5 inch 10-bolt rear is usually due for new bearings and a fresh setup. This Yukon YK GM8.5 master overhaul kit puts every bearing, race, seal, shim and small part for that job in one box, with Timken bearings and races, so the axle can be rebuilt once and set up correctly instead of patched.

What a master overhaul kit does in a GM 8.5 10-bolt

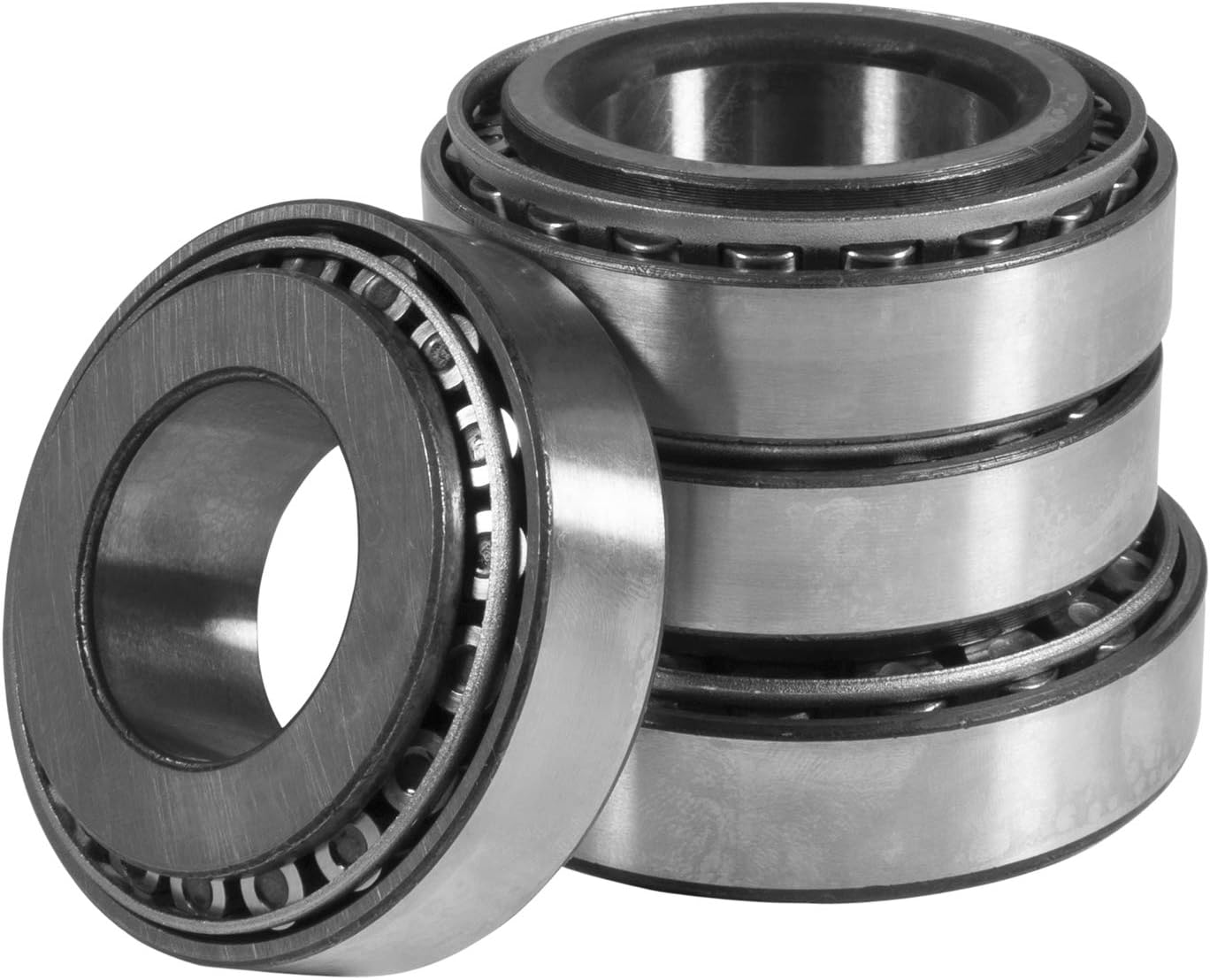

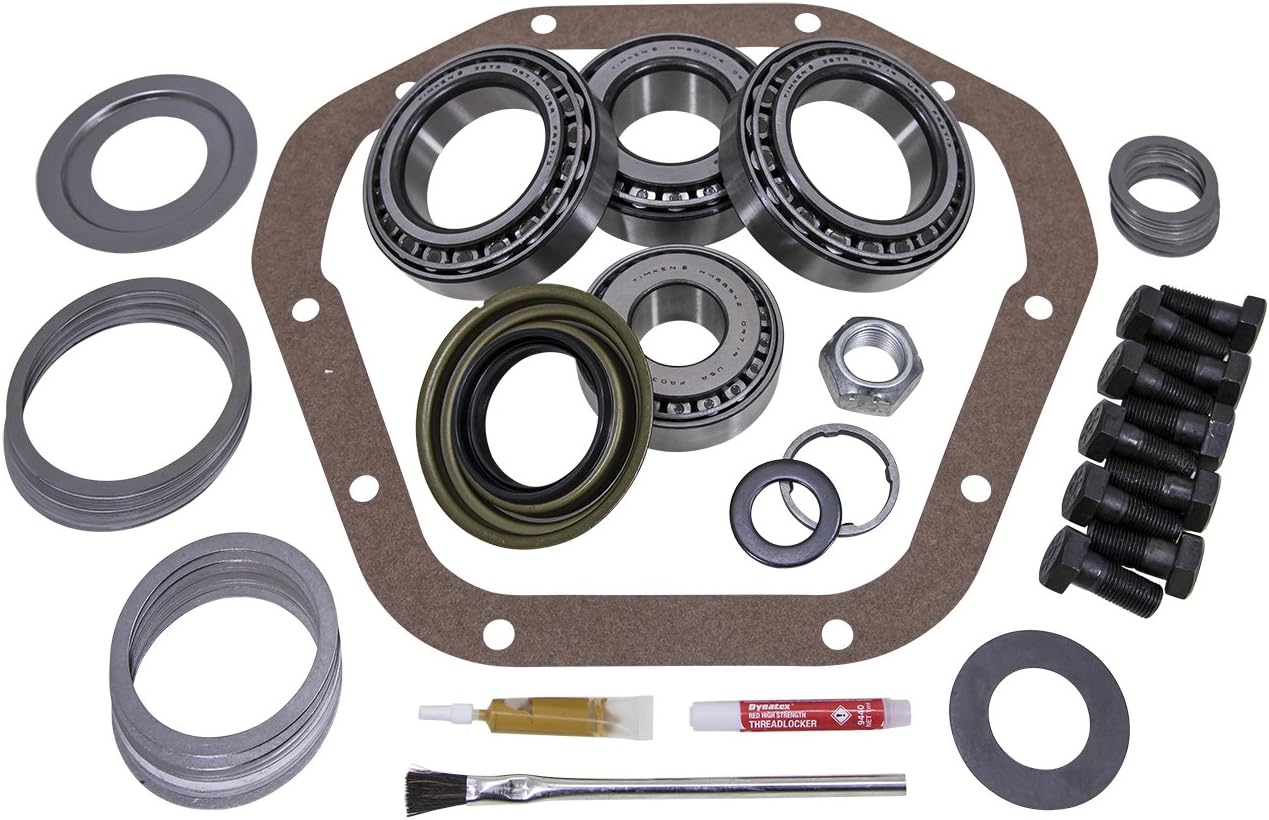

The 8.5 is a C-clip, crush-sleeve rear end. The pinion rides on two tapered bearings, and the crush sleeve between them is what holds pinion bearing preload once the nut is torqued. The carrier rides on two more tapered bearings, and the shims behind them set both carrier preload and ring gear backlash. When any of those bearings wears, the gear mesh moves, the contact pattern walks off the teeth, and the axle starts to whine. This kit replaces all four bearings and their races, the pinion seal, the crush sleeve and pinion nut, and gives you a full shim assortment for pinion depth and carrier position, plus new ring gear bolts, thread locker, marking compound with a brush and a cover gasket.

Symptoms that point to a GM 8.5 rebuild

• Whine that rises and falls with road speed, louder on acceleration or on coast
• A growl or rumble that does not change when you turn, which points to carrier or pinion bearings rather than wheel bearings
• Clunk on throttle tip-in or when shifting into gear, from excessive backlash or a loose pinion
• Gear oil seeping from the pinion seal or the cover gasket
• Metal glitter or chunks on the drain plug or in the bottom of the housing
• Chatter in turns on limited-slip axles, which is the clutch pack, not this kit, but is often found on the same teardown

How to confirm it before buying

Pull the cover and drain the oil into a clean pan so you can see what came out. Check the ring gear for backlash with a dial indicator and rock the pinion yoke up and down; any free play there means the pinion bearings or crush sleeve have let go. Paint a few teeth with marking compound and roll the gear in both directions to read the pattern. A worn pattern with good teeth means bearings and setup; chipped or pitted teeth mean you need gears too, such as the GM 8.5 3.73 ring and pinion set.

Fitment

This kit fits the GM corporate 8.5 inch rear, the 10-bolt that replaced the 8.2 in 1970 production and stayed under GM cars and light trucks into the late 1990s. It does not fit every 10-bolt. The 8.6 inch rear that took over in GM trucks around 1999 to 2000 uses a different bearing and shim setup and needs the GM 8.6 master overhaul kit. An 8.5 running an aftermarket posi or locker with the larger HD carrier bearings needs the YK GM8.5-HD kit, and a 4x4 front 8.5 takes its own front differential kit. Identify the axle by cover shape, ring gear size and axle tube codes rather than by model year, and if you are unsure, send us your year and VIN before ordering. More axle parts are in our rebuild kits section.

Install notes

• Record the old backlash and pattern before teardown so you have a starting point.
• Set pinion depth first with the shims, then install the new crush sleeve and tighten the pinion nut in small steps, checking rotating torque with an inch-pound wrench each time. If you overshoot preload, the sleeve is crushed too far and must be replaced, not backed off.
• Set carrier preload and backlash with the side shims, then confirm the pattern is centered on both the drive and coast sides.
• Use the supplied thread locker on the new ring gear bolts and torque them in a cross pattern to the service manual figure.
• Refill with 75W-90 gear oil; limited-slip units also need the friction modifier the posi calls for.

If you would rather not fight the crush sleeve, the crush sleeve eliminator kit uses solid shims for pinion preload instead. Ring and pinion gears, the carrier and axle bearings are not included in this kit.

Will this kit fit my GM 8.6 inch rear?

No. The 8.6 inch 10-bolt uses a different bearing and shim setup. Order the GM 8.6 master overhaul kit instead, and confirm the axle by cover shape and ring gear size rather than year.

Does the kit include the ring and pinion gears?

No. It has the carrier and pinion bearings and races, pinion seal, shim kit, ring gear bolts, pinion nut, crush sleeve, thread locker, marking compound with brush and a cover gasket. Gears, the carrier and axle bearings are separate.

I have an aftermarket posi in my 8.5. Is this the right kit?

Many aftermarket posi and locker carriers for the 8.5 use larger HD carrier bearings. If yours does, you need the YK GM8.5-HD kit. Check the carrier bearing journal before ordering.

What gear oil goes in after the rebuild?

Use 75W-90 gear oil. If the axle has a clutch-type limited slip, add the friction modifier the unit requires so it does not chatter in turns.

Can I reuse the old crush sleeve or shims?

Do not reuse the crush sleeve; it is a one-time part. The kit includes a full shim assortment so you can set pinion depth and carrier preload for the new bearings rather than relying on the old stack.
