Front driveshaft for 1996-1998 Jeep Grand Cherokee ZJ V8 trucks with the 44RE or 46RE automatic. Replaces Mopar 52098865 and Dorman 938-141.
If your V8 Jeep Grand Cherokee ZJ has developed a vibration that builds with road speed, a clunk from under the front floor when you pull away, or a joint that squeaks and binds, the front driveshaft is a prime suspect. This is a complete front shaft assembly for 1996-1998 Grand Cherokees with the 5.2L and 5.9L V8, replacing Mopar 52098865 and cross-referencing to Dorman 938-141. It arrives assembled with its joints and slip section, so there are no U-joints to press or caps to align. It ships from the USA.
The front shaft carries torque from the front output of the transfer case to the pinion of the front axle. On a V8 ZJ that job is constant. Catalog listings for these trucks pair the 5.2L and 5.9L with the NP249 full-time transfer case, which drives the front axle any time the Jeep moves. That means a worn front shaft is not something you only notice in four-wheel drive: its joints are turning on every commute, and a dry or notchy joint shows up as a buzz or shake at highway speed. The shaft also has to change length as the front suspension moves, which is what the slip section in the tube is for.
With the Jeep safely supported and in Neutral, grab the shaft near each joint and twist and lift. Any click, play or rough spot in a joint means it is worn. Also look for missing balance weights or a dented tube. A clunk can come from inside the transmission or from mounts too, so read our guide to telling transmission whine and clunk apart before you blame the shaft. If the noise changes with gear selection rather than road speed, the problem is more likely in the transmission than the driveline.
Listed fitment is 1996-1998 Jeep Grand Cherokee 4WD with the 5.2L V8, the 1996 5.2L AWD, and the 1998 Grand Cherokee with the 5.9L V8. In those years the 5.2L came with the 44RE automatic and the 1998 5.9L with the 46RE. Six-cylinder ZJs use a different front shaft, and so do 1993-95 V8 trucks, so do not order this for a 4.0L. Installed length runs 29.65 to 32.4 in, with a 2.01 in tube and 0.079 in wall. Before you order, measure your old shaft and compare its end flanges and part tag, or send us your year and VIN. Parts for the 44RE behind the 5.2L are on our 44RE parts page.
Paint-mark the shaft and both flanges before anything comes apart so the phasing goes back the same way. Remove the bolts at the front axle pinion flange, then at the transfer case, collapse the slip section and lower the shaft out. Install the new shaft in the same direction, start all bolts by hand, then torque to the factory spec. Grease the fitting on the slip section if it has not been pre-packed. If the truck has been lifted, check driveline angles, since steep angles wear any new joint quickly. While the Jeep is in the air, look for fluid leaks at the transmission tail and transfer case seals. If your 44RE has also been flaring or starting in second, the 1996-99 governor pressure solenoid set is the usual fix, and a 44RE master rebuild kit covers a full overhaul.
| Replaces | 52098865, 938-141 |
| Listed fitment | 1996-1998 Jeep Grand Cherokee ZJ 5.2L (44RE) 4WD, 1996 5.2L AWD, 1998 5.9L (46RE) 4WD |
| Position | Front |

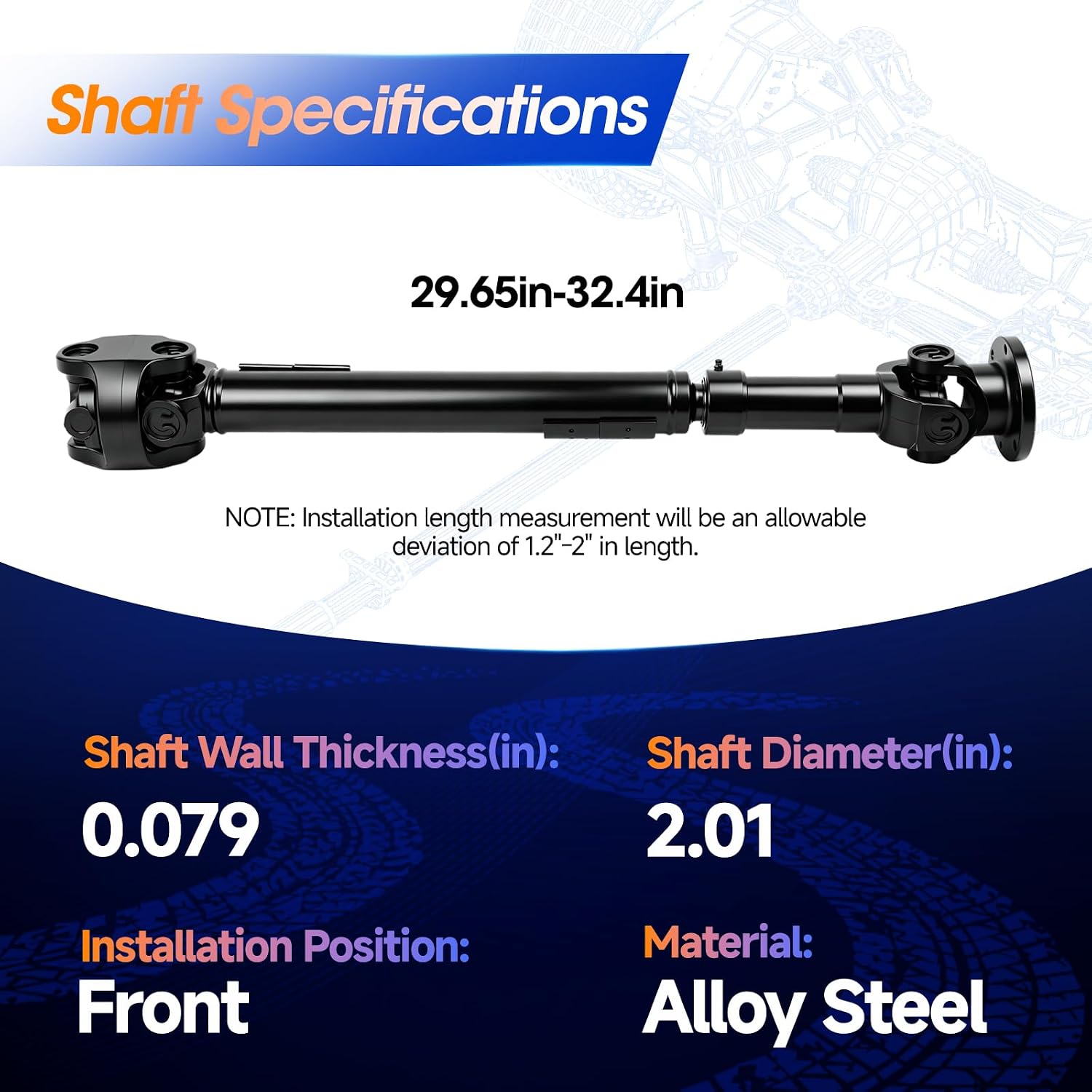

| Installed length | 29.65 - 32.4 in |
| Tube diameter | 2.01 in |
| Wall thickness | 0.079 in |
| Shipping weight | 21.2 lb |
No. Six-cylinder ZJs use a different front shaft. This one is listed only for the 1996-1998 5.2L V8 trucks and the 1998 5.9L V8.
It is not listed for those years. Earlier V8 ZJs use a different part number and shaft length. Measure your old shaft and send us your VIN if you are unsure.
No. The shaft comes as a complete assembly with its joints already installed. Reuse the flange bolts only if they are in good shape; replacing worn or rusted hardware is cheap insurance.
V8 ZJs use a full-time transfer case, so the front shaft turns any time the vehicle moves. The joints see the same mileage as the rear shaft.
With basic hand tools and the Jeep safely on stands, most people finish in one to two hours. Mark the flanges first and torque the bolts to factory spec.
