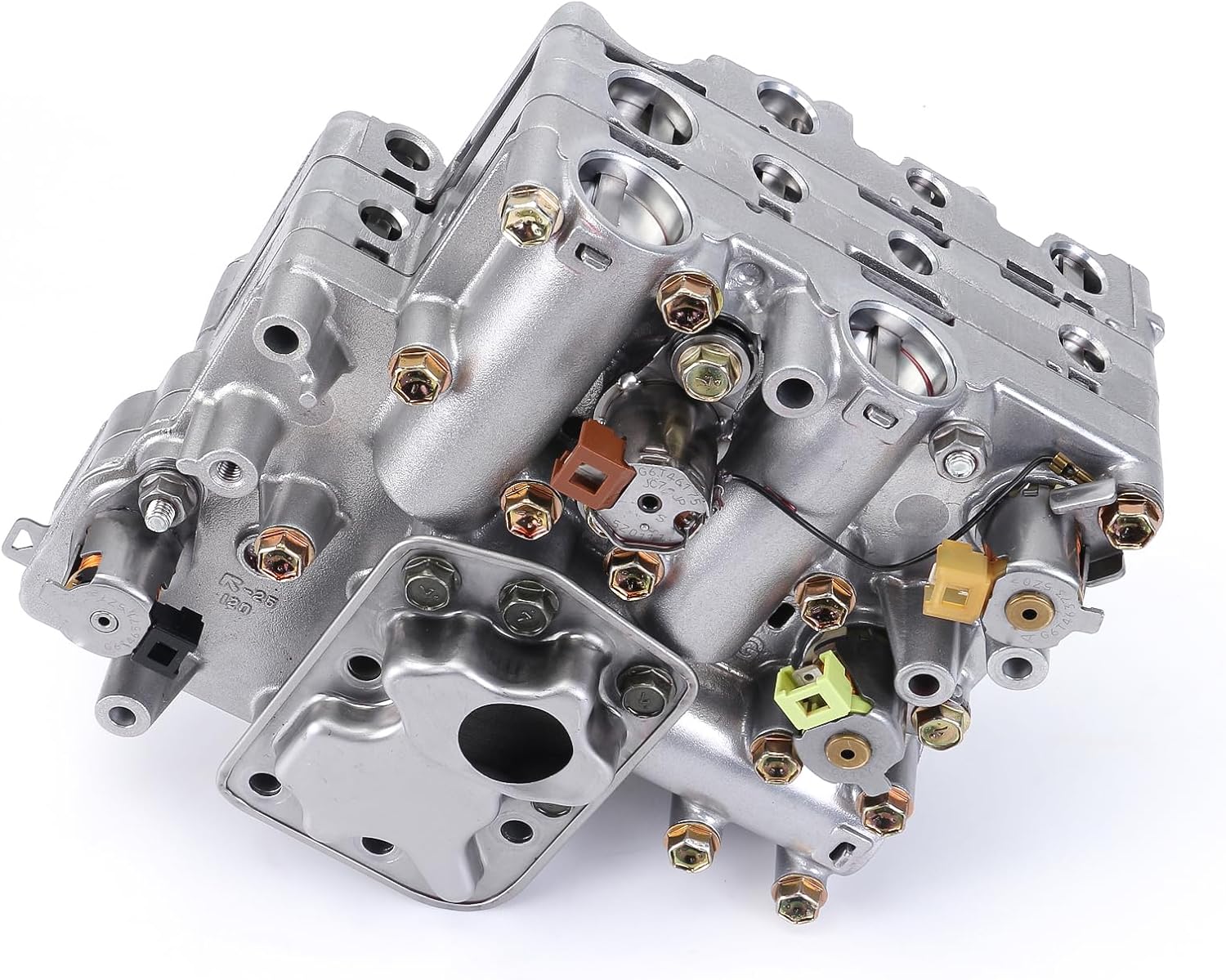

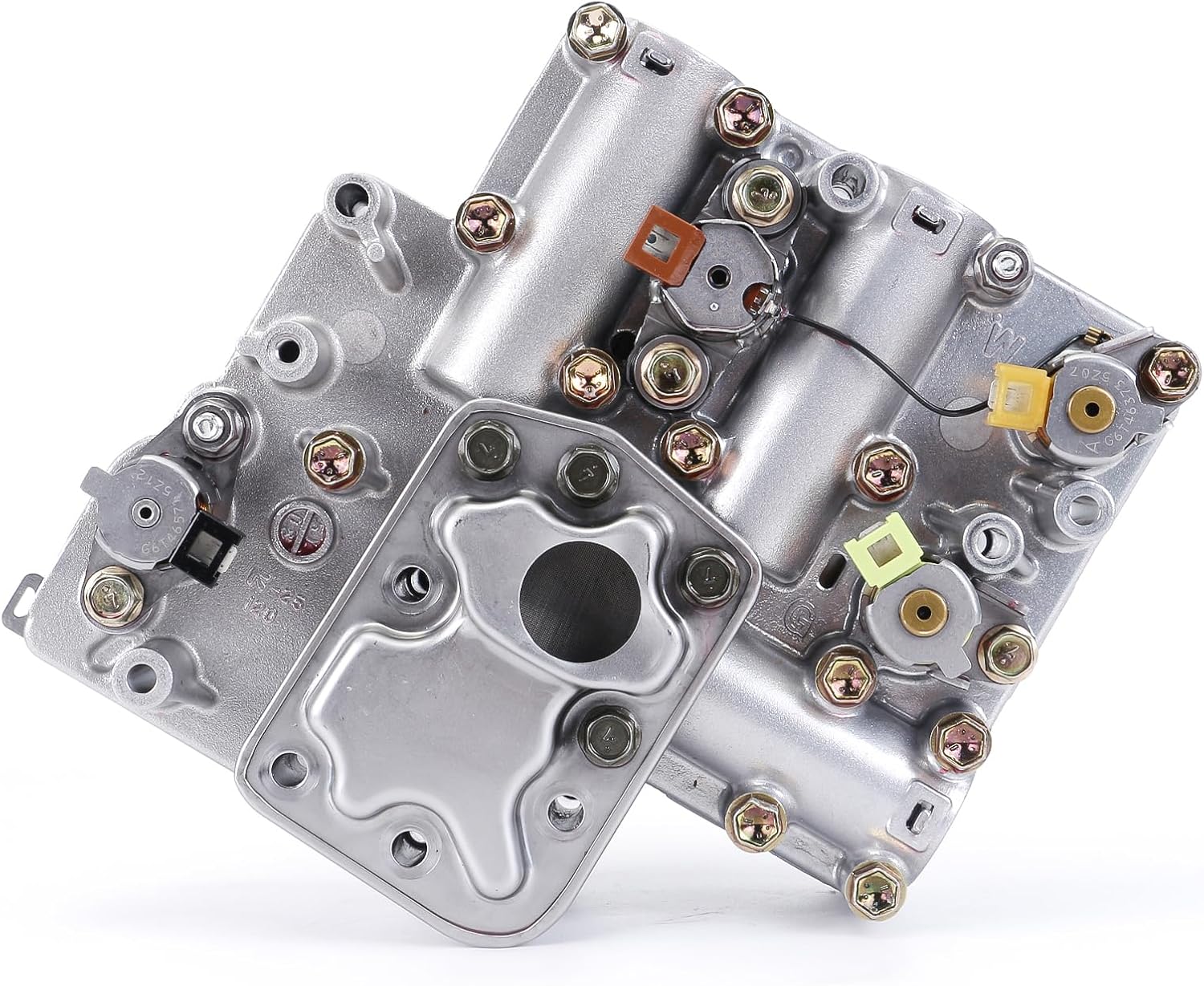

Complete JF405E valve body assembly with solenoids for the Jatco 4-speed used in small Chevrolet, Kia and Suzuki front-wheel-drive cars.
If your small Chevrolet, Kia or Suzuki with a Jatco 4-speed automatic is flaring on the 1-2 shift, hanging in second longer than it should, or has thrown a solenoid performance code, the valve body is the usual point of failure on this transaxle. This is a complete JF405E valve body assembly with the solenoids already mounted, cross-referenced to the earlier JF402E casting that Jatco used before renaming the unit, so you are replacing the worn bores, separator plate and solenoids as one piece rather than chasing a single leak.
On a conventional geared automatic like the JF405E, the valve body is the hydraulic brain of the transaxle. Line pressure from the pump routes through its precision bores and spool valves to apply each clutch pack in sequence, and the shift and pressure-control solenoids mounted on it are what the TCM pulses to time every shift. There is no belt or pulley involved here, unlike a CVT - every shift depends on pressure reaching the right clutch at the right instant through bores that were machined to a tight tolerance when the unit was new.
Aluminum bores wear oval over time at the pressure-control and shift-valve locations, which lets fluid cross-leak between circuits. Fresh fluid will not fix a bore that has already worn oval - the leak path is still there - so the pattern above with clean fluid in the pan is the signal to look at the valve body rather than keep changing fluid.
Pull the pan and check the fluid and the magnet for metal before ordering. Clean fluid with a solenoid or pressure-control code points to the valve body; heavy metal in the pan points to clutch pack or bushing wear further inside the case, and a valve body alone will not fix that. Our valve body cleaning and inspection guide covers how to pull the unit and check the bores and separator plate for scoring before you decide between a new valve body and a full rebuild.
This valve body fits the Jatco 4-speed as used across small front-wheel-drive Chevrolet, Kia and Suzuki models, cross-referenced to the JF405E and its earlier JF402E designation - Chevrolet Spark, Kia Picanto/Morning and the Suzuki Alto/Cervo platform are the most common applications. Jatco used several separator plate variations within this family, so confirm your casting and connector count against the photos and the number stamped on your old unit before ordering rather than going by vehicle name alone.
Drain the fluid and drop the pan, then disconnect the internal harness connector and note how it is routed before you unbolt anything. Remove the valve body bolts working from the outside in rather than corner to corner, so the body comes off flat without binding. Torque the bolts back in the same even pattern, replace the filter and pan gasket at the same time, and refill through the fill port - a fluid filler pump makes that easier on a transaxle without a dipstick tube. Check your owner's manual for the correct ATF specification before refilling, since Jatco paired this transmission with more than one fluid spec depending on the market and model year; a universal ATF/CVT fluid covers many of these applications if your manual does not call out a dedicated spec. Road test, then clear codes and run the adaptive shift relearn with a scan tool so the TCM re-times clutch fill against the new unit rather than the worn one; our adaptive relearn guide covers why that step matters even when the new part is bolted in correctly.
| OEM reference | |
| Unit | |
| Includes | |
| Applications | |
| Condition |
Yes. JF405E is Jatco's later designation for the same 4-speed unit it originally called the JF402E, and this valve body is cross-referenced to both numbers.
A flare or delay specifically on the 1-2 shift, hanging in second longer than normal, or a stored solenoid performance code with clean fluid and no metal in the pan.
Yes, this is a complete assembly with the solenoids already mounted, so you install it as one piece rather than transferring solenoids off your old casting.
The Jatco 4-speed as used in small front-wheel-drive Chevrolet, Kia and Suzuki models, including the Chevrolet Spark, Kia Picanto/Morning and Suzuki Alto/Cervo platform. Confirm your casting and connector count against the photos before ordering, since Jatco ran more than one separator plate variation in this family.
Check your owner's manual first, since Jatco paired this transmission with more than one fluid specification by market and model year. A universal ATF/CVT fluid covers many of these applications if your manual does not call out a specific type.
Yes. After a road test, clear the codes and run the adaptive shift relearn procedure so the TCM re-learns clutch fill timing against the new valve body instead of the worn one it replaced.
