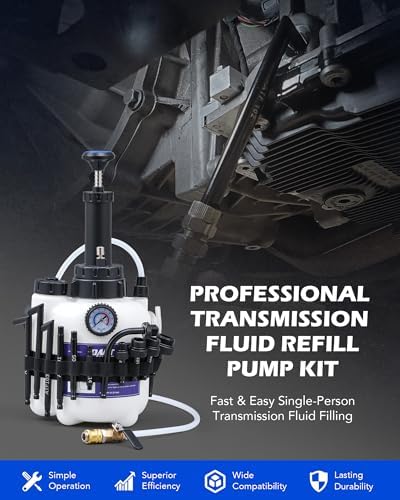

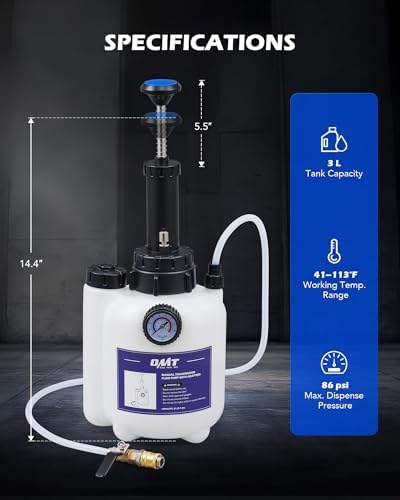

Subaru Outback, Forester, Crosstrek, Legacy and Impreza owners with the Lineartronic CVT have a fill plug on the side of the case and no easy way to get fluid uphill into it. The level is set by adding fluid until it drips back out of that same hole, at a specific temperature, with the engine running. This Orion Motor Tech 3 liter filler is built for that kind of job: pressurize the tank with the hand pump, open the ball valve, and let fluid feed in while the built-in gauge and release valve let you slow down or stop before you overdo it.
What this filler does on a drip-to-level CVT
ATRA's Subaru Lineartronic training material lays out the service. After draining through the Allen drain plug on the main case pan, you remove the fill plug (on the back of the intermediate case on Gen I, just above the pan rail on the left side of the main case on Gen II) and add Subaru CVT fluid until it starts to drip out. Then the engine runs while a scan tool watches fluid temperature climb to 30-40 C (86-104 F), the selector is moved P to R, N to D, D to N and R to P at idle to circulate the fluid, and you add more until it drips again. A squeeze bottle cannot do that well under a car with the engine idling. A pressurized tank on a 42.5 inch hose with a ball valve can, and the gauge tells you when the tank needs another few strokes.
Symptoms tied to a wrong CVT fluid level
- Slipping or a rubber-band feel under load. Transmission Digest notes an underfilled CVT will not shift properly and can draw air into the valve body circuits.
- Incorrect ratio codes and slip from aerated fluid on an overfilled unit, which Transmission Digest also describes.
- Judder or shudder after someone topped it off with the wrong fluid.
- Fluid that is brown or smells burnt at the drain instead of green.
How to confirm before you service it
Read the codes and fluid temperature first, and look at what comes out of the drain. Our Subaru Lineartronic CVT service guide covers the TR580 and TR690 differences, fluid types by year and the known failure patterns. If the car already slips under load, read CVT slipping under load before assuming fresh fluid will fix it; a fluid service will not repair a worn chain or pulley.
Fitment
This is a universal filler. The 12 aluminum-alloy adapters cover common fill-port threads on Ford, BMW, Volkswagen, Audi, Lexus, Toyota, Nissan and other makes, and they ride in a hook-and-loop belt on the tank. Subaru fill plugs vary by generation, so thread the adapter in by hand and make sure it seats before you pressurize; if none fits, match the thread on your fill plug before forcing anything. The tank, nylon hose and fittings are rated for ATF, CVT fluid, gear oil, differential and transfer case fluid. See our CVT collection for parts, or the tools category for larger tanks.
Install notes
- Use the Subaru fluid your VIN calls for; Subaru CVTF-II, 6 quarts is the common choice, but Subaru has changed formulas by year, so confirm before you fill.
- Monitor temperature with a scan tool that reads CVT fluid temperature, such as the Innova 3160RS. ATRA's range is 30-40 C; outside it the drip test lies.
- Fill the 3 liter tank on the bench, pump to pressure, and refill it as needed; a full drain takes more than one tank.
- Replace the fill plug gasket; ATRA lists 36.9 ft-lb for the fill plug.
- The same filler does the Gen I front differential: ATRA calls for GL-5 75W-90 through the vent tube hole until it drips from the check plug, about 1.4-1.5 quarts.
- Clean the tank and hose before switching from gear oil back to CVT fluid.
It is a manual pump, so a full refill takes a number of strokes, but there is no compressor to drag out and nothing to plug in.
