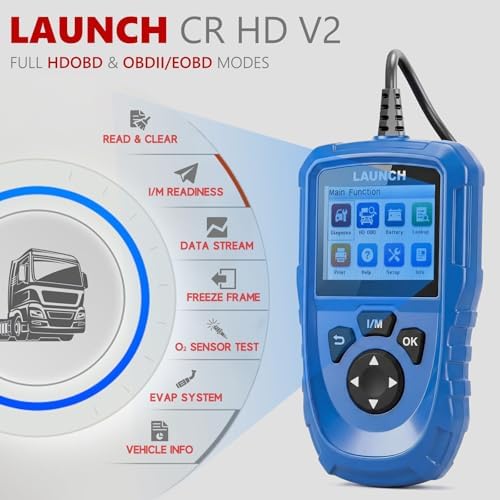

LAUNCH Creader HD V2 Heavy Duty Truck Scanner J1939

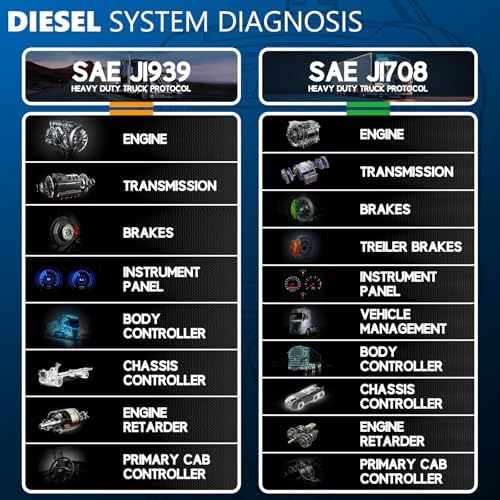

The LAUNCH Creader HD V2 is a corded handheld that plugs into the diagnostic connector on a heavy truck and talks on both of the buses those trucks use: SAE J1939 on CAN-based chassis and J1708/J1587 on the older ones. It reads and clears active and stored fault codes, streams live data with a graphing view, checks I/M readiness, and reads battery voltage straight off the connector. Listed coverage includes Freightliner, PACCAR, International, Volvo, Cummins, Detroit and Caterpillar powered chassis.

Four cables come in the box, which is what makes it usable on a mixed fleet: OBD1 6-pin, OBD1 9-pin, Caterpillar 9-pin, and the standard OBD2 16-pin. That last one matters because the tool also runs the full OBD2/EOBD mode set on light-duty vehicles, so the same box handles the pickup on the lift and the day cab parked outside. Protocol support is J1708, J1939, J1979 and J1850 PWM/VPW.

Two connect modes: automatic search, where it identifies the protocol itself and links up, and manual selection, where you pick the system you want when you already know what you are chasing. On a truck the driveline controllers share the same diagnostic bus as the engine, so codes stored outside the ECM can be pulled here without dragging a laptop out to the yard, though which modules answer depends on how that chassis is built. Software updates are free for the life of the tool; menus are English, French or Spanish.

Practical use: a truck comes in derated with a lamp on and no story from the driver. Plug in, let it auto-search, pull the SPN and FMI with the manufacturer text on screen, and you know inside a minute whether you are looking at an aftertreatment fault, a sensor circuit, or something that needs the truck off the road. Clear the codes after the repair and confirm they stay gone on a road test with live data up.
