Measures bore diameter, taper, and out-of-round to half a thousandth so you catch a worn pump bore or oversize bushing before it goes back together.

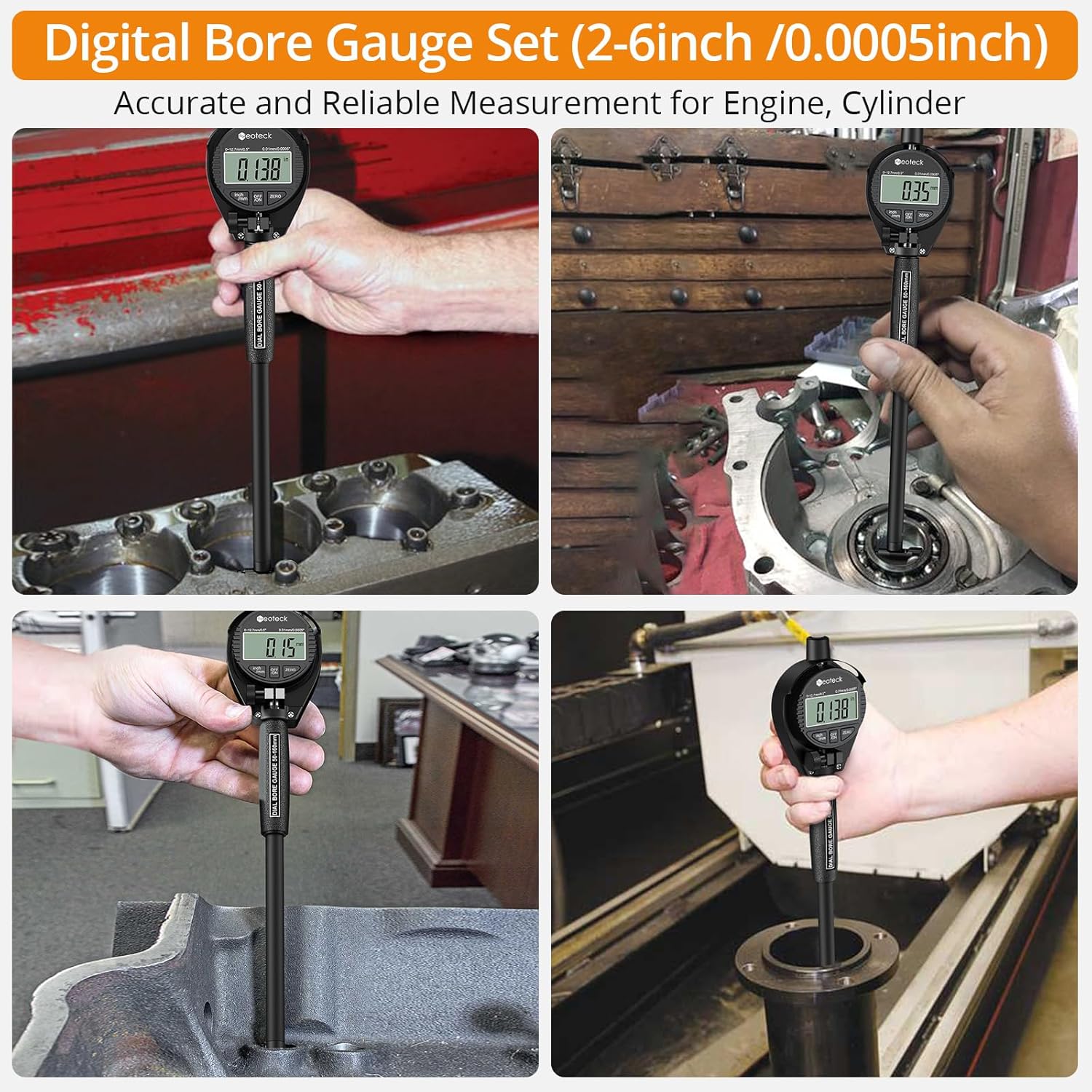

When a rebuild keeps eating a bushing or the line pressure never comes up right, the answer is usually a bore that has worn out of round. A dial bore gauge is how you actually measure it instead of guessing. This Neoteck set reads to 0.0005 inch (0.01 mm) on a digital indicator, so you get a hard number for pump bores, servo bores, bearing seats, and cylinder walls rather than a feel.

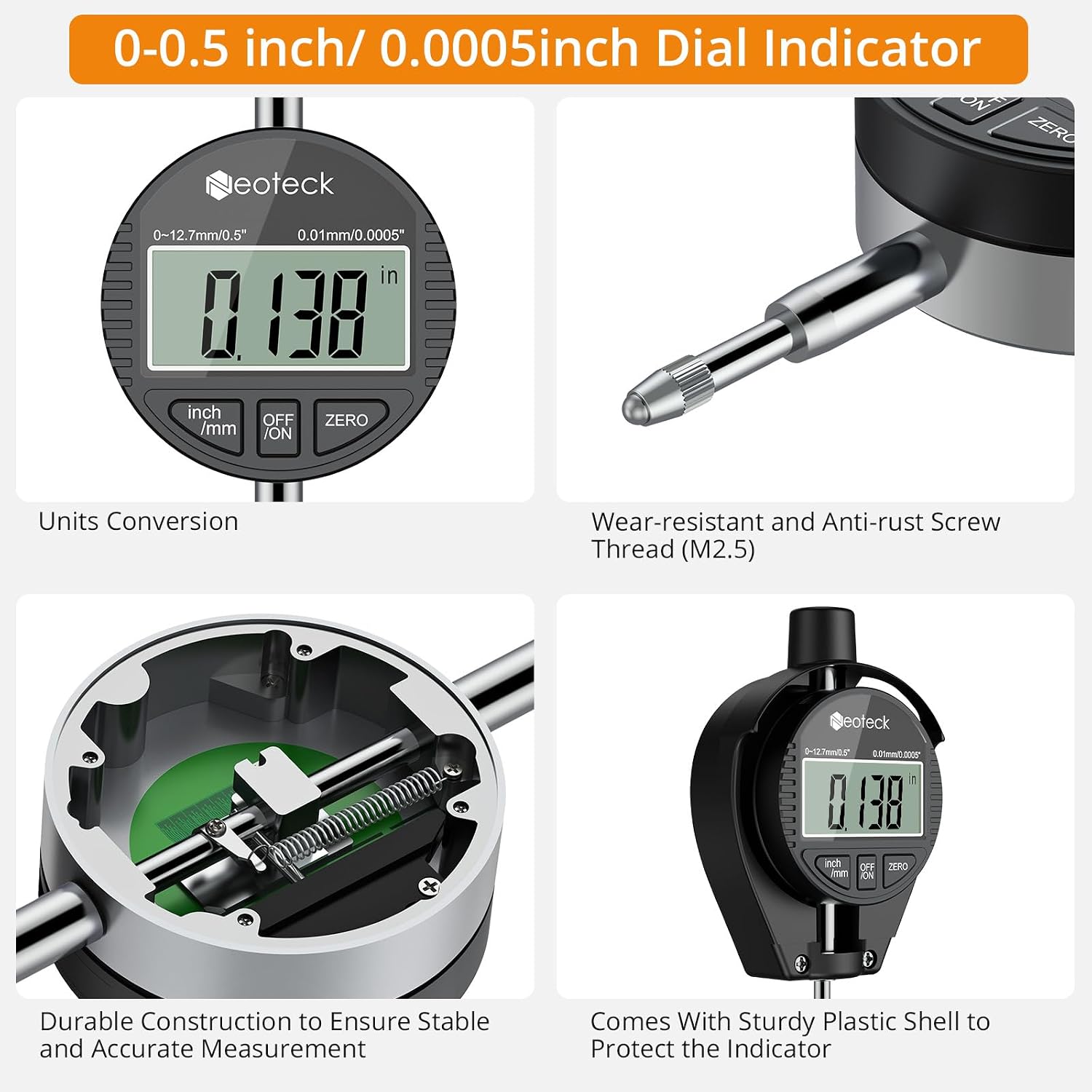

Two-point contact catches the geometry problems a caliper misses, ovality and taper, and the self-centering head means the reading is repeatable from one measurement to the next. The digital head switches between inch and millimeter and holds a value so you can write it down without losing your place. It covers a 2 to 6 inch range (50 to 160 mm) with a set of twelve interchangeable measuring heads and reaches 6 inches deep, and everything drops into a molded case when you are done. Runs on a single LR44 button cell, included. Ships from the USA.
| Measuring range | 2-6 in (50-160 mm) |
| Resolution | 0.0005 in (0.01 mm) |
| Measuring depth | 6 in (150 mm) |
| Heads included | 12 (50-105 mm) |
| Readout | Digital, inch/mm, data hold |
| Ships from | USA |
