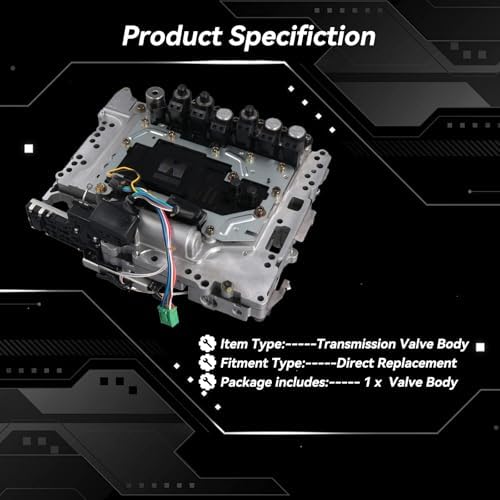

Complete RE5R05A valve body with the TCM and all seven solenoids fitted, replacing Jatco 31040-90X10 on Nissan Titan, Armada and Xterra.
A Nissan Titan, Armada or Infiniti model running the Jatco RE5R05A that is stuck in third gear, hunting between the 1-2 or 2-3 shift, or throwing a repeat P0745, P0750, P0755 or P0760 pressure-control code is usually dealing with a solenoid or TCM fault rather than worn clutches. This assembly ships as one complete unit - valve body, Transmission Control Module and all seven solenoids already installed and plugged in - so it drops in as a single part instead of a bare casting you have to populate yourself.
The RE5R05A integrates its shift and pressure-control solenoids directly onto the valve body, and on this application Nissan mounted the TCM to the same assembly rather than running it as a separate module elsewhere in the vehicle. That means a fault in any one solenoid, or in the TCM itself, usually calls for pulling the entire valve body anyway to get at it. This unit replaces Jatco part number 31040-90X10 and Bosch 0260550002, and it interchanges with 026055002 and 3261099309, so it is a direct swap for the complete factory assembly rather than a partial repair.
This assembly's TCM is not a universal fit. It does not cover units stamped EEF, EDV, ECW, 05A, 002 (EEG), ECX, 989A, 959E, 968D, 992E, 994D, 914A, 992D, 969A, 914D, HOA, HOD, HOC, 909B, 918C, SOE, 995D, 968C or ETIC95-100N. That code is printed on the label of your original unit and is only visible once the pan is dropped, so pull the pan and read the label before ordering rather than after the part arrives. Our RE5R05A service guide covers how to read the solenoid and TCM identification Nissan and Jatco used across this transmission's production run.

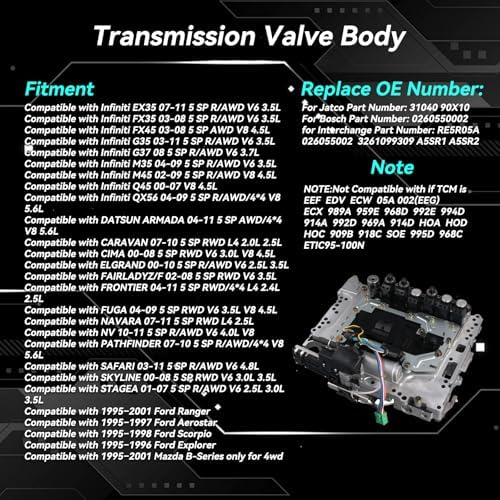

This assembly covers the Nissan Titan and Frontier (2004-2011), Armada (2004-2011), Xterra (2005-2015) and Pathfinder (2007-2010), along with the Infiniti FX35 (2003-2008), G35 (2003-2011), M35 (2004-2009) and QX56 (2004-2009). That range overlaps with the broader 2005-2019 RE5R05A lineup Nissan carried across the Frontier, Pathfinder, Xterra, Titan, Armada and QX56, but the TCM exclusion list above matters more than the model year - two trucks from the same model year can carry different TCM codes depending on options and build date. Confirm the TCM code on the original unit first; our RE5R05A parts hub lists the bare valve body options by year if a full assembly with TCM is not what your vehicle needs.
Drop the pan and filter, unplug the harness connector from the factory assembly, then remove the valve body bolts in the reverse of the factory torque sequence rather than corner to corner. Nothing needs to transfer between the old and new assembly since the TCM and solenoids already come installed. Bolt the new unit in following the same reverse-of-removal sequence, then reinstall the filter with a new pan gasket and refill with genuine Nissan Matic-S ATF, or Matic-J if that is what your shop stocks. Clear the stored codes and run the scan tool's adaptive relearn procedure before road testing - the shift quality on a freshly installed TCM will feel off for the first several miles until the relearn completes. If the original failure included a solenoid code but your TCM code is not on the exclusion list, our RE5R05A solenoid kit for Nissan Titan is worth comparing against this full assembly's price before you commit to replacing everything at once, and reinstall with a fresh filter and pan gasket rather than reusing the old one.
| Replaces | |
| Includes | |
| Condition | |
| Dimensions | |
| Weight | |
| Fitment (Nissan) | |
| Fitment (Infiniti) | |
| Not compatible with TCM codes |
Doing this repair right usually means replacing these at the same time. Same transmission, ships together.
Drop the pan and look at the label on the original valve body/TCM assembly - the code is printed there. You need this before ordering because this assembly does not cover every TCM code.
EEF, EDV, ECW, 05A, 002 (EEG), ECX, 989A, 959E, 968D, 992E, 994D, 914A, 992D, 969A, 914D, HOA, HOD, HOC, 909B, 918C, SOE, 995D, 968C and ETIC95-100N.
Jatco 31040-90X10 and Bosch 0260550002. It interchanges with 026055002 and 3261099309.
Both. It covers the Nissan Titan, Frontier, Armada, Xterra and Pathfinder as well as the Infiniti FX35, G35, M35 and QX56, within the year ranges listed on this page.
No. The TCM and all seven solenoids are already installed on this assembly, so it bolts straight in as one piece.
Clear the stored codes and run the scan tool's adaptive relearn procedure before a normal road test. Shift feel will be off for the first several miles until the relearn completes.
