XTOOL D5S OBD2 Scanner - Engine ABS SRS Transmission

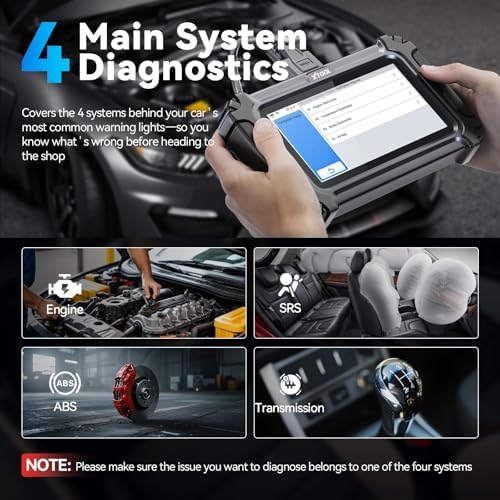

The XTOOL D5S is a full-system diagnostic scanner that covers the four systems a driveline diagnosis actually touches: transmission, engine, ABS, and SRS. It reads and clears trouble codes, shows live data (up to four PID graphs at once), pulls ECU/TCM information, and reads freeze-frame data, so you can chase a rough shift, a slipping gear, or a limp-mode complaint down to the solenoid or pressure fault instead of guessing.

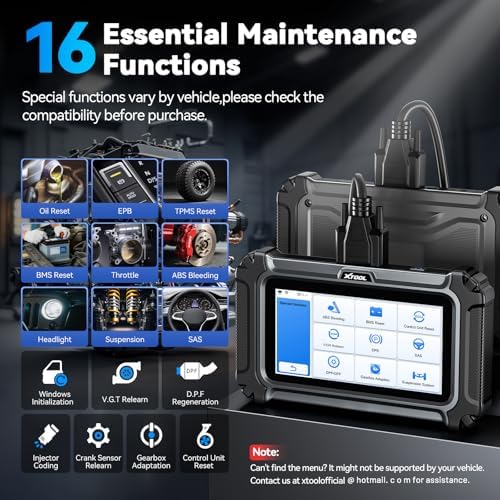

Where it earns its keep over a $50 code reader is the 16 reset/service functions. Gearbox Match (transmission adaption) re-teaches the TCM after you replace solenoids or service the valve body. Crank Sensor Relearn (CKP) clears the P0315/P0339-type variation-not-learned codes that hang around after a starter or engine job. You also get throttle relearn, ABS bleeding, injector coding, BMS battery registration, SAS calibration, TPMS, EPB release, and oil-service reset. It reads real-time transmission fluid temperature, shaft speed, and line pressure so you can confirm a fix on the bench or in the driveway.

Coverage runs to OBDII-equipped cars and 12V light trucks built 1996 and newer, across 90-plus brands, including 12V diesel engines. It supports CAN FD and FCA AutoAuth for late Chrysler, Dodge, Jeep, and Ram (the FCA AutoAuth account is registered separately on the FCA site, or you can run the 12+8 cable instead). Software updates are free for the life of the tool over WiFi, with no subscription.

Runs on a stable Linux platform with a 5.45-inch 1440x720 touchscreen, 64GB of storage expandable to 128GB, and a rechargeable battery that also tops up off the OBDII port while you work. Ships from the USA, handling in 1-2 business days.
