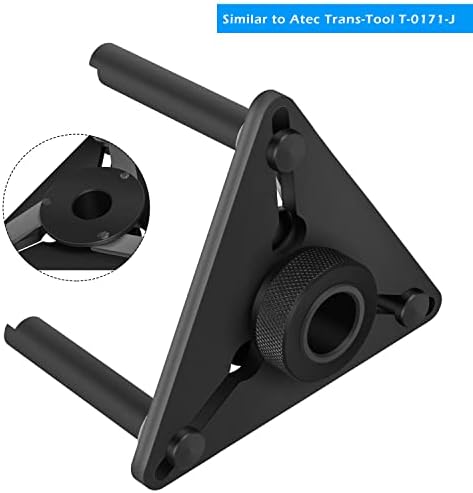

Every automatic rebuild has the same awkward moment: the clutch piston is in, the return spring and retainer are sitting on top, and you need to push that spring down far enough to get the snap ring into its groove without cocking the retainer or gouging the drum. This Bonbo adapter is built for that step. It is a functional match for the Atec Trans-Tool T-0171-J, the three-legged adapter that rides on a foot-press style spring compressor or a Drum Buddy bench fixture, and it weighs only 1.6 lb.
What this spring compressor adapter does

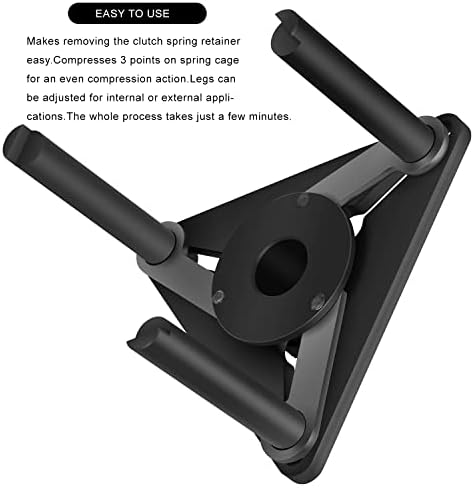

The adapter is a triangular plate with three legs that slide in radial slots and a center boss that takes the press. Each leg sits on the spring retainer, so the load goes down at three points spaced evenly around the cage instead of on one side. That is what keeps the retainer level as it moves, so its inner edge does not catch on the hub or bind in the snap ring groove. Because the legs adjust in and out along their slots, one tool reaches small internal return spring packs as well as larger external spring cages on bigger drums. The adapter does not make force by itself; the foot press or bench fixture supplies the travel and the adapter spreads it out.
Factory procedures assume a press at this point. The ATSG rebuild procedure for the GM 5L40-E forward and coast clutch housing, for example, says to put the housing on a foot press, compress the shared return spring and fit a new snap ring, then make sure the ring is fully seated before releasing the press. An adapter like this one is what sits between the press and that spring retainer.
Signs you need a proper compressor
- The retainer tips to one side when you push it down with a single bar or socket
- Snap rings that will not seat fully, or that pop out when you release pressure
- Bent spring retainers or scraped piston seals from a previous rebuild
- Clutch packs that slip or apply late after assembly, which can come from a piston seal rolled during spring compression
That last one matters most. A rolled or cut piston seal looks fine on the bench and then bleeds apply pressure in the car. If you are chasing a slip after a rebuild, our transmission slipping diagnosis guide walks through separating a leaking clutch circuit from a pressure or solenoid fault.
How to confirm it suits your setup
Check what you are mounting it to. The adapter is made for a foot-press compressor or Drum Buddy fixture, so you need one of those or an equivalent press with a center post. Then look at the drums you service most. Measure the outside diameter of the spring retainer and make sure the legs can be set to land on the retainer itself, not on the springs or the piston. Our bench rebuild tool list shows where a compressor fits among the other bench tools on a typical GM rebuild.
Fitment
This is a universal-style adapter rather than a part for one transmission. It is listed for internal and external drum springs across many automatics, and it is a direct functional match for the Atec Trans-Tool T-0171-J. Some drums with a long input shaft, deep hubs or a spring cage that sits below the drum rim may need a dedicated tool instead. If you tell us the transmission and drum you are working on, we can help you decide. For model-specific compressors, see the 4L60E clutch spring compressor and seal resizer set.
Using it on the bench
- Set all three legs to the same radius so they land squarely on the retainer, then center the drum under the press.
- Lube new piston seals before compressing, and watch the seal lips as the piston moves so nothing rolls.
- Press only far enough to clear the snap ring groove; over-compressing can distort the retainer.
- Seat the snap ring all the way around before releasing, and use a new ring when the service procedure calls for one.
- Air check the clutch after assembly to confirm the piston strokes and releases, as shown in our bench air check procedure.
Two tools pair naturally with it: a good snap ring pliers set for the retaining ring, and a dial indicator with magnetic base for checking clutch clearance once the pack is stacked.
