Compresses the clutch return springs on Ford 10R80 and GM 10L80 drums so you can pull the retainer snap ring under a press without the piston kicking back.
If you are searching for a 10L80 or 10R80 piston compressor, you probably have a Silverado, Sierra, Tahoe, F-150 or Expedition ten-speed apart on the bench and a drum that will not give up its snap ring. Every apply piston in these units is pushed back by a return spring assembly, and that assembly is locked in place by a snap ring under load. This 3-piece kit holds the spring stack down under a press so the ring can come out, and go back in, without the retainer kicking up or the ring flying off the bench.

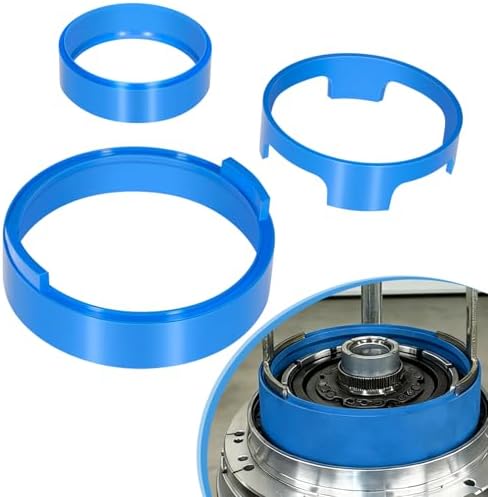

The GM 10L80 and Ford 10R80 came out of the same joint program and share the same basic layout: six clutch packs working with four planetary gearsets to make ten forward ratios. Each clutch is applied by a hydraulic piston and released by its return spring. To replace piston seals, inspect a drum or change the frictions you have to unload that spring first. The compressor cups in this kit sit over the spring retainer, you bring a foot press or hydraulic shop press down onto the cup, and the retainer drops just far enough to expose the snap ring groove. The listing calls out the F, A, B, C, D and E drums, so one set handles the full teardown rather than a single circuit.
Any of those turns a fresh rebuild into a comeback with the same harsh or slipping shift you started with.
Do not buy a teardown tool until the diagnosis points inside the case. On the 10L series ATRA notes that most high-mileage shift-quality complaints trace back to the valve body: weak solenoid retainer clips, sticking linear solenoids or clutch control valves and a worn accumulator bore. Our 10L80 valve body symptoms and testing guide walks through those checks. If the valve body is sorted, the relearn is done and a shift still flares or binds, clutch clearance or a leaking piston is the next suspect. The 10L80 3-4 clutch failure guide covers the clutch side, and that is the point where this compressor earns its place.

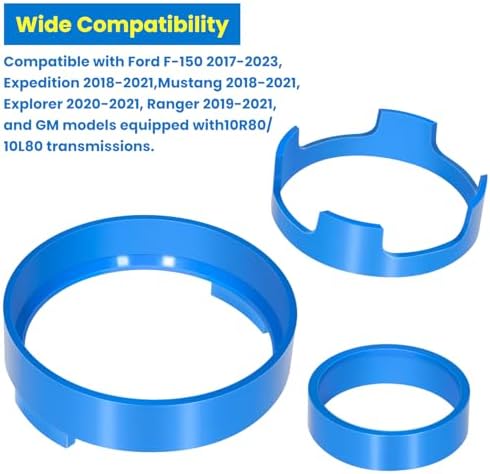

Listed for the Ford 10R80 in the 2017-2023 F-150, 2018-2021 Expedition, 2018-2021 Mustang, 2020-2021 Explorer and 2019-2021 Ranger, plus GM trucks and SUVs built with the 10L80. GM has Gen. 1 and Gen. 2 versions of the 10L80, and drum details can change between them and between Ford and GM builds, so measure your retainer and compare it to the cups before you load the press. If you are unsure, send us your year and VIN and we will check it. Browse everything we carry for this unit on the 10L80 transmission parts page.
The kit weighs about 15 ounces, so it lives in a drawer between jobs instead of taking up bench space.
| Fits | Ford 10R80 / GM 10L80 ten-speed automatics |
| Applications | F-150 2017-2023, Expedition, Mustang, Explorer, Ranger, GM 10L80 trucks/SUVs |
| Pieces | 3-piece compressor and snap ring service set |
| Drums covered | F, A, B, C, D, E clutch drums |
| Press type | Works with standard foot press or hydraulic shop press |
| Item weight | 15.04 oz |
Yes. It is listed for the Ford 10R80 in the 2017-2023 F-150, Expedition, Mustang, Explorer and Ranger and for GM trucks and SUVs with the 10L80. Measure your retainer against the cups first, since Gen. 1 and Gen. 2 GM units and Ford builds can differ in detail.
Yes. The cups are designed to be loaded by a standard foot press or a hydraulic shop press. The press supplies the force; the cups keep it centered and square on the spring retainer.
The listing calls out the F, A, B, C, D and E clutch drums, so one kit covers a full teardown instead of a single clutch.
Piston seals and all rotating sealing rings. ATRA notes that reused sealing rings on the 10L series leak and cause intermittent shift quality problems. Set clutch clearances to spec and air check each drum before reassembly.
GM specifies DEXRON ULV for the 10L80 with an 8.1 quart service fill in its 2026 capacities chart. Ford 10R80 units take MERCON ULV. Run the adaptive relearn after the refill.
