Hayden 403 Ultra-Cool Tube and Fin Transmission Cooler

Heat is the number one killer of automatic transmissions. Every extra 20 degrees of sustained fluid temperature roughly halves the life of the oil and the friction material inside, and stop-and-go traffic, towing, hills, and hot summers all push temps into the danger zone. The Hayden 403 Ultra-Cool is one of the most proven answers to that problem - an external tube-and-fin cooler that mounts in front of the radiator or A/C condenser and sheds heat before the fluid ever gets back to the gearbox.

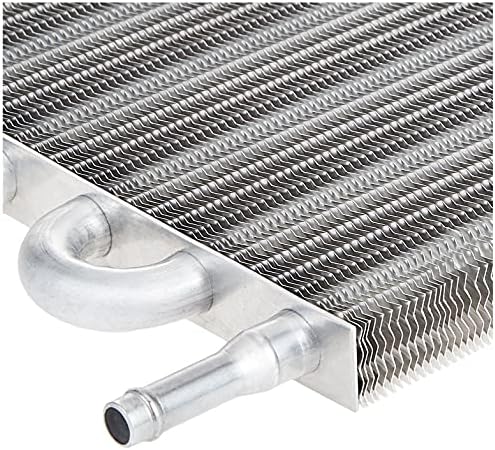

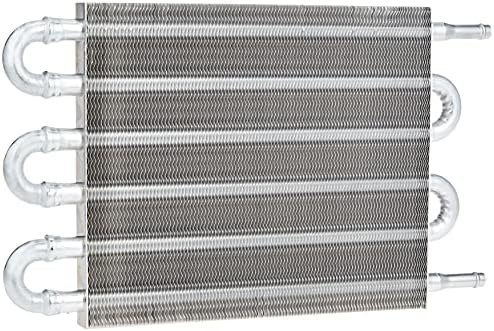

Hayden essentially invented the transmission cooler back in 1961, and the 403 is their economy tube-and-fin unit built the same way the expensive ones are: a round-tube serpentine core with high-efficiency turbulators inside to keep the fluid churning against the cooled walls. Every core is ultrasonically soldered and pressure-tested to 150 PSI at the factory, so it holds up to real transmission line pressure without weeping. At 12.5 by 12.5 inches and only 3/4 inch thick it has an ultra-low profile that tucks into tight grille openings where a thicker stacked-plate cooler will not fit, and it weighs under two pounds.

It is rated for vehicles up to 18,000 pounds GVWR and towing up to 3,500 pounds, which covers most cars, mid-size and full-size pickups, SUVs, and light tow rigs. The kit is complete out of the box - cooler, hose, worm-gear clamps, and nylon-tie mounting hardware - with 3/8 inch inlet and outlet fittings, and most installs run about a half hour. Owners routinely report fluid temperatures dropping around 20 degrees and rough hot-weather shifting cleaning up after the install. A practical tip from the shop floor: if your vehicle already has a factory cooler in the radiator, plumb this one in series after it rather than replacing it, so the transmission is not over-cooled in winter. Ships from the USA.
