Centers the clutch disc to the flywheel pilot so the input shaft slides in on the first try; 8 tapered adapters cover most SAE and metric pilot sizes.
An 8-piece clutch alignment set for centering the clutch disc to the flywheel and crankshaft pilot before you bolt the pressure plate down. Alltrade Tools part number 648649. If the disc is off-center when you torque the cover, the transmission input shaft will not enter the pilot bearing and the box hangs up on the splines - this set removes the guesswork.

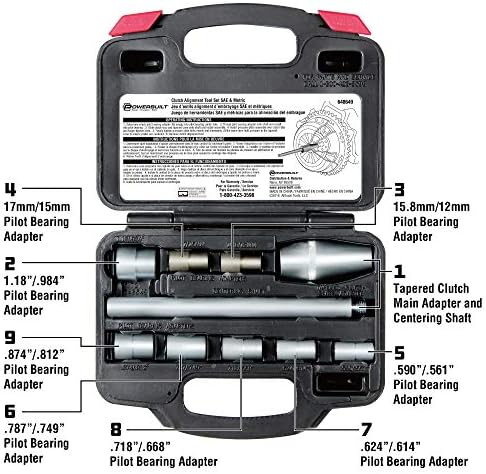

The kit uses a tapered cone main adapter and a centering shaft with a stack of pilot adapters so it self-centers in the crank or pilot bearing on most domestic and import cars and light trucks. Adapter sizes cover 1.18 in / .984 in, .874 in / .812 in, .787 in / .749 in, .718 in / .668 in, .624 in / .614 in, .590 in / .561 in, 17 mm / 15 mm, and 15.8 mm / 12 mm, so both SAE and metric pilots are handled.
On the bench: pick the adapter that fits the pilot bearing or bushing, run the tool through the clutch disc into the pilot, seat the disc against the flywheel, then torque the pressure plate in a star pattern and pull the tool. The disc stays dead centered and the trans slides home on the first push. Comes in a storage case with instructions. Ships from the USA, handling in 1-2 business days.
| Fits | Most domestic and import cars and light trucks |
| Part Number | 648649 (Alltrade Tools / Powerbuilt) |
| Pieces | 8-piece set with centering shaft and cone adapter |
| Adapter Sizes | 1.18/.984, .874/.812, .787/.749, .718/.668, .624/.614, .590/.561 in, 17/15 mm, 15.8/12 mm |
| Weight | 3.05 lb |

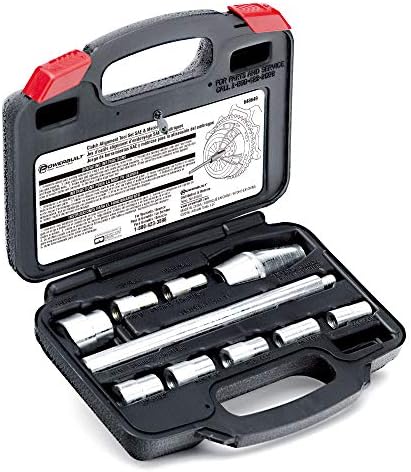

| Includes | Storage case with instructions |
| Ships | From the USA |
