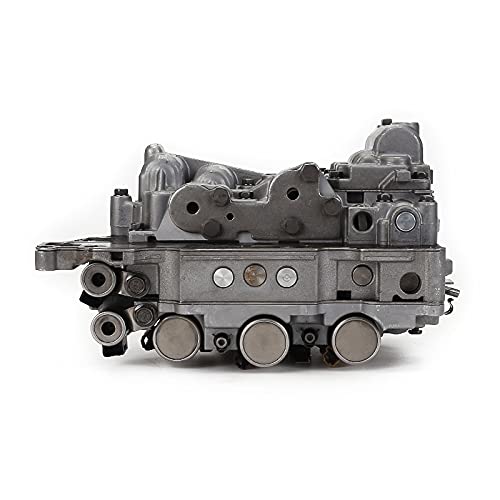

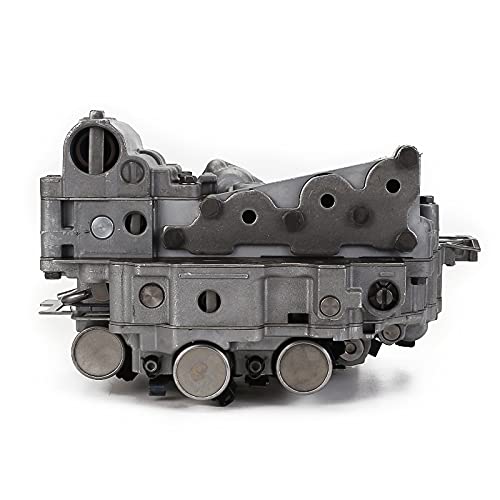

Complete valve body assembly for the Aisin TF-80SC six-speed, curing the worn bores and sticking valves behind harsh, delayed or missing shifts.
A harsh or delayed 1-2 shift, a flare between 3rd and 6th, or a torque converter clutch that shudders at light throttle on a Volvo, Saab, Ford, Mazda, Land Rover or Mini usually points at one part: the valve body inside the Aisin TF-80SC six-speed automatic, the same unit sold under the AF40 and AWF21 part numbers depending on who installed it. This listing is a complete replacement assembly for that valve body, built to get a tired six-speed shifting correctly again without the time and risk of chasing individual worn bores.
The valve body is the hydraulic and electronic control center of the transmission. It takes line pressure from the pump and routes it through a maze of precision-machined bores and spool valves to apply and release each clutch pack as the computer commands a shift. On the TF-80SC/AF40, the shift and pressure control solenoids mount directly to this body, so it is also where the transmission control module's electrical commands turn into hydraulic pressure at each clutch. Any wear in the bores or the separator plate between them changes how that pressure is delivered, and the shift quality changes with it.
Those ratio codes are a documented pattern on this family: as the solenoid modulator valve wears, the feed pressure it sends to the shift solenoids drifts, and the shift quality and ratio codes follow (see the Sonnax valve body layout and modulator kit notes in Sources below). A worn secondary pressure regulator valve shows up differently - harsh reverse engagement, converter clutch slip, and overheated fluid from reduced lube and converter circuit pressure.
Pull the stored codes first and note whether they point at a specific solenoid, a ratio error, or a generic pressure fault. Check the fluid level and condition at the same time - dark or burnt fluid points at a clutch that has been slipping and cooking, not just a hydraulic control issue. If the symptoms match the list above, the codes are ratio-based rather than a single solenoid circuit fault, and the fluid itself is in reasonable shape, the valve body is the most likely cause rather than the clutch packs behind it.
This body covers the Aisin TF-80SC/AF40/AWF21 family as used in Volvo, Saab, Opel, Peugeot, Citroen, Fiat and Renault applications from 2005 up, and in the Ford, Mazda, Land Rover and Mini platforms that share the same transaxle from 2003-2017. The catch with this family is that the casting and solenoid layout changed more than once across that run, so the model year alone is not a reliable fitment check. Compare the casting and connector on your old body against this listing, or send us your year, make and VIN before ordering so we can confirm the match. Browse the rest of our TF-80SC/TF-81SC parts if you need solenoids or a filter kit alongside it.
Drop the pan and filter and drain the case before pulling the old valve body straight down - do not pry on the casting, since the mating face is soft aluminum and a levered edge will leak afterward. Note exactly where the solenoid harness and the manual valve linkage sit before anything comes loose, because the manual valve has to seat cleanly on the detent pin going back in or the unit will not select gears correctly. Torque the valve body bolts in a spiral pattern rather than working around the perimeter, fit a fresh filter and pan gasket kit, and refill with JWS 3309-spec ATF. If the old codes were solenoid-specific rather than ratio-based, pair this body with a pressure control solenoid or the full 8-piece solenoid kit rather than reusing worn solenoids on a fresh body. Run the adaptive relearn procedure after the fill - a new valve body on old adaptive values often shifts worse than the part it replaced until the computer retrains to it.
| Transmission | |
| Cross-reference | |
| Part type | |
| Fitment | |
| Sourcing note |
Doing this repair right usually means replacing these at the same time. Same transmission, ships together.
It ships as a complete assembly with the separator plate, valves and springs already fitted in the casting. Solenoid carryover depends on which casting revision your vehicle has, so compare your old unit's solenoid pack and connector against this listing before ordering, or send us your year, make and VIN and we will confirm the match.
The most common pattern is a harsh or delayed 1-2 shift, flare or slip in the higher gears, torque converter clutch shudder at light throttle, and ratio codes such as P0729, P0734 or P0735 stored as the computer sees the wrong gear ratio for the shift it commanded.
Use JWS 3309-spec automatic transmission fluid, the spec the Aisin TF-80SC/AF40 family is built around. Using the wrong fluid can reproduce shudder and harsh-shift symptoms even with a good valve body installed.
TF-80SC, AF40 and AWF21 are the same core transaxle family, but the casting and solenoid layout changed across the production run. Match the part number and connector on your old body, or give us your VIN, before assuming any TF-80SC valve body is a drop-in fit.
Always install a fresh filter and pan gasket and a full ATF service at the same time, since old debris circulating through a new valve body will shorten its life. If your original codes pointed at a specific solenoid rather than a ratio fault, replace that solenoid or the solenoid kit instead of reusing a worn one on the new body.
The transmission control module stores adaptive values that compensate for wear in the old valve body. Those values are wrong for a fresh body until the computer relearns them, which is why running the adaptive relearn procedure after the fill is part of the install, not an optional step.
