ZF 8HP Transmission Service Kit with 6L ATF for Audi

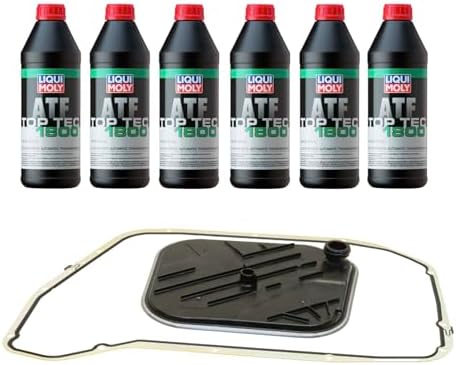

Audi owners looking at a slow 1-2 on a cold morning, a thump into drive, or a faint shudder at 40 mph on a light throttle usually find out the same thing: the eight-speed Tiptronic was sold as filled for life, and at 80,000 or 100,000 miles the fluid is tired. This kit is the complete fluid and filter service for the ZF 8HP behind the longitudinal Quattro drivetrain. It contains six 1-liter bottles of ATF made in Germany, the internal transmission filter, the pan gasket and twelve new pan bolts, so the whole job comes in one box.

What the fluid and filter do in an Audi ZF 8HP

The 8HP shifts by filling and draining clutch packs through a mechatronic valve body bolted inside the pan. Every shift is a pressure-controlled overlap between two clutches, and the transmission control unit learns how long each clutch takes to fill. Fluid that has lost its friction modifiers and collected wear material changes how those clutches grab, and the adaptations chase it until they run out of range. The filter keeps that debris away from the solenoids. ZF's own fluid data sheet calls the factory fill lifetime oil but recommends changing it after 150,000 km (about 93,000 miles), and sooner for hot climates, towing, hard driving or unknown history. A used A6 or Q5 with no service records falls squarely in that last group.

Symptoms this service addresses

• Harsh or delayed engagement into drive or reverse, worst when cold
• Torque converter lockup shudder at light throttle between roughly 30 and 50 mph
• Slow or flared upshifts, especially 2-3 and 3-4, before the car is warm
• Dark fluid or a burnt smell at the fill plug
• Fluid weeping from the pan flange where old bolts have lost clamp load

A service will not fix a worn clutch or a failed solenoid. If the car already slips under load or throws transmission fault codes, diagnose first; our ZF 8HP fluid change cost guide explains when a service is worth doing and when it is too late.

Fitment

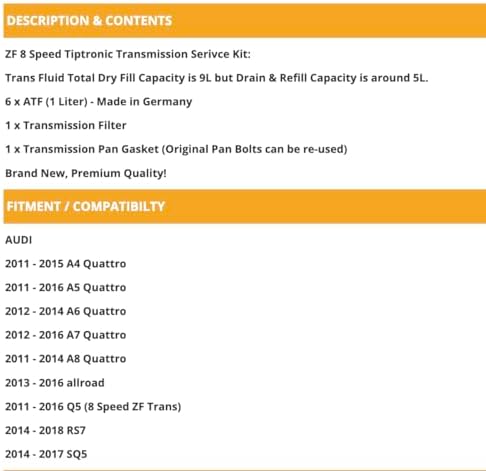

Listed fitment is the 8-speed ZF Tiptronic in the 2011-2015 A4 Quattro, 2011-2016 A5 Quattro, 2012-2014 A6 Quattro, 2012-2016 A7 Quattro, 2011-2014 A8 Quattro, 2013-2016 allroad, 2011-2016 Q5 (8-speed ZF cars only), 2014-2018 RS7 and 2014-2017 SQ5. The Q5 was built with more than one transmission in this period, so confirm yours is the ZF eight-speed before ordering, and note that this kit uses a separate filter and gasket, so your pan must be the type that unbolts from a separate filter. Hybrid versions use a different ZF fluid group and are not covered here. Send us the year and VIN if you want it checked. More parts for this family are on our ZF 8HP parts page.

How much fluid you need

A completely dry 8HP takes about 9 liters, but a pan drop only gives back about 5 liters because the converter, the clutch circuits and the cooler stay full. Six liters covers the service with a margin for spillage. If the cooler or lines were opened, or you want to do a second drain and fill to raise the fresh-fluid percentage, add a ZF Lifeguardfluid 8 service pack or a single liter of Top Tec ATF 1950 for topping off.

Install notes

• Start with the car cold. The level is checked in a temperature window, and if you overshoot it you have to wait for the transmission to cool back down.
• Remove the pan, pull the old filter and clean the magnets. Look at what is on them: fine gray paste is normal wear, flakes or bronze-colored metal are not.
• Run all twelve new bolts in by hand and tighten crosswise from the center out. ZF publishes the torque by pan material, 4 Nm plus 45 degrees for aluminum and 12 Nm for steel, so check which pan you have. Do not reuse the old bolts.
• Fill through the fill plug with the engine running and the selector in park until fluid just trickles out, with the fluid in ZF's check window (30 to 50 C for most units). Install a new fill plug seal.
• Do not add additives. ZF says they change the chemical makeup of the fluid.

For the detail behind each step, see our ZF 8HP fluid type, capacity and interval guide and the ZF 8HP leak guide for pan and plug torques. If the service does not settle the shifts, the next step is usually the mechatronic unit, such as a remanufactured valve body with solenoids, matched to your exact transmission code.

Does this kit fit my 2014 Audi Q5?

Only if it has the ZF 8-speed Tiptronic. The 2011-2016 Q5 is on the listed fitment for 8-speed ZF cars only, and hybrid models use a different fluid group. Check the transmission code or send us the year and VIN.

Is six liters enough?

For a pan and filter service, yes. A pan drop drains about 5 of the roughly 9 liters in the unit. Add more fluid if you opened the cooler lines or plan a second drain and fill.

Can I reuse my old pan bolts?

No. The bolts are torque-plus-angle on metal pans and stretch when tightened, which is why twelve new bolts are included. Reused bolts are a common cause of pan flange seepage.

How do I check the level when I am done?

With the engine running in park, fill through the fill plug until fluid just trickles out while the fluid temperature is inside ZF's check window, 30 to 50 C for most units. A scan tool is the reliable way to read the temperature.

Will a fluid service fix shudder or harsh shifts?

It often helps when the cause is worn fluid, especially lockup shudder and cold harsh shifts. It will not repair worn clutches or a failed mechatronic unit, so diagnose fault codes first.
