10R80 Piston Compressor Tool Kit 3-Piece Clutch Set

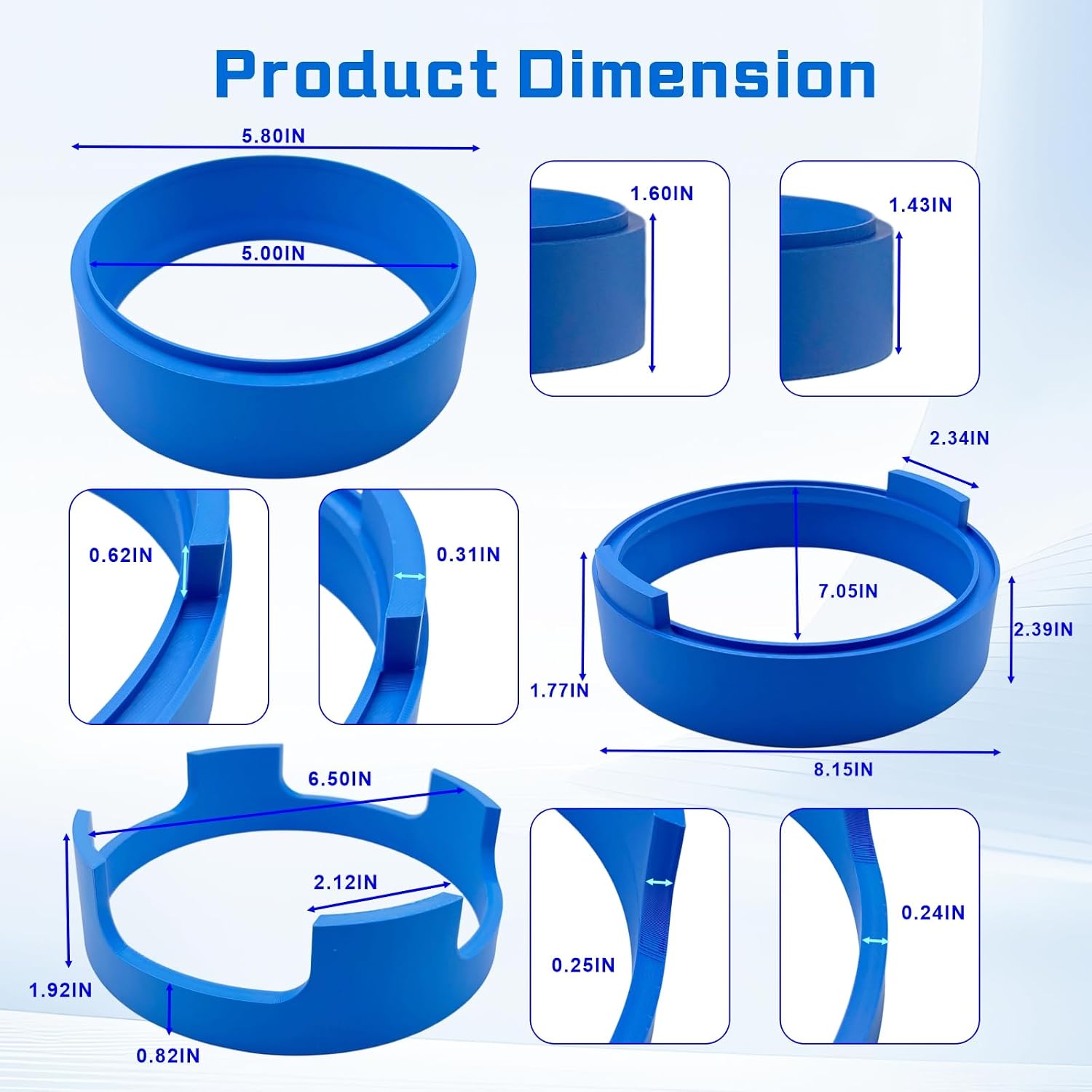

Tearing down a 10R80 from a 2017-2023 F-150, a 2018-2021 Expedition or Mustang, a 2019-2021 Ranger or a 2020-2021 Explorer means opening six clutch packs, and every one of them has a return spring pushing against a snap ring. This three-piece hardened steel set clamps across the piston face with a center screw and holds that spring load flat, so you can pick the ring out of its groove, and seat it again on reassembly, without a shop-made C-clamp setup. It fits the GM 10L80 in Silverado, Sierra, Tahoe and Yukon too, since the two units share the same design.

What this compressor kit does in a 10R80

The 10R80 makes ten forward speeds with four planetaries and six clutches, and shifts by releasing one clutch while applying another. Each clutch piston is pushed back off its pack by a spring assembly captured under a snap ring. To service a piston seal or change a pack, that spring load has to come off the ring first. A clamp that pinches the retainer at two points bends it and can split the bonded lip on the piston seal. The plates in this kit spread the load over the full piston, and the screw lets you control exactly how far the retainer goes down and how fast it comes back up. Because the set is steel and screw-driven, you do not need a press to use it.

Problems that put a 10R80 on the bench

• A flare, slip or bind on one shift while the rest are normal, typical of a leak in a single clutch circuit
• Harsh engagement or shift complaints that survived the software update, keep alive memory reset and adaptive relearn Ford calls for in TSB 23-2152
• Burnt friction material or heavy debris on the filter and pan magnet
• A rebuilt unit with clutch clearance out of spec because a snap ring was not fully seated

How to confirm you need to go inside

Many harsh-shift complaints on 2017-2020 F-150s and 2018-2021 Expeditions and Mustangs start with software and adaptive learning, not hard parts, so work through the 10R80 harsh and delayed shifts guide first. GM owners should rule out the solenoid and valve body problems in our 10L80 shift solenoid symptoms guide. If the fluid shows clutch material, or a single gear keeps flaring after those steps, the unit is coming apart, and this is the tool for the drums.

Fitment

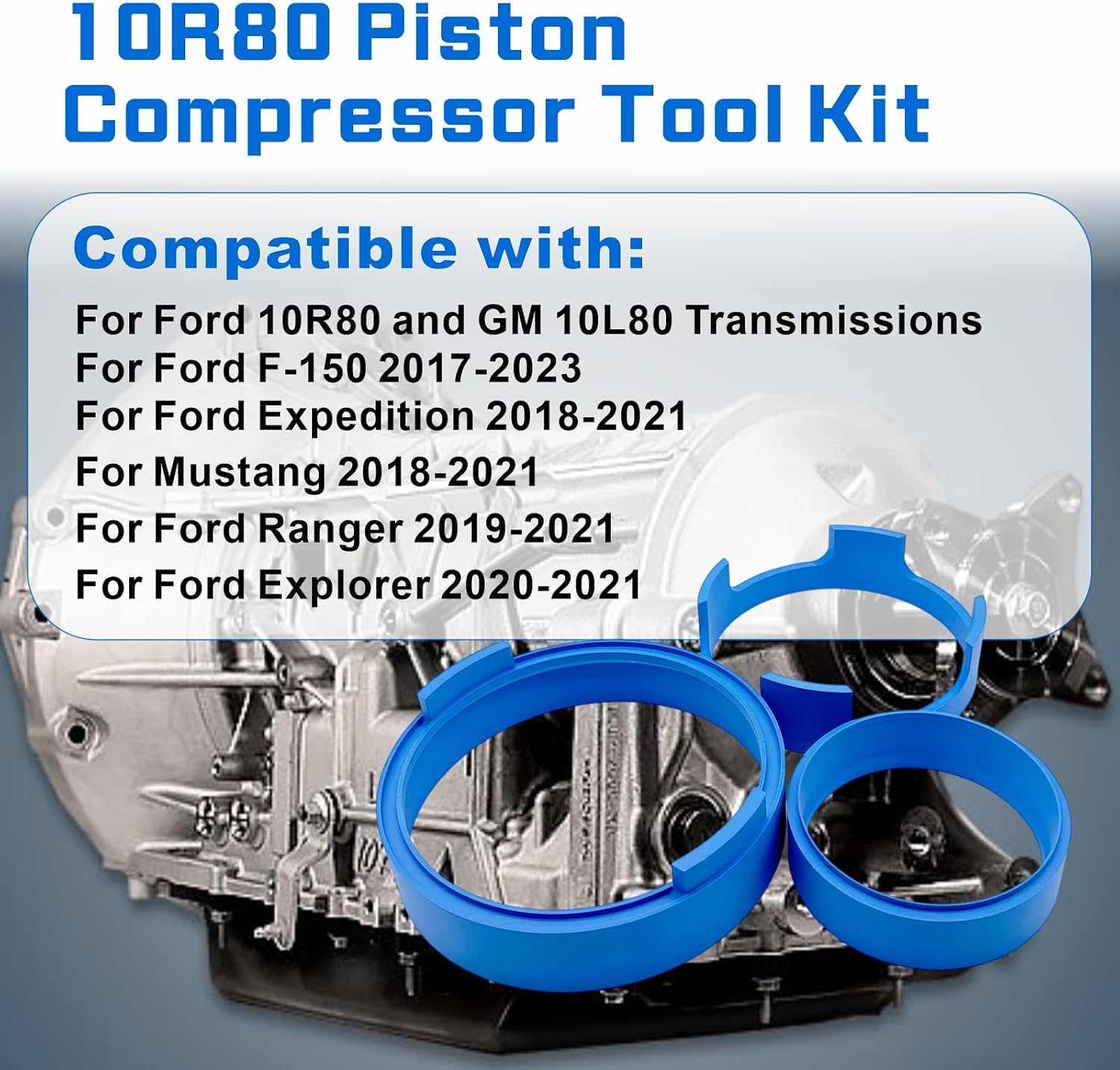

The kit is listed for the Ford 10R80 and GM 10L80, with Ford applications of F-150 2017-2023, Expedition 2018-2021, Mustang 2018-2021, Ranger 2019-2021 and Explorer 2020-2021. It is not listed for the 10R60, 10L60, 10R140 or 10L1000. Explorers in particular were built with either the 10R60 or the 10R80, so read the transmission ID tag before ordering, or send us the year and VIN. Parts for the 10-speed are on the 10R80 parts page and the 10L80 parts page.

Install notes

• Set the drum flat on the bench and pick the plate that covers the full piston face of that drum.
• Run the center screw down only until the spring retainer clears the ring groove, then pull the snap ring with a pick or ring pliers.
• Back the screw off slowly. The release is where springs and retainers jump, so do not rush it.
• On reassembly, compress, seat the ring, release, then go around the drum and confirm the ring is fully home before you measure clutch clearance. ATRA stresses that clearances on these units must be in spec.
• Replace the piston seals and the rotating sealing rings on any rebuild, and lube new seals with ATF or assembly gel.
• Fill a Ford 10R80 with Mercon ULV and a GM 10L80 with Dexron ULV (GM lists 8.1 quarts for a 10L80 service fill), then run the adaptive relearn.

For the parts that go back into the drums, the 10L80 master rebuild kit supplies seals and frictions, and the 10R80 clutch drum compressor tool set is an option if you prefer working in an arbor press.

Does this kit need a press?

No. The plates are clamped down with a center screw, so the job can be done on the bench. If you prefer working in a press, a press-style drum compressor set is also available.

Which transmissions does it fit?

Ford 10R80 and GM 10L80. Ford applications listed are F-150 2017-2023, Expedition and Mustang 2018-2021, Ranger 2019-2021 and Explorer 2020-2021. It is not listed for the 10R60 or 10R140.

What is the kit made of?

The listing states hardened steel, which holds up to repeated compressions across a full teardown and reassembly.

What should I check after reinstalling the snap ring?

Make sure the ring is fully seated all the way around the groove, then measure clutch clearance against the service manual before the drum goes back in the case.

Do I have to relearn shifts after rebuilding the packs?

Yes. Fill with the correct ULV fluid, check the level hot, and run the adaptive relearn with a scan tool that supports it.
