Compresses the clutch drum return spring on Ford 10R80 and GM 10L80 units so the snap ring lifts out square without the piston launching off the bench.
If you are rebuilding a Ford 10R80 or GM 10L80 ten-speed, sooner or later every clutch drum has to come apart, and each one holds its piston in with a return spring trapped under a snap ring. This three-piece compressor set is made for that step. It suits shops and serious home builders working on 2017-and-later F-150s, 2018-and-later Expedition, Navigator and Mustang GT, 2019-and-later Ranger, 2020-and-later Explorer and Aviator, and the GM trucks, SUVs and Camaros that use the 10L80.

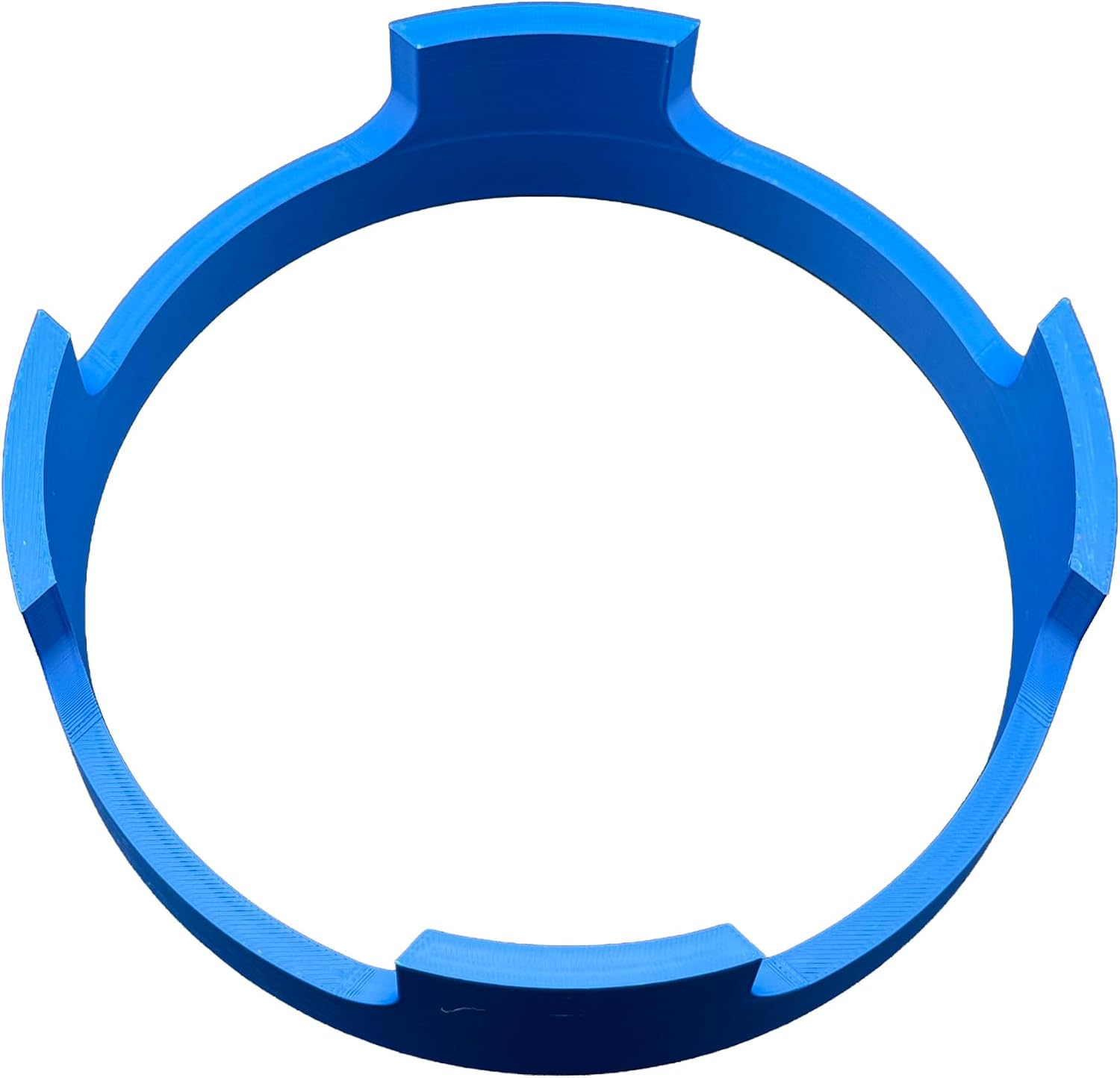

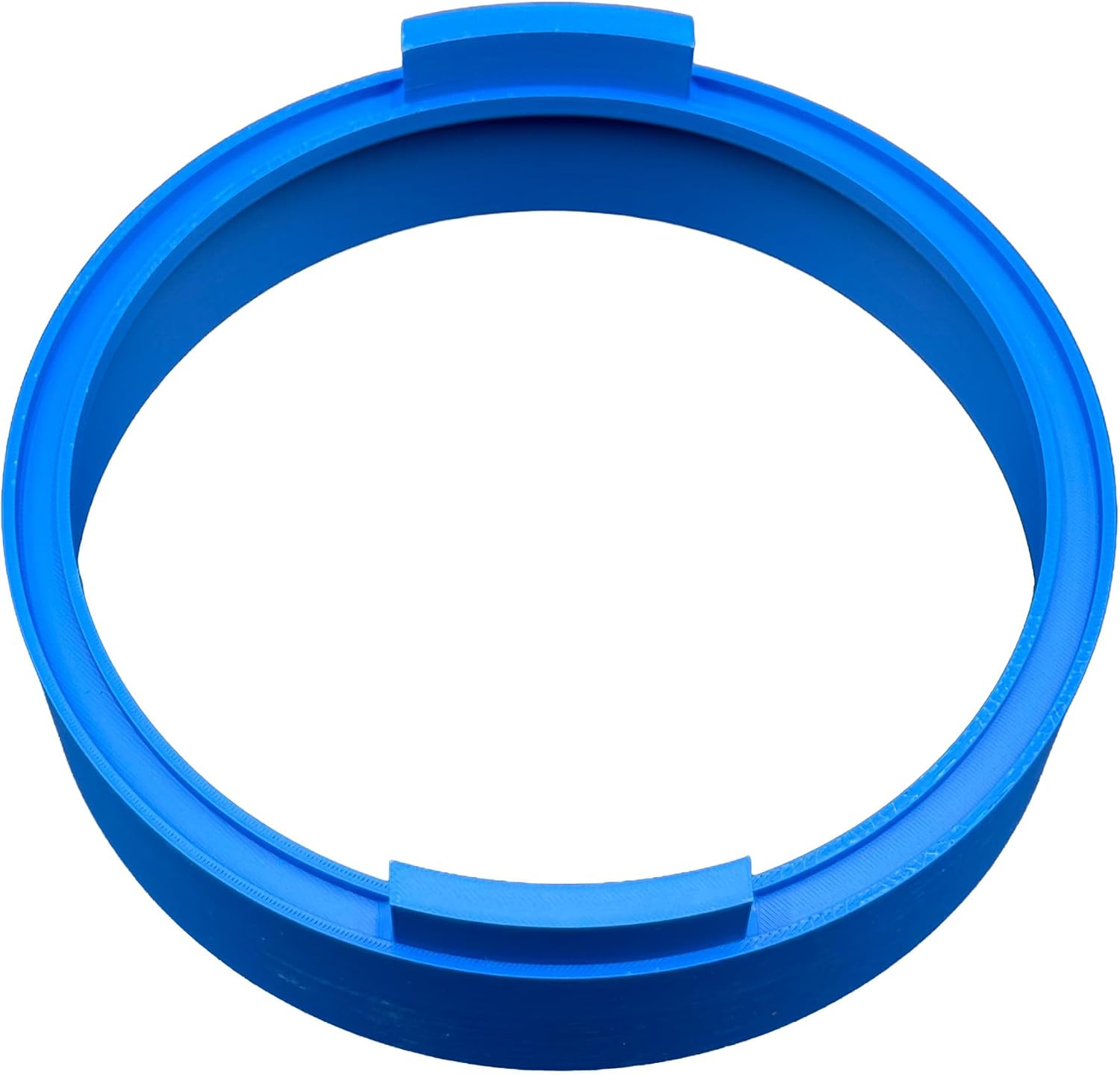

Both ten-speeds use six clutch packs and four planetary gearsets, and the clutch drums are compact, with springs that sit under real preload. To get the piston out you have to push the spring retainer down evenly, take the load off the snap ring, lift the ring out of its groove and then let the spring up slowly. The set is three ring-shaped sleeves sized for different drum diameters. One is a plain collar, one has two raised pads on opposite sides, and one has four notched pads that clear the drum fingers so the load lands on the retainer, not on the splines. Each sleeve goes between the retainer and a press or bench clamp, so the force is spread around the whole retainer instead of one edge. That keeps the retainer flat and the snap ring round, which matters on reassembly. A ring that is sprung out of shape can work out of its groove later and let the piston push the pack apart.
None of those mean you need this tool by themselves; they mean the clutch drums are coming apart. Confirm the diagnosis first. Our 10L80 clutch failure guide explains which clutches work in each gear, and the valve body guide covers hydraulic faults that look like a slipping clutch but never need the drums opened.
The set is listed for the Ford 10R80 and GM 10L80 ten-speed automatics. Ford and GM developed the ten-speed together, so the 10R80 and 10L80 share their general drum layout, but late-production and Generation 2 units have revised parts, and not every drum on every variant may match these three sleeves. Hold the sleeve up to the drum before you load it in a press. If it does not sit squarely on the spring retainer, stop and use the matching sleeve or a different tool. The heavier 10R140 and the Allison 10L1000 are not listed. For more 10-speed parts and tools, see the 10L80 and 10L90 parts page.
For the snap ring side of the job, the 10R80 / 10L80 piston compressor and snap ring kit pairs well with this set. Fresh frictions come in the 10R80 friction clutch module kit, and seals and gaskets are in the 10L80 overhaul kit.
| Transmission | Ford 10R80 and GM 10L80 ten-speed automatic |
| Pieces | 3-piece clutch drum piston compressor set |
| Job | Clutch piston return spring compression for snap ring removal and install |
| Weight | 1.21 lb |
| Package size | 5.12 x 5.12 x 3.15 in |
| Fits | F-150 2017-up, Expedition/Navigator 2018-up, Mustang GT 2018-up, Ranger 2019-up, Explorer/Aviator 2020-up, GM Silverado/Sierra/Tahoe/Yukon/Camaro with 10L80 |
It is listed for both. The two units share their clutch drum layout, but test-fit the sleeve on your drum before you put it under load, since later and Gen 2 units changed some parts.
You need something to push the sleeve down evenly, such as a small arbor press, a shop press or a bench clamp. The sleeves spread the load; they do not create it.
Three ring-shaped compressor sleeves in different sizes: a plain collar, one with two raised pads and one with four notched pads. The set weighs about 1.2 lb.
Those units are not listed for this set. The 10R140 and 10L1000 are heavier-duty transmissions with different drums, so do not count on a fit.
Piston seals, sealing rings, frictions and steels for every pack you open, and the bushings if they show wear. Then air check each piston and set clutch clearance before final assembly.
