Holds the clutch piston down flat on Ford 10R80 and GM 10L80 drums so the retaining snap ring clears without the piston cocking sideways.

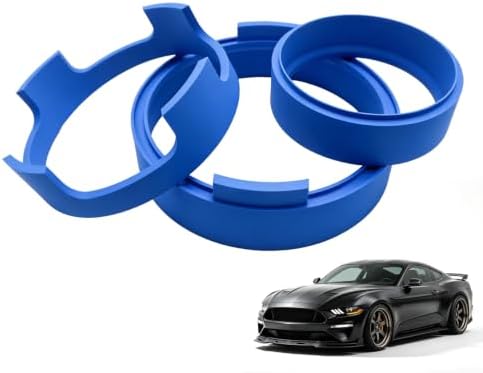

A cocked piston is the quiet way a ten-speed rebuild goes wrong. If you have a Ford 10R80 out of a 2017-2023 F-150, a 2018-2021 Expedition or Mustang, a 2019-2021 Ranger or a 2020-2021 Explorer on the bench, or a GM 10L80 out of a Silverado, Sierra, Tahoe or Yukon, this is the single compressor that seats over a clutch piston and pushes it straight down against its return spring. The load goes across the whole piston face, so the piston retracts level and the retaining snap ring can come out without the piston tipping into the drum wall.
The 10R80 and 10L80 share one architecture: four planetary gearsets and six clutch packs, each with its own apply piston and return spring held captive by a snap ring. Every shift is a clutch-to-clutch handoff, so each piston has to stroke the same distance it did from the factory. If a piston is pushed down on two or three points, it leans in its bore. A leaning piston drags its bonded seal lip across the aluminum, and a compressor that skids off under load can score the bore or nick a steel plate. This tool has a machined locking groove and positioning lugs that index it in the drum, so once it is locked in it will not walk sideways while you work the ring. The contact faces and edges are rounded so the piston and drum are not marked up across a long teardown.
Do the cheap checks first. Read codes in every module, verify fluid level and condition, and work through solenoid and valve body testing in our 10L80 valve body symptoms guide. Ford owners should start with the 10R80 F-150 shift problems guide, since many harsh-shift complaints are calibration and adaptive issues. Once the unit is apart, Sonnax recommends air checking each drum with its mating input part; a hiss past the piston tells you which seal or sealing ring has to be replaced and which piston this tool needs to come out of.
The listing covers the Ford 10R80 in the F-150 2017-2023, Expedition 2018-2021, Mustang 2018-2021, Ranger 2019-2021 and Explorer 2020-2021, plus GM vehicles with the 10L80. It is not listed for the lighter 10R60/10L60 or the heavy-duty 10R140 and 10L1000, so confirm what is in your truck from the transmission ID tag before you order. Explorers in particular were built with both 10R60 and 10R80. If you are unsure, send us the year and VIN and we will check it. Every 10-speed part we carry is on the 10R80 parts page and the 10L80 parts page.
This tool handles one piston at a time. If you are doing all six packs, the three-piece clutch drum compressor set covers several drum sizes, and an 10L80 overhaul kit supplies the piston seals and gaskets the job needs.
| Fits | |
| Vehicles | |
| Construction | |
| Weight | |
| Warranty |
Yes. It is listed for the Ford 10R80 and the GM 10L80, which share the same co-developed design. It is not listed for the 10R60, 10L60, 10R140 or 10L1000.
It handles one piston at a time. Many builders pair it with a multi-piece compressor set so every drum size in the unit is covered without improvising.
The tool locks into the drum with a machined groove and positioning lugs, and its edges and contact faces are rounded, so it does not skid or mark the bore or the piston when used as directed.
Replace the piston seals and the rotating sealing rings for that circuit, inspect the return spring and retainer, and check the steel and friction plates. An overhaul kit covers the seals and gaskets.
Yes. After any clutch work, set clutch clearance to spec, fill with the correct ULV fluid and run the adaptive relearn procedure with a capable scan tool.
The listing states a 1-year warranty. Contact us with your order number if you have a problem with it.
