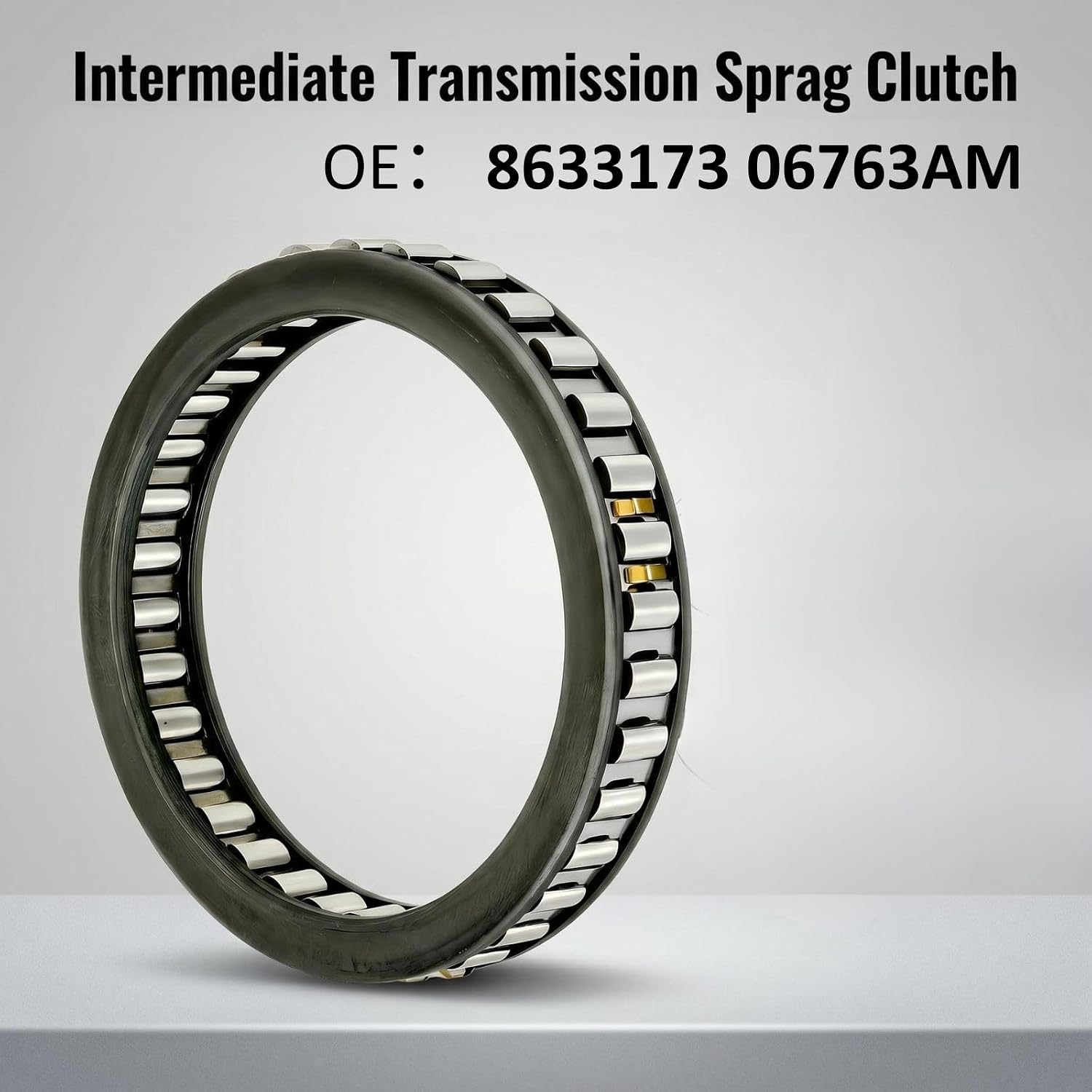

4L80E Intermediate Sprag Clutch, 34-Element Heavy Duty

When a diesel or big-block 4L80E truck starts flaring on the 1-2 shift under a trailer, or second gear disappears altogether and the transmission thumps into third, the intermediate sprag is usually the part that let go. This is a heavy-duty 34-element intermediate sprag for the GM 4L80E, 4L85E and TH400, cross-referenced to OE number 8633173 and industry number 06763AM. It is the single sprag only, for a builder who already has a good drum and race and wants the one-way element done right.

What the intermediate sprag does in a 4L80E

The 4L80E inherited its first three gears from the TH400, and second gear in that gear train depends on a one-way element. The sprag fits between the direct drum hub and the intermediate outer race. When the intermediate clutch on the center support applies, the outer race is held, the sprag wedges its elements against the hub, and the sun gear is locked so the gearset gives second. On the 2-3 shift the direct clutch applies and the drum speeds up, so the sprag elements tip back and freewheel. That handoff is why the 1-2 and 2-3 shifts can be smooth: no clutch has to release at the same instant another applies. Every load-carrying element in the cage shares that holding torque, which is why element count matters on a heavy truck.

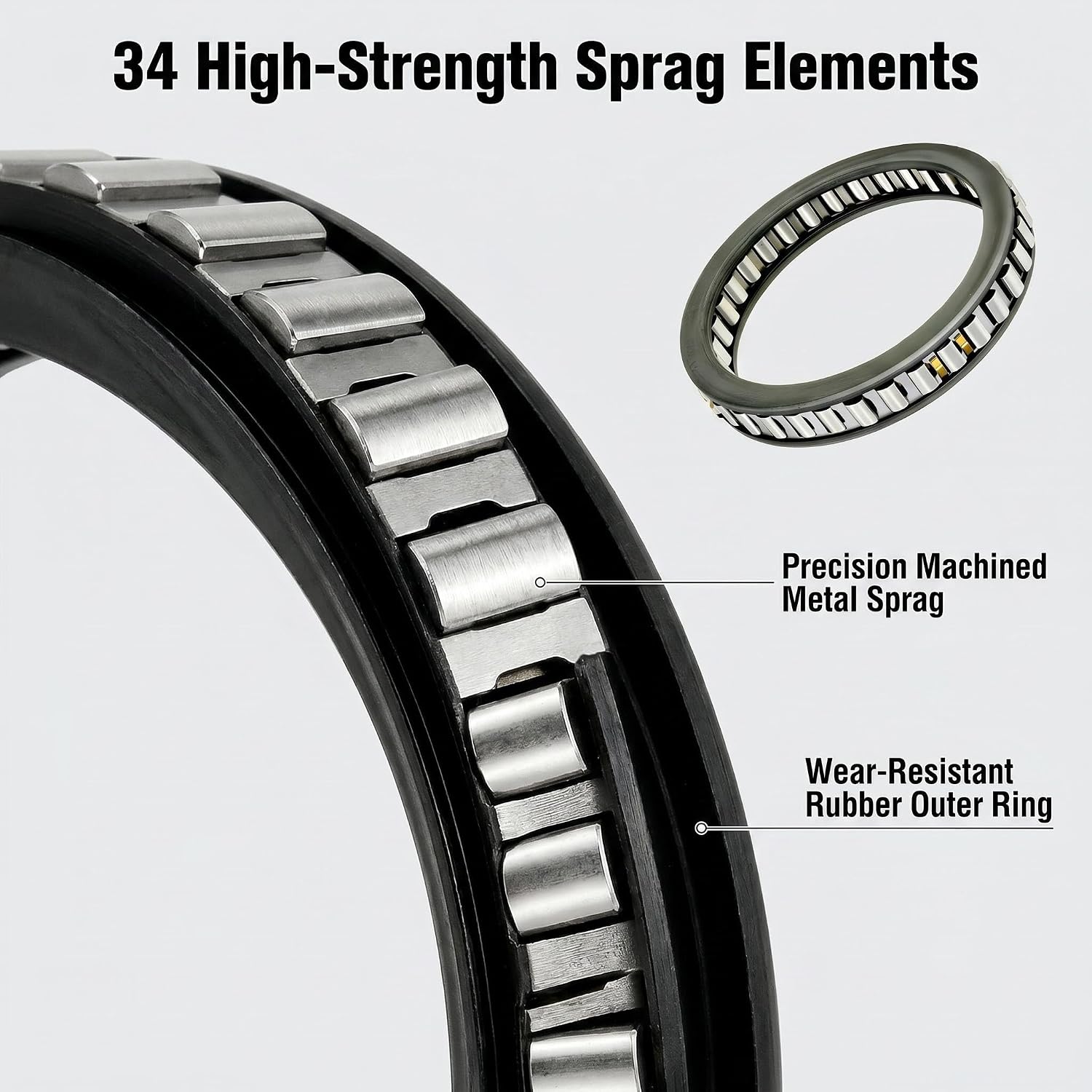

Why 34 elements

The listing describes this sprag as an update over earlier 16-element versions, and Sonnax describes the 34-element intermediate sprag as the standard part for TH400 and 4L80-E series units. Spreading the load across more elements lowers the stress on each one and resists rollover, the failure where elements flip past center and stop gripping. Racing builds go further still with 36- or 40-element sprags in special drums, but for a working truck the 34-element part is the sensible fit.

Symptoms of a rolled or worn sprag

• 1-2 shift that flares, or a short neutral before second catches
• Second that holds cold but slips once the fluid is hot or the truck is loaded
• First gear straight to third, with no second at all
• Burnt intermediate clutch plates and sprag fragments found in the pan or on teardown
• A chewed, polished or brinelled outer race when the drum comes out

How to confirm before you buy

A stuck shift solenoid or a dead speed sensor can also take away second, so prove the electrical side first with our 4L80E shift solenoid diagnosis. Then check line pressure: low apply pressure cooks the intermediate clutch, and once that clutch slips the sprag never gets a chance to hold. If solenoids, sensors and pressure check out and second still flares, the sprag or its race is the answer. Towing and heat history matter too; our Silverado 2500 4L80E problems guide shows how these failures stack up in work trucks.

Fitment

Listed for the 4L80E and 4L85E from 1991 on and for TH400 and 3L80 units that use the same sprag-style direct drum. Typical vehicles are Silverado and Sierra 2500 and 3500, Suburban, Tahoe, Yukon, Express, Savana and Hummer H1. Some older TH400 drums use a roller-type intermediate clutch instead of a sprag, and those need different parts. Match your drum and race style, or send us your year and VIN. If you would rather replace the drum and sprag together, see the bare 4L80E direct drum with sprag, and for every other part browse the 4L80E collection.

Install notes

• Inspect the outer race and the drum hub. Any pitting, step wear or polished track means replacing that part, or a new sprag will roll over again.
• Lubricate the sprag with ATF and install it with the lip and element lean in the original orientation.
• Before the center support goes back in the case, hold the race and turn the drum by hand: it must lock one way and spin freely the other. Free both ways means it is backward.
• Fit new intermediate frictions, since the old ones are usually burnt; the 4L80E full overhaul kit and a fresh 4L80E clutch drum are worth pricing if the drum is scored.
• Fill with Dexron VI and check the level hot.

Is this a drop-in for the original intermediate sprag?

It is listed as a straight replacement in 4L80E and 4L85E sprag-style direct drums and for TH400 units that use the same drum. Check that your drum is the sprag type, not a roller-clutch drum, before ordering.

What part numbers does it cross to?

The listing references OE number 8633173 and industry number 06763AM. If your old part or rebuild sheet shows a different number, send it to us and we will confirm.

My 4L80E skips second and goes from first to third. Is the sprag bad?

That is a common sprag failure, but a stuck shift solenoid can do the same thing. Rule out the solenoids and speed sensors and check line pressure, then plan on replacing the sprag and inspecting the race and intermediate clutch.

Should I replace the race at the same time?

Replace it if it shows any pitting, steps, brinelling or a polished track. A worn race is the most common reason a new sprag fails early, especially in high-torque trucks.

Will this sprag hold behind a diesel or a tuned engine?

It is the heavy-duty 34-element part used in stock TH400 and 4L80E builds, so it is the right choice for towing trucks. Full race builds sometimes go to 36- or 40-element sprags that require matching drums.

Does it need any relearn after install?

The sprag itself needs no programming. After a rebuild, refill with Dexron VI, check the level hot, and drive the truck through normal shifts so the controller settles in.
