Two molded rubber-bonded clutch pistons for a GM 4L80E or 4L85E overhaul, so you replace hardened lip seals with new bonded pistons in one step.
Tearing down a 4L80E from a Silverado 2500, Sierra 3500, Suburban 2500 or Express van because it slips once it gets hot, flares between gears, or came apart with burnt frictions? The clutch pack usually gets the blame, but the pistons that squeeze it are just as often the cause. This Seal Aftermarket Products Hi-Per Blue kit, part 34088, gives you two molded clutch pistons for the GM 4L80E and 4L85E, labeled for 1991-on units, so the clutches you are rebuilding get full apply pressure again.
Every multi-plate clutch in the 4L80E is applied the same way. Line pressure is routed into the drum behind a piston, the piston moves and clamps the frictions and steels together, and a return spring pushes it back when pressure is exhausted. The seal between that piston and the drum bore is what turns oil pressure into clamping force. When it hardens or takes a set from years of heat, oil leaks past it, the pack clamps soft, and the frictions slip and burn.
A molded piston has its sealing lips bonded directly to the piston body. There is no separate loose lip seal to roll over or pinch while you push the piston into the drum, and the bonded rubber keeps its shape and sealing force longer than a lip seal that has been cooked in a tow rig for 150,000 miles. Heavy towing is exactly how 4L80E forward and direct clutches wear out, so a fresh set of pistons belongs in any rebuild where those packs were burnt.
Start with a line pressure test with a gauge at the case port. Pressure that is low in every range points toward the pump, the pressure control solenoid or the valve body, not a single piston. Pressure that is normal but one gear still slips points at that clutch circuit: the piston seal, the drum sealing rings or a cracked drum. Sonnax notes that a lot of 4L80E pressure complaints actually start upstream at the solenoid modulator and AFL valves, so rule those out first. Our EPC solenoid symptoms guide and the 4L80E common problems guide walk through that diagnosis. On the bench, an air check of each clutch with the drum assembled tells you right away whether the piston holds air or hisses.
The package is labeled for the GM 4L80E and 4L85E, 1991-on, which covers the Chevrolet and GMC 2500 and 3500 pickups, Suburban 2500, Express and Savana vans and Hummer H1 that used the unit, along with 4L80E swaps. The kit contains two molded clutch pistons. Per the label, it does not include the forward clutch sleeve piston, so reuse yours if it is in good condition or source it separately if it is damaged. Before teardown, compare the pistons in the box against the drums you are opening. If you are unsure which pistons your unit needs, send us your year and VIN. Browse everything for this unit on our 4L80E collection page.
| Fits | GM 4L80E, 4L85E |
| Years (per label) | 1991-on |
| Part Number | 34088 |
| Brand | Seal Aftermarket Products, Hi-Per Blue |
| Contents | 2 molded clutch pistons |
| Not Included | Forward clutch sleeve piston |
Doing this repair right usually means replacing these at the same time. Same transmission, ships together.

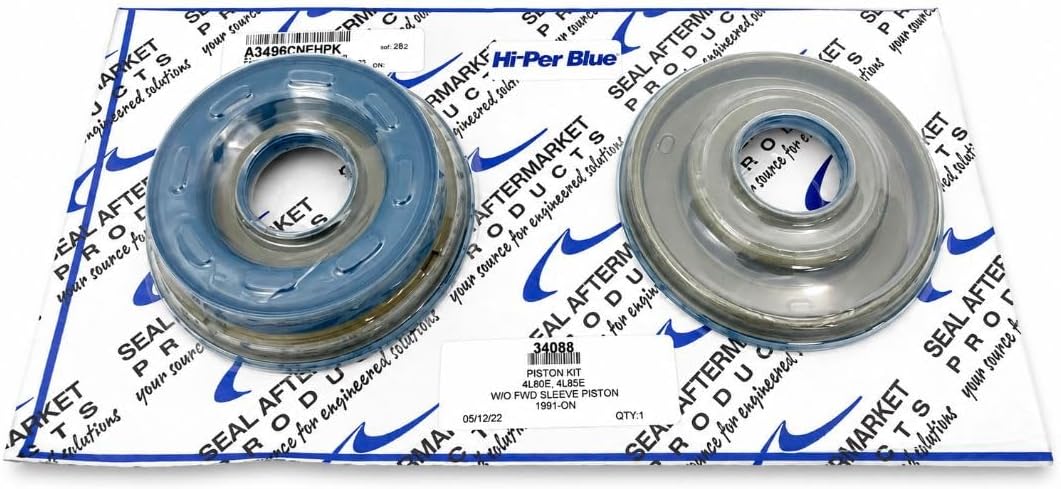

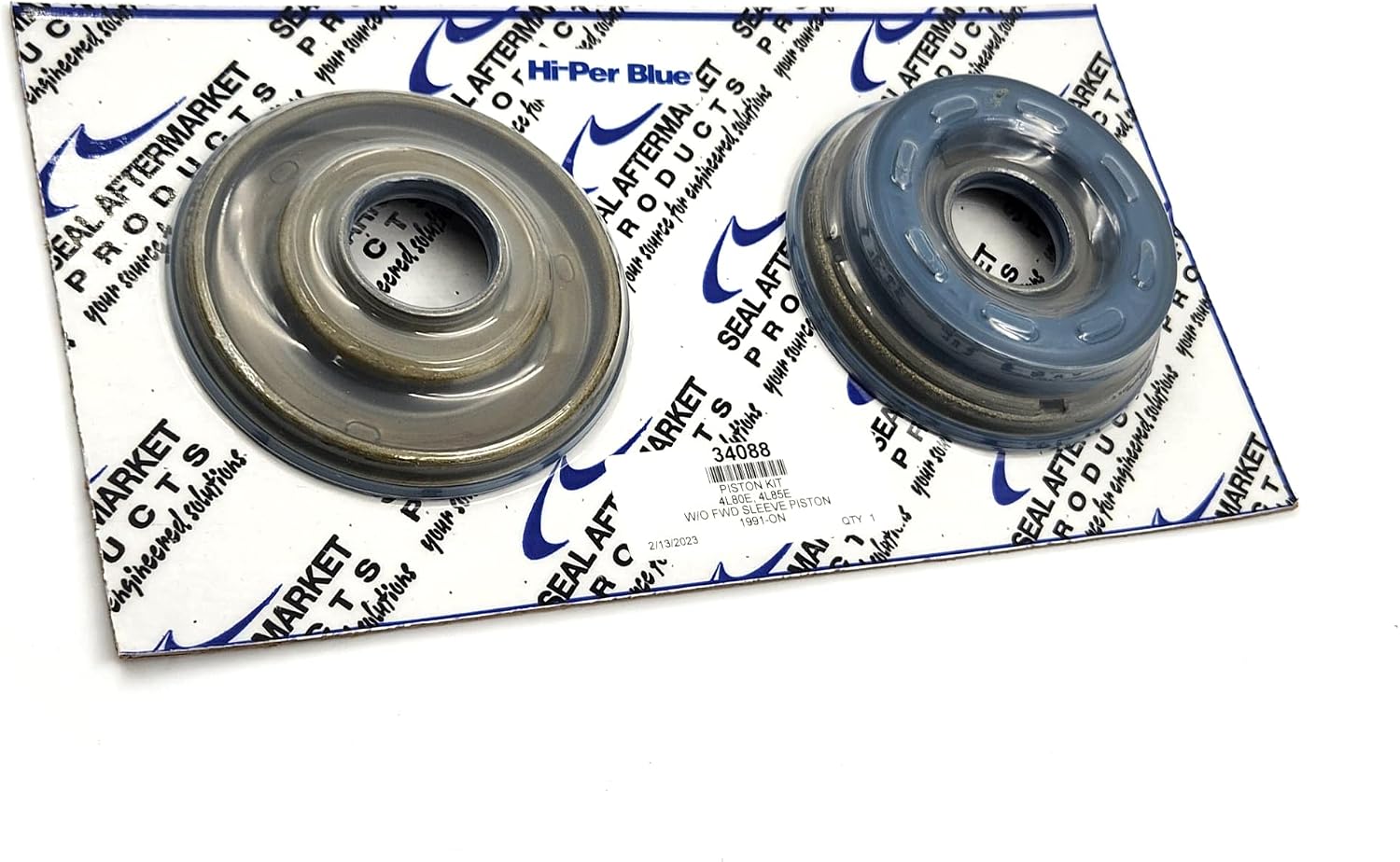

Two molded clutch pistons for the GM 4L80E and 4L85E. The forward clutch sleeve piston is not included, per the package label.
Yes. The kit is labeled for both the 4L80E and the 4L85E, 1991-on.
The sealing lips are bonded to the piston, so there is no loose seal to roll or pinch during assembly, and the bonded rubber holds its sealing shape longer than an old piston that has taken a heat set.
Frictions, steels, drum sealing rings and the overhaul gaskets and seals. Inspect each drum bore and replace any drum that is scored or cracked.
Air check the assembled clutch on the bench. A good clutch applies with a solid thump and holds; a hiss or weak apply means the piston, the seal rings or the drum is leaking.
