4T65E Transmission Master Rebuild Kit, GM 3.4/3.5/3.8L 2001-2003

If your 2001-2003 Impala, Monte Carlo, Century, LeSabre, Grand Prix, Bonneville, Rendezvous, Aztek, Montana or Silhouette is flaring on the 1-2 or 3-4 shift, shuddering under light throttle, or setting a long-shift code that a new solenoid did not cure, the clutches inside the 4T65E are the usual suspect. This master rebuild kit is put together for the 3.4L, 3.5L and 3.8L front-drive versions of those years and corresponds to OE overhaul number T06200C (made up of T06202C, T062080C and T062081C), so you get matched frictions, pistons, band, filter and sealing parts in one box instead of collecting them piece by piece.

What the master rebuild kit does in a 2001-2003 4T65E

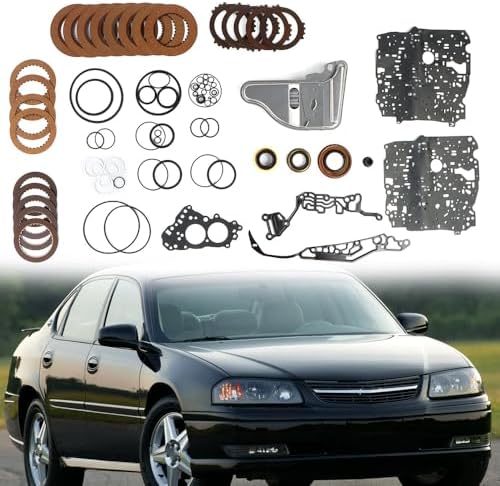

The 4T65E drives through a chain to a transversely mounted geartrain, and every gear depends on clutch packs and bands that are applied by fluid routed through sealing rings, bonded pistons and the channel plate gaskets. When the frictions wear thin, each piston needs more travel and more oil before the pack holds, so the PCM stretches the shift and then raises line pressure to compensate. This kit renews that entire apply system: the friction clutch set, bonded pistons and rubber piston seals, sealing rings, metal-clad seals, the paper and rubber gasket set, O-rings, the coast band and the filter. Steels are not on the contents list, so reuse yours only if they are flat and free of heat marks.

Symptoms that point to this rebuild

• Slip or flare between 1-2 or 3-4, worse when the fluid is hot or under heavy throttle
• P1811 (maximum adapt and long shift) or P0730 (incorrect gear ratio) that returns after clearing
• Delayed or harsh engagement into Drive, a sign of a worn forward band or apply circuit
• Dark, burnt-smelling fluid with friction material on the pan magnet
• Fluid weeping from more than one seal, the vent or the channel plate area

How to confirm the clutches are the problem

Rule out the cheap causes first: fluid level and condition, the pressure control solenoid and wiring. Transmission Digest explains how the 4T65E PCM sets P1811 when a shift takes longer than 0.65 second twice in one drive cycle, and sets P0730 when it sees slip lasting more than six seconds in a gear. Watching shift time and the adaptive pressure (TAP) cells on a scan tool tells you which pack is slipping; second-clutch slip shows in second, third and fourth, while third-clutch slip shows only in third. Our 4T65E problems and diagnosis guide walks through the full process, and the 3-4 clutch failure guide covers the most common burnt pack.

Fitment

This kit is listed for 2001-2003 GM front-drive cars and vans with the 3.4L, 3.5L or 3.8L V6: Buick Century, LeSabre, Park Avenue and Rendezvous; Chevrolet Impala and Monte Carlo; Oldsmobile Aurora, Intrigue and Silhouette; and Pontiac Aztek, Bonneville, Grand Prix and Montana. Treat 2003 as the year to double-check. Transmission Digest reports that GM replaced the dual sprag input and third-clutch arrangement with a pawl-clutch design on some 2003 units, which changes parts of the stackup. Read the ID tag on the case, compare the old frictions to the new ones before assembly, and send us your year and VIN if anything does not match. Every other part we carry for this unit is on the 4T65E parts page.

Install notes

Air-check each drum after it is resealed, then measure every clutch pack instead of trusting stack height. GM does not publish clutch clearances for this unit, and Transmission Digest notes that second and third packs often come out loose even with correct parts; the shop rule of thumb it cites is 0.008-0.012 inch per friction plate. Inspect the drums, bushings and pump before reassembly; a worn or cracked drum will undo a fresh kit, so swap in a replacement input drum if yours fails inspection. If the valve body bores are worn on a 2001-2002 car, a 2000-2002 valve body saves chasing pressure problems later. Fill with Dexron VI ATF, check the level hot, and run a shift adapt relearn so the PCM learns the new clutches.

Which cars does this 4T65E kit fit?

It is listed for 2001-2003 3.4L, 3.5L and 3.8L front-drive applications including the Century, LeSabre, Park Avenue, Rendezvous, Impala, Monte Carlo, Aurora, Intrigue, Silhouette, Aztek, Bonneville, Grand Prix and Montana. Send us your VIN if you want it checked before it ships.

Does the kit include steels?

No steels are listed. The contents are frictions, bonded pistons, piston seals, sealing rings, metal-clad seals, gaskets, O-rings, the coast band and a filter. Replace any steel that is blued, warped or glazed.

My car is a 2003. Will it fit?

It is listed for 2003, but GM changed the input and third-clutch design on some 2003 units. Check the case ID tag and compare the old frictions with the new ones before you start stacking packs.

What else should I replace during the rebuild?

Inspect the drums, bushings and pump. A cracked drum, worn pump or worn valve body bores will bring the same slip back, so replace those hard parts if they fail inspection.

What fluid and relearn does it need?

Use Dexron VI ATF, check the level at operating temperature, and run a shift adapt relearn with a scan tool after the rebuild.
