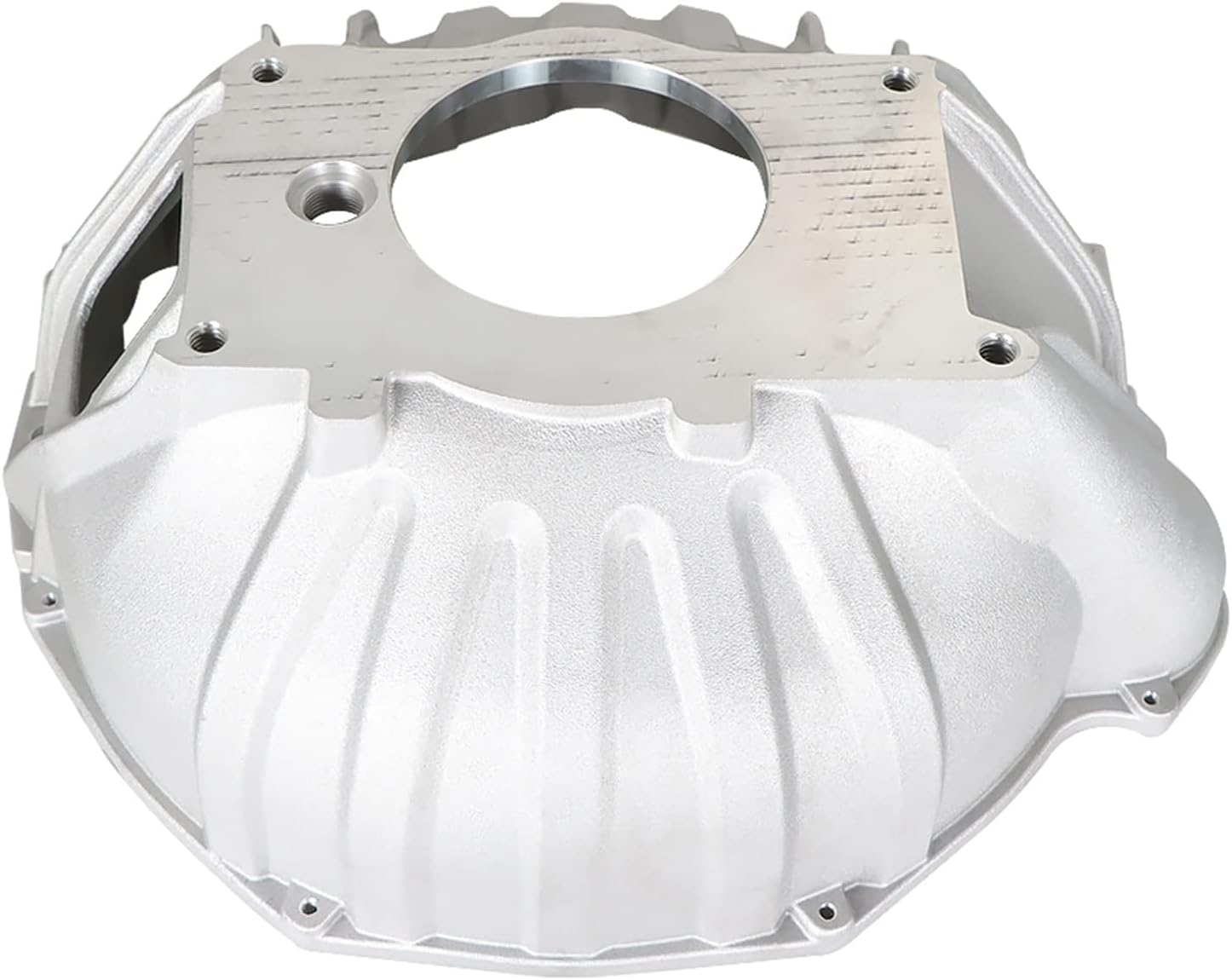

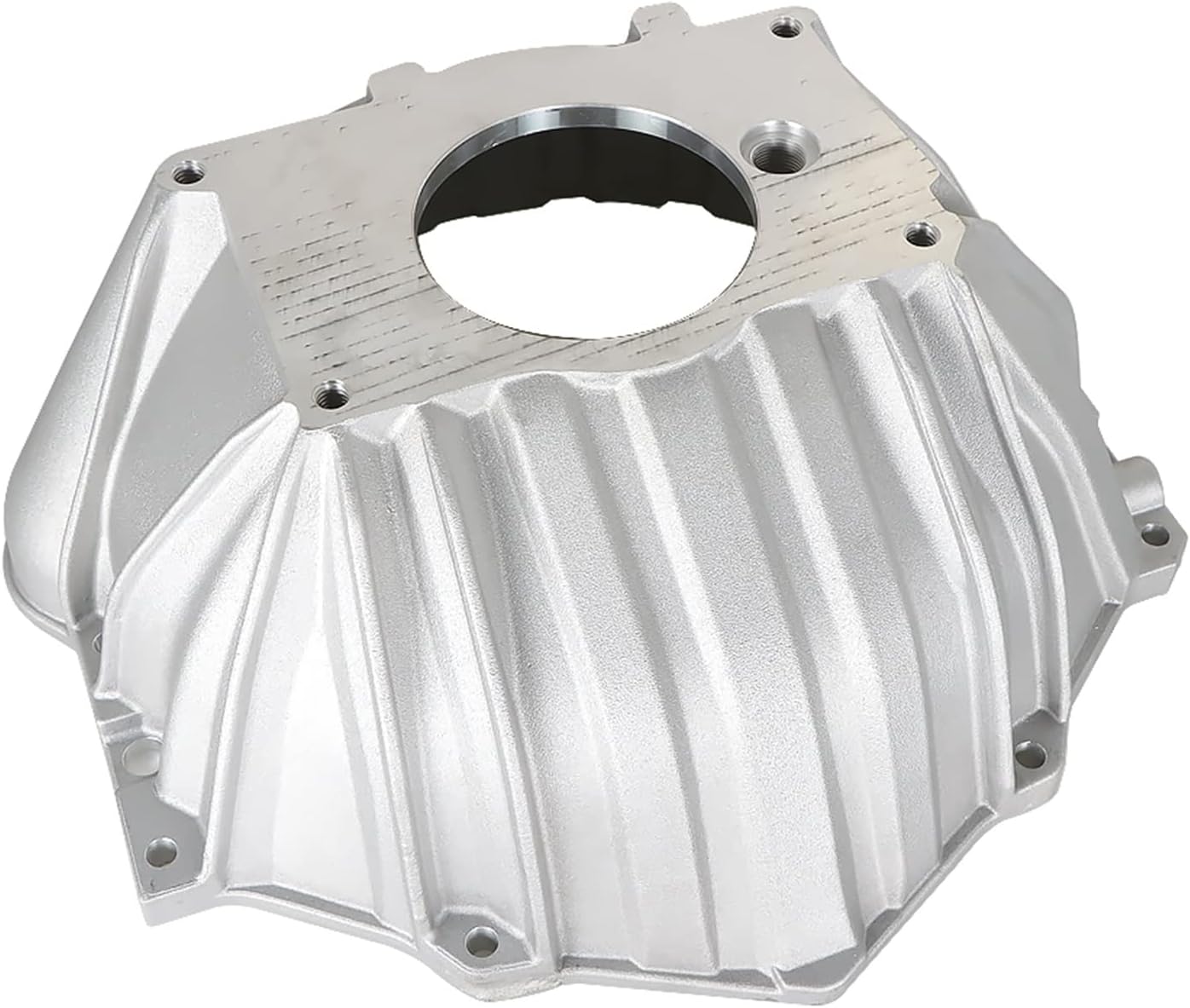

GM 621 bellhousing for small and big block Chevy manual swaps: fits Muncie 4-speeds with a 4.675 in. bearing retainer and an 11 in. clutch.
Converting a Chevelle, Camaro, Nova or Impala from automatic to a four-speed, or replacing an original housing that cracked at the fork boss, both start with the same part: a GM 621 bellhousing. This one follows the GM 3899621 pattern, the housing Chevrolet used to bolt small block and big block V8s to its Muncie four-speeds with an 11 inch clutch. It accepts a 168-tooth, 14 inch flywheel, centers a GM transmission with a 4.675 inch front bearing retainer, and has the threaded hole for the factory Z-bar clutch linkage, so a stock-style pedal setup connects without fabrication.
The bellhousing does more than cover the clutch. Its rear bore is the only thing that locates the transmission on the engine, by gripping the outside diameter of the front bearing retainer on the gearbox. If that bore is not concentric with the crankshaft, the input shaft runs at a slight angle to the pilot bushing, and every revolution loads the pilot, the input bearing and the clutch disc hub unevenly. The housing also carries the clutch fork pivot, the starter's location relative to the flywheel ring gear, and the mounting point for the Z-bar linkage. On a 621 housing the fork pokes straight out the side, which is why it suits the cars GM designed around that layout and not later cars with an angled fork.
Measure the outside diameter of the front bearing retainer on your transmission before you order. The Muncie M20, M21 and M22 and the Saginaw that shares the same retainer size are the boxes this housing is built for; a Ford, a Borg-Warner or a GM unit with a different retainer will not pilot correctly no matter how well the bolts line up. Count your flywheel teeth, since this housing is for the 168-tooth, 14 inch flywheel with an 11 inch clutch. If you are rebuilding the gearbox at the same time, our 1966-1974 Muncie bearing and synchro kit and 1963-1965 Muncie M20/M21 kit cover the internals. Our guide to automatic vs manual transmission repair cost helps if you are still deciding whether a manual conversion makes sense.
Listed coverage is Chevelle, Malibu and Monte Carlo 1964-1988; El Camino 1959-1987; Impala, Caprice, Bel Air, Biscayne, Brookwood, Kingswood, Nomad and Sedan Delivery 1959-1988; Corvette 1963-1981; Camaro 1967-1981; and Chevy II and Nova 1968-1974. It does not fit 1962-1967 Chevy II and Nova, whose transmission tunnel is too narrow, or Monza and Vega, whose clutch fork enters at a 45 degree angle. Reproduction 621 housings are commonly paired with a starter that has an iron nose housing, so check your starter before final assembly. If you are not sure your car or transmission matches, send us the year, model and transmission ID and we will check it. Running a Saginaw instead of a Muncie? The Saginaw 4-speed bearing and seal kit is the matching rebuild kit, and the rest of our gearbox parts are in the hard parts section.
| Casting / Part Number | |
| Clutch Size | |
| Flywheel Clearance | |
| Transmission Retainer Bore | |
| Clutch Linkage | |
| Weight | |
| Does Not Fit |
Doing this repair right usually means replacing these at the same time. Same transmission, ships together.
GM four-speeds with a 4.675 inch outside diameter front bearing retainer, which covers the Muncie M20, M21 and M22 and the Saginaw that shares that retainer. Measure your retainer before ordering.
It clears a 168-tooth, 14 inch flywheel with a factory 11 inch clutch disc, the standard setup for small block and big block Chevy V8 manual cars of this era.
No. It does not fit 1962-1967 Chevy II and Nova because the transmission tunnel is too narrow. It is listed for 1968-1974 Chevy II and Nova.
Yes. The housing has a 1/2-13 threaded hole for the Z-bar linkage stud, so a factory mechanical pedal and Z-bar setup bolts up without fabrication.
It is good practice. Sweep the rear bore and face with a dial indicator mounted on the crank. A housing that is out of alignment wears out the pilot bushing and input bearing and can cause the transmission to jump out of gear.
