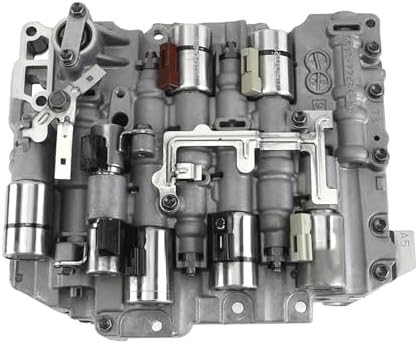

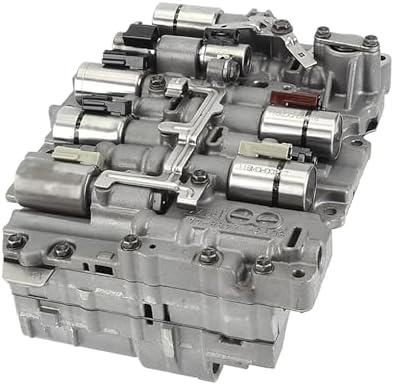

Complete TF-81SC valve body with the solenoids already installed, for the AF21/AF40 six-speed in Ford Fusion, Mazda 6, Volvo XC90 and Lincoln MKZ.
If your Ford Fusion, Mazda 6, Volvo S60 or XC90, or Lincoln MKZ has gone harsh on the 2-3 shift, started shuddering around 40 mph under light throttle, or thrown a solenoid code like P0741, P0751, P0756 or P0776, the usual cause in these cars is the AF40/TF-81SC valve body. This listing is a complete TF-81SC valve body with the shift and pressure control solenoids already installed and wired to the internal connector, so the hydraulic and electrical sides of the repair arrive as one unit.
The TF-81SC is Aisin-Warner's six-speed transaxle, built for Ford, Mazda, Volvo, Lincoln and Land Rover from the mid-2000s on. Inside it, the valve body is the hydraulic brain: it routes line pressure through a maze of precision aluminum bores and steel spool valves to apply each clutch pack, and it carries the shift and pressure control solenoids the transmission computer pulses to time every shift and manage torque converter clutch apply.
Sonnax, which sells an oversized modulator valve kit for this exact unit, documents the root cause: wear at the inboard end of the solenoid modulator valve bore lets feed pressure run high, which floods the solenoids and slows their reaction time, while wear further out drops modulator pressure instead. Once those aluminum bores are worn, cleaning the old body and bolting on new solenoids does not hold for long - the leak path is in the casting, not the solenoids.
Pull the codes first. Solenoid performance or ratio-error codes alongside a flare or shudder point at the valve body rather than the clutches themselves. Our Aisin harsh and delayed shift guide walks through separating a valve body fault from a worn clutch pack or low fluid level before you spend money, and our valve body cleaning and inspection guide covers what worn bores actually look like if you pull the old unit to check.
This valve body fits the AF21B/AF40-TF81SC six-speed as used in the Ford Fusion (2006-2008), Mazda 6 (2005-2012), Mazda CX-7 and CX-9 (2007-2009), Mazda MPV six-speed (2006-2016), Mercury Milan (2006-2008) and Montego (2005-2007), Lincoln MKZ, MKX and Zephyr (2006-2008), Volvo S60/V60/V70/XC60/XC70/XC90, Land Rover Freelander (2006-2014), and the Peugeot 407 and Vauxhall Insignia versions of the same AF40 case. The TF-80SC and TF-81SC bodies look alike but are not interchangeable, so verify the casting marks and the solenoid connector against your old unit before ordering, or match by year and VIN. Browse the rest of our Aisin transmission parts if you need other components for this family of units.
Work from underneath with the pan and filter off. Drop the pan, pull the filter, unplug the internal harness at the valve body, then back the body bolts out in a spiral from the outside in so the separator plate does not warp as it releases - note the length and location of every bolt, since they are not all the same length on this unit. Transfer the manual valve link to the new body, seat it squarely to the case so the manual valve engages the detent lever, and torque the bolts in reverse pattern from the center out. Fit a new filter and pan gasket - our TF-80SC/AF40 filter and pan gasket kit is sized for this case - and refill through the fill plug with the fluid the platform calls for: Mercon LV for Ford and Mazda applications, Volvo/JWS 3309 spec fluid for Volvo. Level is set by the fill plug with the fluid at temperature, not by a dipstick. If the converter clutch shudder was part of your original complaint, check the TF-81SC TCC solenoid while the valve body is out, since it is a quick add-on at that point and cheap insurance against a second teardown. Run the adaptive relearn after the first drive cycle so the computer stops compensating for the old body's wear pattern.
| OEM reference | |
| Also cataloged as | |
| Assembly | |
| Quantity | |
| UPC | |
| Fitment |
Doing this repair right usually means replacing these at the same time. Same transmission, ships together.
Usually, since the pressure control and TCC solenoids that manage lockup apply come installed on this unit, but if the converter itself has already been damaged by prolonged slip, the shudder can return even with a good valve body. If the shudder has been going on for a long time before the repair, have the converter checked too.
No. They look similar and share the same AF40 case family, but the TF-80SC and TF-81SC valve bodies are not interchangeable. Match the casting marks and solenoid connector on your old unit, or confirm fitment by year and VIN before ordering.
Ford and Mazda AF40/TF-81SC applications use Mercon LV. Volvo applications use the Volvo/JWS 3309 spec fluid. Set the level through the fill plug with the fluid at operating temperature, not with a dipstick.
Solenoid performance codes like P0741, P0751, P0756 and P0776, combined with a harsh or flared 2-3 shift or a light-throttle shudder near 40 mph, point to worn valve body bores rather than a single bad solenoid, since the solenoids on this listing are already replaced as part of the assembly.
Yes. Change the filter and pan gasket and refill with fresh fluid at the same time so debris from the old unit does not circulate through the new valve body's bores and solenoids.
Yes, both use the same AF40/TF-81SC case as the Ford and Mazda applications in this listing. Confirm the casting and connector against your old unit before ordering, since the Freelander and XC90 ran this transaxle across more than one model generation.
