TH400 valve body for 1965-1990, remanufactured and ready to install. Ships fast from the USA.

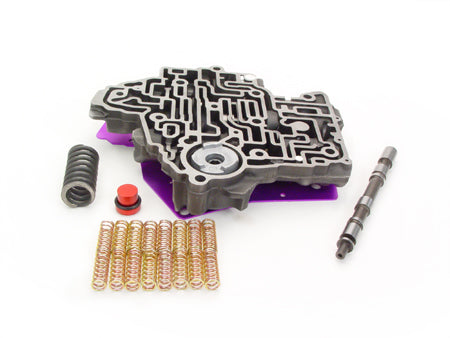

Bracket racers and off-road competitors who cannot or do not want to run a trans-brake still need every shift point under their own control - this TCI valve body for the TH400, 1965-1990, is full manual on a reverse shift pattern, with 1st and 2nd gear engine braking built in and no automatic logic left to second-guess a launch or a hard stop.
Full manual means the governor and throttle-valve circuits that set shift points on a stock TH400 are gone - the transmission will not upshift or downshift on its own, so every gear change happens because the lever moved. The reverse pattern flips the shift gate so pulling the lever under hard acceleration moves it toward a higher gear instead of toward neutral, which keeps vibration or a bump at speed from kicking the transmission out of gear. Built into the same valve body is engine braking in 1st and 2nd, which holds the engine against the drivetrain on deceleration instead of freewheeling, useful coming off the track or down a grade. None of this includes a trans-brake circuit - it is built specifically for applications where staging against the converter is not the plan, by rule or by choice.
Do not shift into 1st gear above roughly 15 mph with this valve body - the full-manual gearset is not built to handle a forced downshift into 1st at speed, and doing so risks damaging the transmission. If you need staging against the converter instead of engine braking, our reverse-pattern transbrake kit adds that circuit on the same reverse gate.
This covers the TH400 as used in 1965-1990 GM trucks, motorhomes, high-performance cars, and the Jaguar and Rolls-Royce applications that also ran this transmission, but a full-manual valve body is a dedicated race part. It needs an aftermarket shifter built for a reverse pattern gate, not a stock column or console shifter, and you should match your case casting against this kit before ordering. The TH400 parts collection has the rest of what we carry for this transmission.
Confirm your shifter and linkage are set up for a reverse pattern gate before bolting this in, and road test the engine braking function in both 1st and 2nd at low speed before relying on it. Refill with Dexron ATF after changing the filter and pan gasket, and verify line pressure since full manual control runs higher pressure through the clutches than a stock shift pattern does - our TH400 valve body testing guide covers where to check it. Pair this with a master overhaul kit for fresh clutches and steels if the transmission behind it hasn't been rebuilt recently, since higher sustained pressure works against worn friction material fast, and a quick-spool valve system if you're also raising the converter's stall speed to match.
| Transmission | TH400 |
| Year Range | 1965-1990 |
| Condition | Remanufactured / updated |
| Shipping | Ships from the USA |
Doing this repair right usually means replacing these at the same time. Same transmission, ships together.
No. This is a full-manual reverse-pattern valve body with 1st and 2nd gear engine braking built in, for applications where a trans-brake is not used or not legal. We carry a separate reverse-pattern transbrake kit if you need staging instead.
A reverse pattern gate moves the lever toward a higher gear instead of toward neutral if it gets bumped under hard acceleration, which a stock forward-pattern shifter can do at the wrong moment.
No - do not force a downshift into 1st above roughly 15 mph. The full-manual gearset isn't built to handle that and it risks damaging the transmission.
No. Full manual control on a reverse pattern needs an aftermarket shifter built for that gate, not a stock column or console shifter.
In 1st and 2nd gear, it holds the engine against the drivetrain on deceleration instead of letting it freewheel, which gives more control coming off the track or down a grade.
Confirm the shifter and linkage match the reverse pattern gate, verify line pressure since full manual control runs higher sustained pressure than a stock pattern, and pair it with a master overhaul kit if the clutches haven't been refreshed.
