GM 7.5 Differential Master Overhaul Kit (ZK GM7.5)

The small GM 10-bolt is under more 1980s and 1990s GM rear-drive cars and light trucks than almost any other axle: S-10 and S-15 pickups, Blazer and Jimmy, Astro and Safari vans, Camaro and Firebird, and the G-body Monte Carlo, Cutlass, Regal, Malibu and El Camino. When one of those rears starts to whine on the highway, howl on decel, or clunk when you take up slack, the fix is a full bearing job, and this USA Standard Gear ZK GM7.5 master overhaul kit is everything for the center section of the 1982-1999 7.5-inch and 7.625-inch axle in one box.

What a master overhaul kit does in a GM 7.5 10-bolt

The 7.5 is a C-clip axle with an oval cover. Inside, the pinion rides on two tapered roller bearings held in preload by a collapsible crush sleeve, and the carrier turns on two side bearings with shims behind them that set both carrier preload and backlash. Chevy Hardcore's 10-bolt identification guide lists the 7.5's pinion shaft at 1.438 inches, smaller than the 1.625-inch pinion in the 8.5, which is one reason this axle tolerates abuse poorly once its bearings loosen. When the pinion bearings lose preload the pinion moves under load, the tooth contact pattern walks off the gear, and the axle starts to sing.

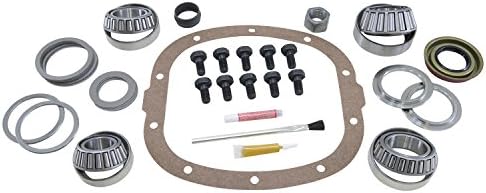

This kit replaces all four of those bearings with Koyo bearings and races, and it includes the pinion seal, a complete shim kit, ring gear bolts, a pinion nut, a crush sleeve, thread locker, gear-marking compound with a brush, and a cover gasket. It does not include the ring and pinion, the carrier, or the outer axle bearings and seals.

Symptoms that point to a 7.5 bearing rebuild

• Whine that rises and falls with road speed, louder on acceleration, on coast, or both
• A low growl from the center of the car that gets worse with a load in the bed
• Clunk on the shift into drive or when you tip in and out of the throttle
• Gear oil around the pinion yoke or on the driveshaft from a failed pinion seal
• In-and-out play at the pinion yoke, or metal on the cover magnet

How to confirm before buying

Drive at a steady speed, then lift off without braking. Noise that changes between drive and coast is gear mesh or pinion bearing; noise that changes as you swerve is a wheel bearing. On stands, rock the yoke up and down and in and out. Then pull the cover, wipe a few teeth with the marking compound and read the pattern. If the gears are chipped or blued, replace the ring and pinion along with the bearings.

Fitment

This is the 1982-1999 kit for the GM 7.5-inch and 7.625-inch 10-bolt rear. The 7.625 uses the same housing with a slightly larger ring gear. Earlier 1981-and-older 7.5 rears and the 2000-and-newer units use different bearings and are covered by other kits, so confirm your year before ordering. The oval cover and 3 1/4 inch spacing between the bottom cover bolts identify a 7.5 versus the larger 8.5 and 8.6. If you are rebuilding a truck rear, compare our GM 8.6 master overhaul kit and the GM 8.5 master kit, or send us your year and VIN.

Install notes

• Mark and note the pinion depth from the head of the gear. Chevy Hardcore lists two deck heights for this axle depending on ratio, so the shim stack changes if you change gears.
• Drive the new races in fully with a pinion race driver set, and use the new crush sleeve and pinion nut.
• Set pinion bearing preload with an inch-pound torque wrench, creeping up slowly so you do not over-crush the sleeve.
• Shim the carrier and check backlash with a dial indicator, then confirm the pattern with the included compound.
• Fill with 75W-90 gear oil, adding friction modifier on a clutch-type limited slip. Inspect the axle bearings and seals while the shafts are out.

More setup tools are in our tools collection.

Does this kit fit a 2000 or newer S-10 or Blazer 7.5 rear?

No. This ZK GM7.5 kit is listed for 1982-1999 7.5 and 7.625 axles. The 2000-and-newer units use different bearings and need the later kit. Send us your year and VIN if you are unsure.

Can I reuse my old ring and pinion with this kit?

Yes, if the teeth are not chipped, pitted or heat-blued. Note the original pinion shim and read the contact pattern after setup. Worn gears should be replaced at the same time.

Are ring gears or axle bearings included?

No. The kit covers the carrier and pinion bearings and races, pinion seal, shims, crush sleeve, pinion nut, ring gear bolts, thread locker, marking compound and cover gasket. Gears, carrier and outer axle bearings are separate.

How do I know if my car has a 7.5 or an 8.5 10-bolt?

The 7.5 has an oval cover and about 3 1/4 inches between the bottom center cover bolt and its neighbors. The 8.5 has a rounder cover with a bulge for the ring gear and wider bolt spacing.

What fluid does the GM 7.5 take after a rebuild?

75W-90 gear oil. If the axle has a clutch-type limited slip, add the friction modifier additive.
