Compresses the clutch piston return spring in a Ford 10R80 drum under a press so the snap ring clears its groove without the piston cocking.

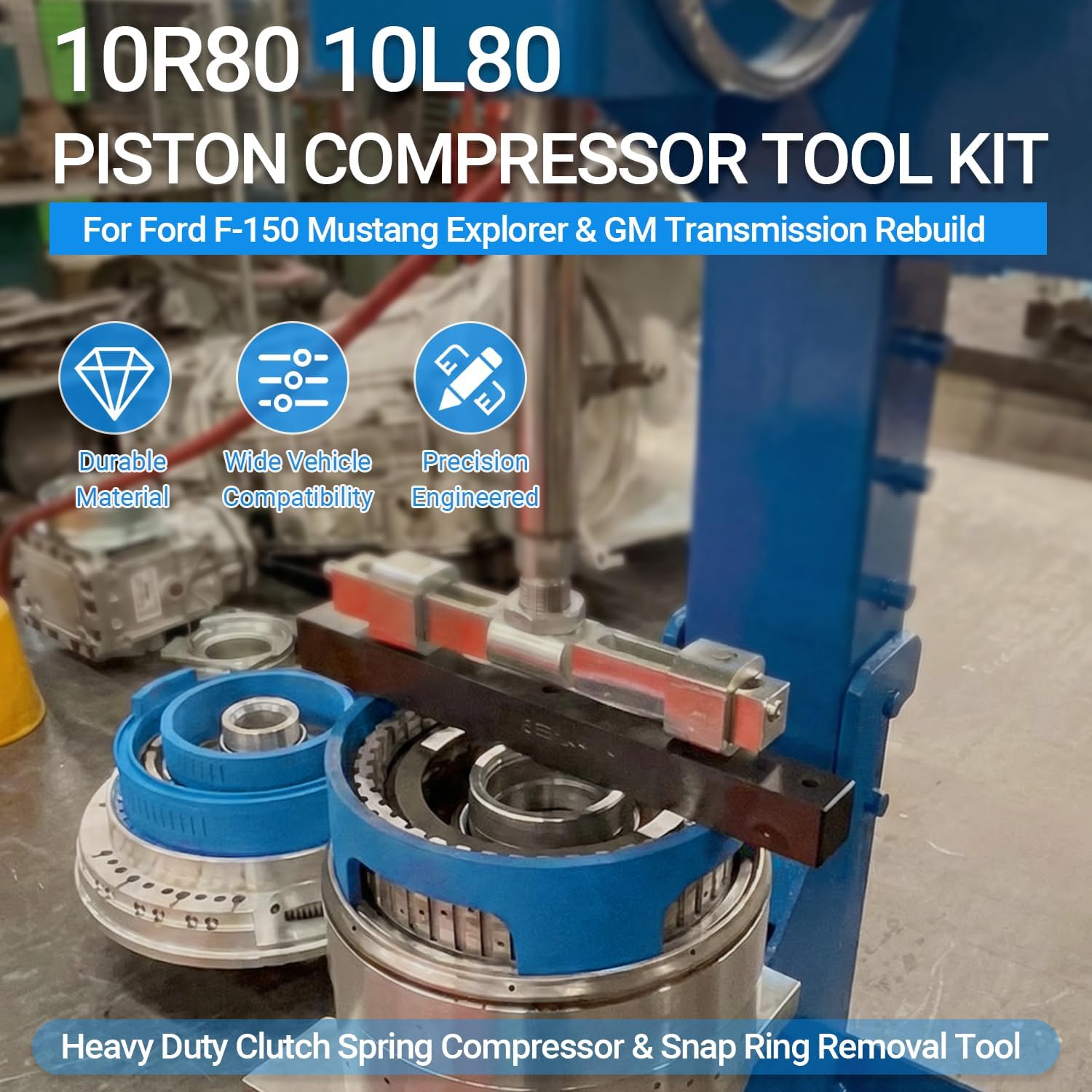

If you are rebuilding a Ford 10R80 out of a 2017-2023 F-150, an Expedition, a Mustang or a Ranger, sooner or later every clutch drum on the bench is holding a return spring under a snap ring that will not move until the spring stack is pushed down. This three-piece set of machined steel compressor plates is sized to the drum diameters in the 10R80 and its GM twin, the 10L80, so you can put the drum in a press, load the retainer square and pull the ring with ordinary snap ring pliers. It is aimed at shops and serious DIY rebuilders doing more than one unit, because the steel plates are built to take repeat press cycles without wearing or deforming.
The 10R80 builds ten forward speeds from four planetary gearsets and six shifting clutches. Each clutch has an apply piston, and each piston is pushed back off its pack by a return spring assembly that is captured by a snap ring in a groove. To get a piston out for new seals, or to swap a clutch pack, you have to take the spring load off that ring first. The problem with a universal spring compressor or a homemade plate is that it bears on one side of the retainer. The retainer tilts, the ring binds in its groove, and when it finally lets go the retainer can jump. The three plates in this kit sit flat across the retainer for the drum they match, so the press ram pushes the whole spring stack down evenly and the groove opens up all the way around.
Not every harsh-shifting 10R80 needs its drums opened. A lot of complaints on 2017-2020 trucks are handled first with a module update, a keep alive memory reset and the adaptive learning drive cycle, which is the path Ford laid out in TSB 23-2152. Our 10R80 F-150 shift problems guide walks through that order. The units that do come apart are the ones with mechanical faults: CDF cylinder sleeve movement on transmissions built on or before 15 August 2022, F clutch plates brinelling into the clutch and planetary container on later builds (look for gray silt on top of the filter), and low one-way roller clutch failure. The 10R80 common problems and fixes guide lays out how to sort those before you pull the pan. Each of those repairs puts clutch pistons in your hands, and that is when this kit earns its spot on the shelf.

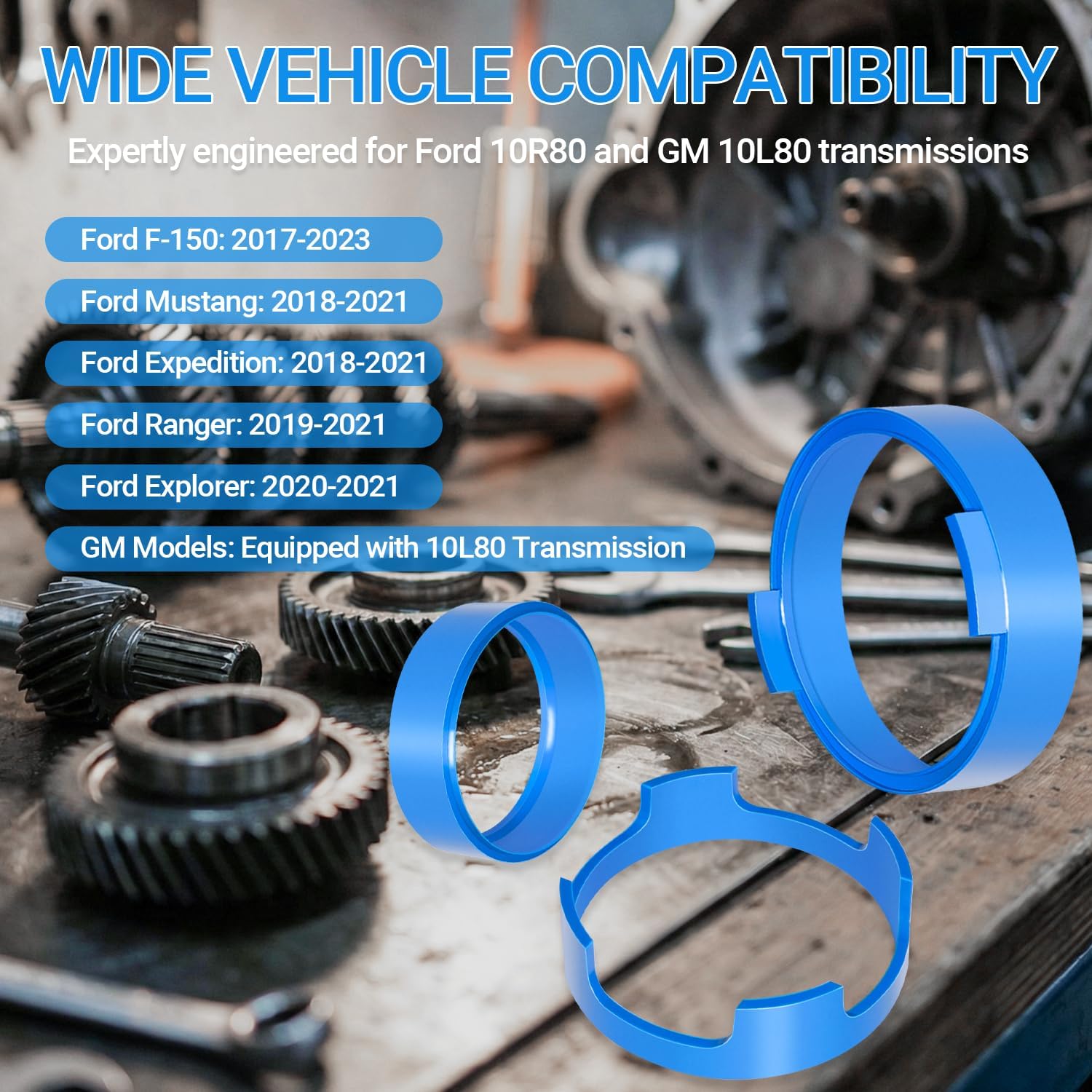

The listing covers the Ford 10R80 in the 2017-2023 F-150, 2018-2021 Mustang, 2018-2021 Expedition, 2019-2021 Ranger and 2020-2021 Explorer, plus GM trucks and SUVs with the 10L80. It does not fit the 10R60 used in the Bronco and many Explorers, or the heavy-duty 10R140. Ford has made internal updates to the 10R80 over its run, so if you are working on a newer unit than the years listed, compare drum diameters before you start, or send us the year and VIN and we will check it. You can see every part we carry for this transmission on the 10R80 parts page.
If you would rather work with a softer contact face on aluminum drums, we also stock a nylon 10R80 clutch piston compressor kit. The steel set here is the one to pick when the tool will see heavy shop use.
| Fits | |
| Vehicle coverage | |
| Pieces | |
| Material | |
| Weight | |
| Required equipment |
Yes. The listing covers both, since the two transmissions share the same architecture. It does not fit the Ford 10R60 used in the Bronco or the heavy-duty 10R140.
A foot-operated press or a small hydraulic shop press is enough. The spring force is moderate; the plate just needs to be pushed straight down so the retainer stays level.
They do the same job. Steel holds up better to heavy repeat use in a busy shop. Nylon with a rubber face is gentler on aluminum drums and seal lips. Pick based on how often you rebuild and what you prefer to put on the parts.
In practice, yes. Ford TSB 24-2254 has the C, D and F clutch assemblies moved into a new CDF cylinder, which means compressing each return spring to remove and reinstall its snap ring.
No. The kit is the three compressor plates. Use your own snap ring pliers once the spring stack is compressed past the groove.
Fill with Mercon ULV, check the level at operating temperature, then run Ford's adaptive learning drive cycle. A rebuilt 10R80 will shift poorly until the module relearns clutch fill.
