Three-piece nylon compressor set that squeezes the 10R80 clutch piston return springs flat under a press so the snap ring drops into its groove.

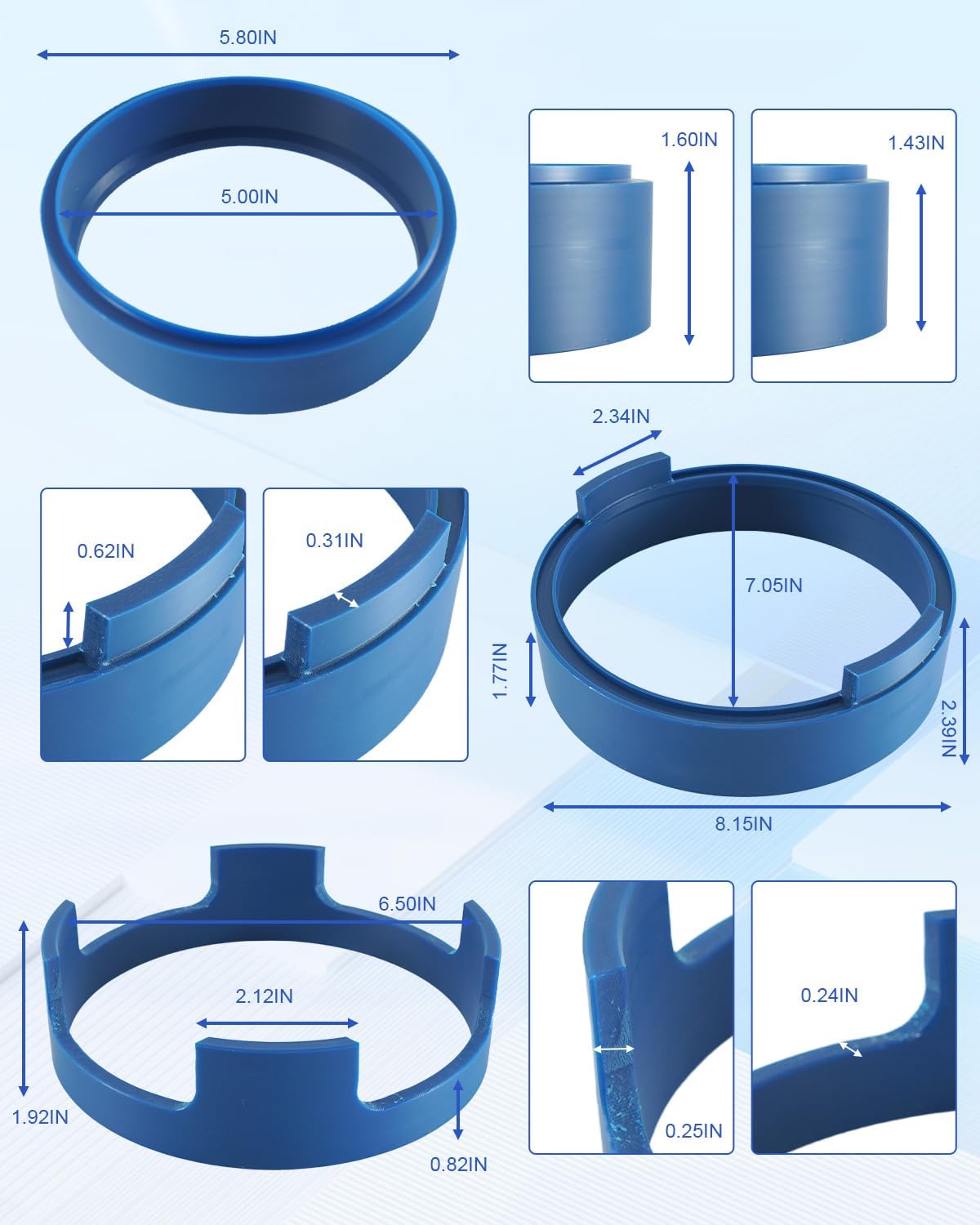

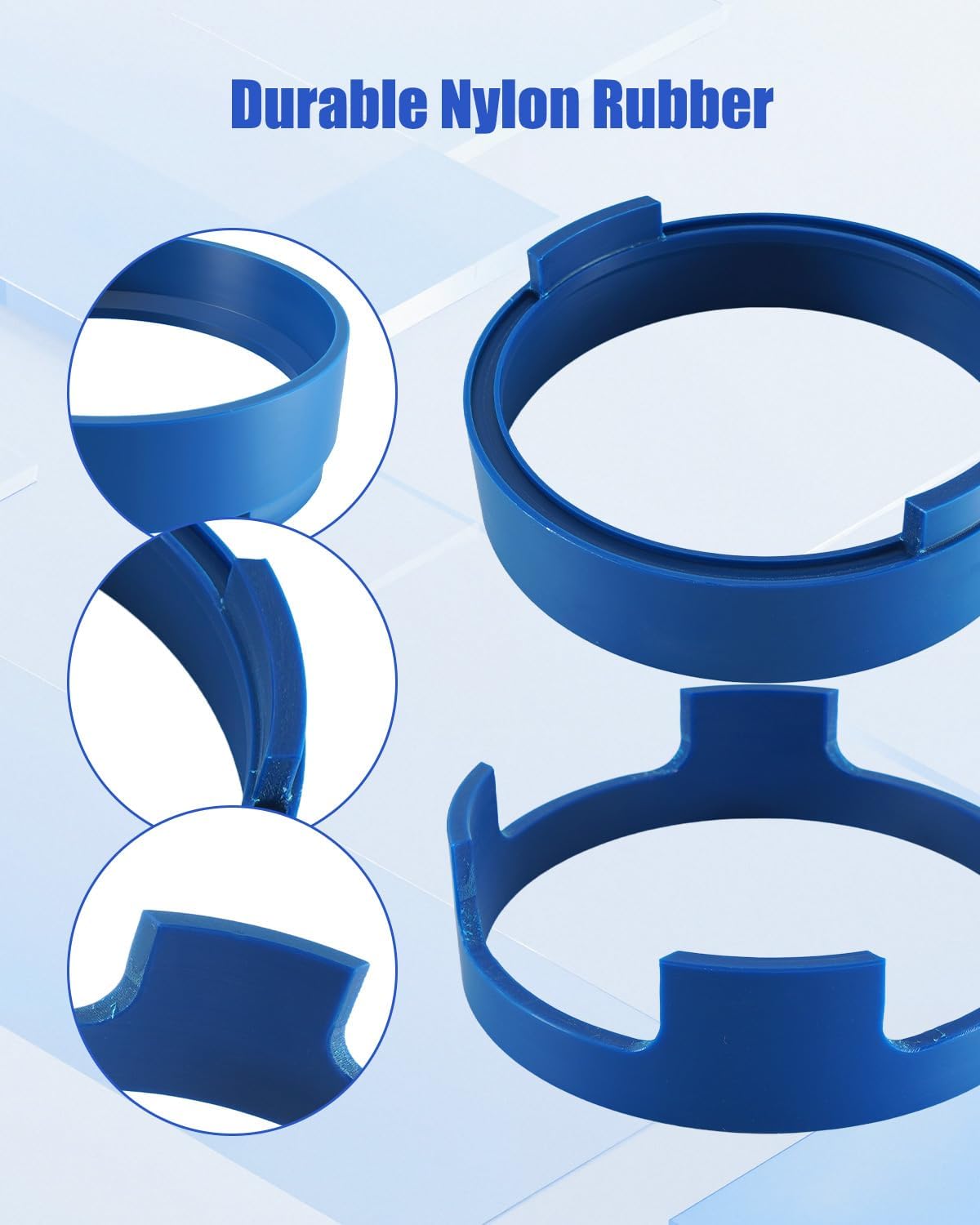

Rebuilders searching for a 10R80 clutch piston compressor usually have a Ford F-150, Expedition, Mustang or Ranger ten-speed torn down and a row of drums waiting on the bench, each one with a piston return spring locked under a snap ring. This kit is three compressor adapters machined from high-strength nylon with a rubber contact face. The point of the nylon is the parts it touches: 10R80 drums and pistons are aluminum, and the bonded piston seal lips sit close to the surface you are pressing on. A soft, full-face adapter takes the press load without marking the drum or nicking a seal, which is exactly how a fresh rebuild ends up back on the lift with a slipping clutch.
Each of the six shifting clutches in the 10R80 has an apply piston, and a return spring assembly pushes that piston back off the pack whenever the clutch is released. That spring assembly is held by a snap ring under preload. With the drum on a press, one of these three adapters goes over the spring retainer, the ram pushes the stack down evenly, and the snap ring groove opens up all the way around. The rubber face grips the retainer so the adapter does not walk sideways under load, and the nylon body spreads the force across the whole retainer instead of a few metal contact points. Once the ring is out you release the press slowly and lift the spring and retainer as one piece.
Harsh or delayed shifts on a 10R80 are not automatically a teardown. Ford's first step on many trucks is a module update and adaptive relearn, and the same symptoms can come from the pressure control solenoid. Our 10R80 pressure control (EPC) solenoid symptoms guide shows how to rule that out. When the problem is internal, the usual suspects are CDF cylinder sleeve movement on units built on or before 15 August 2022, which Ford fixes in TSB 24-2254 by moving the C, D and F clutches into a new cylinder, and low roller clutch failure. If you have an Expedition or Navigator, the 10R80 Expedition common problems guide covers the bulletins specific to those trucks. Any of these repairs means pistons out, and that is the job this kit is for.
Listed for the Ford 10R80 in the 2017-2023 F-150, 2018-2021 Mustang, 2018-2021 Expedition, 2019-2021 Ranger and 2020-2021 Explorer, and for the GM 10L80 that shares the same design. It is not for the 10R60 found in the Bronco and many Explorers, and not for the 10R140. If your unit is outside those years or you are not sure which ten-speed is in the vehicle, check the transmission tag or send us the year and VIN before ordering. Browse the rest of our 10R80 transmission parts for seals, drums and solenoids.
The kit weighs 1.67 lb and packs flat in a 9.22 x 9.14 x 2.76 inch box, so it stores in a drawer between jobs. For a shop that wants hardened plates for constant use, the steel 10R80 clutch piston compressor kit is the alternative.
| Pieces | |
| Material | |
| Item Weight | |
| Package Dimensions | |
| Fits | |
| Vehicle Fitment | |
| Press Type |
The 10R80 return springs are not heavy, and a foot or small hydraulic press is all the job calls for. The adapters are high-strength nylon built for that load. Do not bottom the springs out; compress only until the snap ring groove clears.
10R80 drums and pistons are aluminum with bonded seals near the pressing surface. Nylon with a rubber face is less likely to mark the drum or cut a seal lip. Steel lasts longer under constant shop use.
No. It is listed for the Ford 10R80 and the GM 10L80 only.
Piston seals, worn friction and steel plates, and the input shaft sealing rings. Size new sealing rings with a resizer before reassembly so they do not drag or leak.
Yes. A cut or rolled seal leaks apply pressure, so that clutch fills slowly or slips. You will feel it as a flare, a slide shift or delayed engagement, and an adaptive relearn will not fix it.
