10R80 Piston Compressor and Snap Ring Removal Kit 3-Piece

A 10R80 teardown stalls at the same point for most rebuilders: the clutch pack is out, and the piston return spring is still locked under its snap ring. This three-piece set of alloy press plates is made for that job on the Ford 10R80 and the GM 10L80. The listing covers units from the 2017-2023 F-150, 2018-2021 Mustang and Expedition, 2019-2021 Ranger and 2020-2021 Explorer. You set the drum in a shop or arbor press, either foot-operated or hydraulic, and the matching plate loads the retainer square so the ring comes out with pliers or a pick.

What the compressor does in a 10R80

The 10R80 makes ten forward speeds with six clutches packed into a short case. Each clutch has an apply piston, and a return spring assembly pushes that piston off the pack when the clutch releases. The spring assembly is held under preload by a snap ring. Press force has to land evenly on the retainer, or the retainer tilts, the ring binds, and the piston can be pushed over in its bore. Three plate sizes cover the different drum diameters, so each pack gets a plate that actually fits it instead of a shimmed universal adapter.

Why plate material matters

These plates are a high-density alloy rather than nylon. That trades a softer contact face for a plate that holds its round, flat shape over repeated press cycles. A compressor plate that ovals or dishes is worse than none, because it pushes harder on one side of the retainer. If you prefer a softer face against aluminum parts, put a clean shop rag or thin plastic sheet between plate and retainer.

Problems this tool prevents

• A cocked piston that tears a bonded seal lip on reassembly, leading to a slipping clutch after the rebuild
• A snap ring that goes back in partly out of its groove and lets go on the first hard apply
• Gouged drum walls or ring grooves from screwdrivers and C-clamps
• A retainer that springs loose when an improvised setup slips

When you need it

You only reach the return springs during an overhaul or clutch repair, so confirm the unit really needs to come apart. Ford's TSB 24-2254 traces harsh and delayed shifts on many units built on or before 15-Aug-2022 to CDF clutch cylinder sleeve movement, a repair that means opening the unit. Our 10R80 common problems and fixes guide covers that and the other failures that lead to a teardown, and the 10R80 F150 common problems guide is specific to the truck most of these units come from.

Fitment

Listed for the Ford 10R80 and GM 10L80. The applications given are F-150 2017-2023, Mustang 2018-2021, Expedition 2018-2021, Ranger 2019-2021 and Explorer 2020-2021. Later units and the related 10R60 or 10R140 may use different drum sizes, so compare the plate diameters to your drums before starting. More tools and parts for this unit are in the 10R80 parts collection.

Using it on the bench

• Center the drum on the press bed and pick the plate that sits fully on the spring retainer without touching the snap ring.
• Bring the ram down slowly only until the ring groove is clear, then remove the ring.
• Release the ram gradually and lift the retainer and spring assembly out as one piece.
• On assembly, compress only as far as needed, seat the ring, and check it all the way around before releasing.
• Lubricate new piston seals with Mercon ULV or assembly lube. A complete 10R80 overhaul kit supplies the seals, and a sealing ring installer sleeve kit handles the shaft rings.

Does this need a press?

Yes. The plates are used in a shop or arbor press, foot-operated or hydraulic. They are not a standalone screw-type compressor.

Will it work on a 10L80?

Yes. The listing covers both the Ford 10R80 and the GM 10L80, which share the same basic design.

Why three pieces?

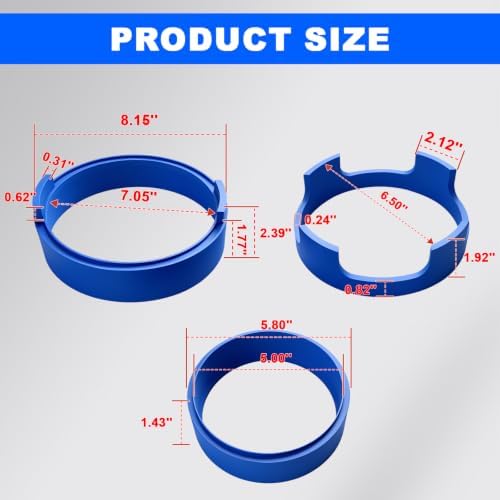

The 10R80 clutch drums are different diameters. Each plate matches a drum size so the load sits flat on its retainer.

Will the alloy plates scratch my parts?

They bear on the steel return spring retainer, not the drum wall. If you want extra protection, put a clean rag or thin plastic sheet between the plate and retainer.

What else do I need for the rebuild?

Snap ring pliers or a pick, an overhaul seal kit, sealing ring tools for the shafts, and Mercon ULV for assembly and fill.
