The heavy-duty thicker-steel reaction sun shell that fixes the number-one failure point in a 700R4 or 4L60E rebuild, so the unit stops splitting the shell and losing drive.

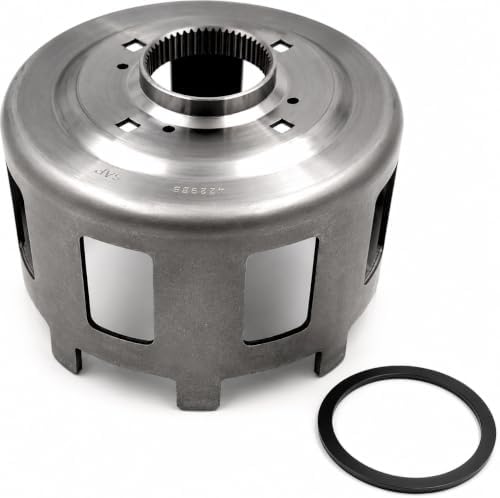

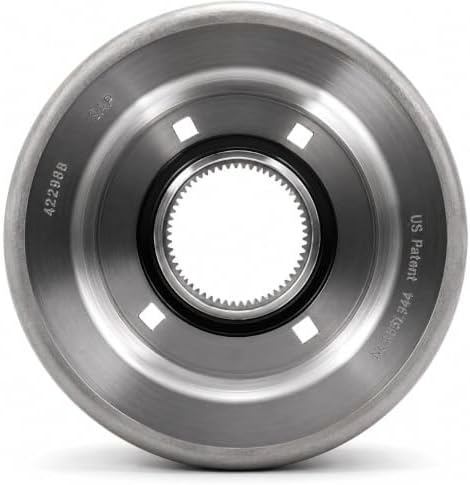

Ask any rebuilder where a 700R4 or 4L60E lets go and the reaction sun shell is near the top of the list. When the factory shell strips its splines or cracks at the hub, the truck or car loses reverse and upper gears and the pan fills with steel. This is the Beast reaction sun gear shell, part number 42298B, a thicker heat-treated steel shell built to replace the stock piece in GM 700R4, 4L60, 4L60E, 4L65E, 4L70E and 4L75E units from 1982 to 2013. It comes with an updated nylon thrust washer and interchanges with A74624A and NTP-51810B.
These transmissions build their ratios from two planetary gearsets. The reaction sun shell is the bell-shaped steel piece that connects the reverse input housing on the outside to the reaction sun gear on the inside, through a narrow splined hub. When the 2-4 band holds that housing, or the reverse input clutch drives it, the full load goes through those few splines. A factory shell is stamped from fairly thin steel, so under towing, a heavy right foot or extra power the splines round off or the hub separates from the shell. The Beast answers that with more material and heat treatment in exactly that area, so the shell is no longer the weak link.
On a 4L60E the computer may set a gear ratio error once the shell slips, even though every solenoid tests fine. That pattern is a strong hint that the problem is mechanical.
Rule out the cheap stuff first: check the fluid level and condition and scan for codes. If the solenoids test good and the unit still loses its upper gears, the shell and the 3-4 clutch pack are the two main suspects. Our 4L60E common problems guide explains how to tell them apart, and the 3-4 clutch apply and AFL valve guide covers the hydraulic side that often burns the clutches first. With the unit apart, look at the inner hub splines on the old shell; rounded or sheared teeth confirm the diagnosis.
The Beast is listed for the full 700R4 and 4L60 family from 1982 through 2013: 700R4 and TH700-R4, 4L60, 4L60E, 4L65E, 4L70E and 4L75E, covering everything from early Camaro and C10 swaps to 2013 Silverado, Sierra, Tahoe and Yukon trucks. It works with both the early washer-style thrust stack and the later Torrington bearing units, which is why the updated nylon washer is included. Even so, compare your old thrust parts with the new shell before assembly, and send us your year and VIN if you want us to double-check. More gear-train parts are in the 4L60E parts collection.
Clean the reaction sun gear and check its splines; a worn gear will chew up a new shell. Install the included nylon washer in place of the old one, check the low roller clutch and its race, and confirm carrier pinions are tight. Measure overall end play before closing the case. A stripped shell usually comes with heat damage elsewhere, so most builders pair it with a Kevlar 2-4 band and inspect or replace the input sprag while everything is apart. Refill with Dexron VI on 4L60E units and check the level hot; older 700R4 units follow the fluid listed in their own service manual.
| Fits | GM 700R4, 4L60, TH700-R4, 4L60E, 4L65E, 4L70E, 4L75E (1982-2013) |
| Part number | 42298B (interchanges A74624A, NTP-51810B) |
| Construction | Thicker heat-treated steel vs factory shell |
| Style | Works with washer-style and Torrington-bearing units |
| Includes | Reaction sun shell and updated nylon thrust washer |
Doing this repair right usually means replacing these at the same time. Same transmission, ships together.
Yes. It is listed for 700R4, 4L60, 4L60E, 4L65E, 4L70E and 4L75E from 1982 to 2013 and interchanges with A74624A and NTP-51810B. Compare your thrust parts before assembly.
Yes. It is set up for both the early washer-style and later Torrington-bearing assemblies, and an updated nylon thrust washer is included.
The factory shell is the most common hard-part failure in this family. If the unit is already apart for a rebuild, a heavy-duty shell is inexpensive protection against tearing it down again.
Inspect the reaction sun gear, low roller clutch and carriers. Many builders also install a new 2-4 band and input sprag during the same rebuild.
4L60E, 4L65E and 4L70E units use Dexron VI ATF. Check the level hot after the first drive.
