4L60E Internal Transmission Wiring Harness, 2006-2008

Your 2006-2008 Chevrolet, GMC or Pontiac with a 4L60E or 4L70E throws shift solenoid codes on a hot afternoon, drops into limp mode stuck in a high gear, and then drives normally the next morning. You replaced a solenoid and the codes came back. That pattern points at the wiring inside the pan. This is the internal transmission harness for 2006-2008 units, listed to replace GM 24234121 and aftermarket 350-0078.

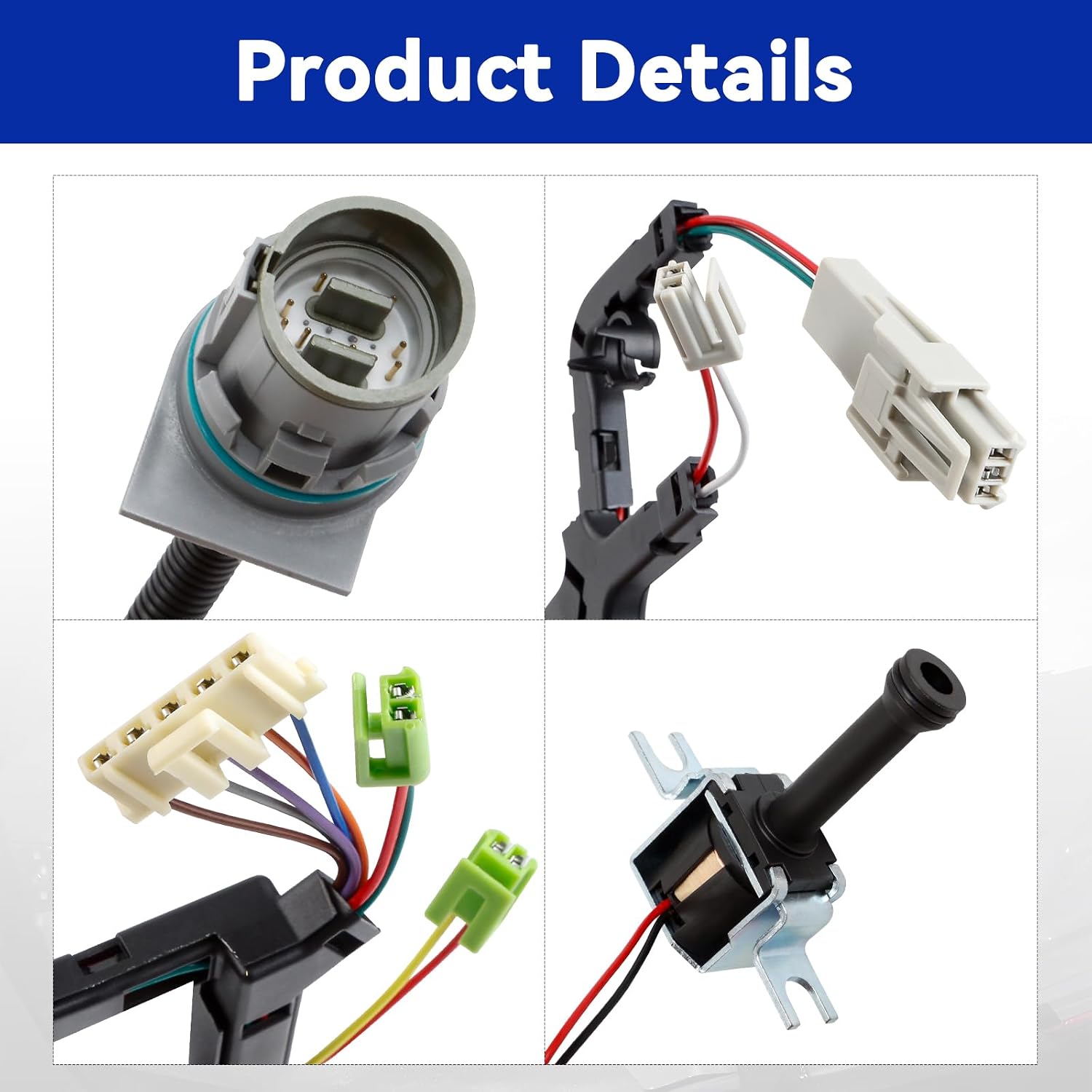

What this harness does in a 2006-2008 4L60E

The engine computer has no direct line to the valve body. Its commands enter through the case connector on the side of the transmission, and this harness carries them inside the pan to the shift solenoids, the TCC and PWM solenoids and the pressure control solenoid, and brings the signal from the pressure switch manifold back out. Everything electrical the transmission does in these years depends on a few feet of wire that sits in hot ATF for its whole life. With age the insulation hardens, and it cracks first where it flexes near the case connector. Where the routing clips have broken or been left off after earlier service, the wires can also chafe against the valve body until a conductor is exposed.

Symptoms that point to the harness

• Shift solenoid electrical codes P0753 or P0758, or control circuit codes in the P0973 through P0976 range, often more than one at a time
• TCC circuit codes or converter lockup that cuts out at cruise
• Limp mode with the truck locked in a high gear, which is how the 4L60E behaves when it loses solenoid control
• Faults that come with heat and disappear after the truck cools off
• A new solenoid that did not make the codes go away

These symptoms are electrical. A truck that shifts on time but slips, flares or has lost third and fourth gear has a hydraulic or hard-part problem, such as the burnt 3-4 clutch or stripped sun shell this unit is known for, and a harness will not help it.

How to confirm it before you buy

Rule out the outside wiring first. ATRA has documented 4L60E trucks that stayed in third with a stack of solenoid codes because of a single bad crimp in the shared power circuit outside the transmission, so check the fuse, the external connector and its pins. Then unplug at the case and measure each circuit through the connector, wiggling the harness as you read. A reading that jumps around, or a circuit that reads open from outside while its solenoid tests good on the bench, is a harness fault. The 4L60E shift problems guide explains which gear the unit defaults to with each solenoid dead, and the 4L60E common problems guide covers the mechanical failures that can look similar.

Fitment

This harness is listed for 2006-2008 Chevrolet, GMC and Pontiac vehicles with the 4L60E or 4L70E, and replaces GM 24234121 and 350-0078. Early 4L60E units use a different harness, and GM revised the internal wiring more than once during the run, so the year alone is not a guarantee. Before you install, lay your old harness next to this one and match the case connector, the solenoid plugs and the pressure switch connector. If you are unsure, send us your year and VIN and we will check it. All 4L60E parts are on the 4L60E parts page.

Install notes

• Drain the fluid and remove the pan and filter. A 4L60E pan service kit with filter and gasket saves reusing an old gasket.
• Unplug each solenoid and the pressure switch manifold and note where every retainer clip sits.
• Release the case connector from the housing without prying on the pins, and inspect its O-ring. Replace it if it is flat or hard, since a weep there wicks fluid into the outside harness.
• Route the new harness along the original path with every retainer in place so nothing touches the valve body or the manual valve linkage.
• Refill with Dexron VI, clear codes and road test through all four gears and several lockup cycles with the fluid hot.
• If the truck already has heat damage or harsh shifts, a 4L60E shift kit can go in while the pan is off.

Will this harness fit a 2004 or 2005 4L60E?

It is listed for 2006-2008 only. GM changed the internal harness over the life of the 4L60E, so compare the connectors on your old harness to this one, or send us your year and VIN before ordering for an earlier truck.

Does it fit the 4L70E?

Yes. The listing covers both the 4L60E and 4L70E in 2006-2008 Chevrolet, GMC and Pontiac vehicles.

What part numbers does it replace?

GM 24234121 and aftermarket 350-0078.

Do I need to replace the solenoids too?

Not if they test good. The harness is sold alone. If a solenoid measures out of range on the bench, replace it while the pan is off; if they all test good and the codes are intermittent, the harness is the likely fault.

Is there a relearn after installing it?

There is no special procedure for the harness itself. Clear the codes, then drive through every gear and several lockup cycles with the fluid hot so the computer can adapt shift feel.
