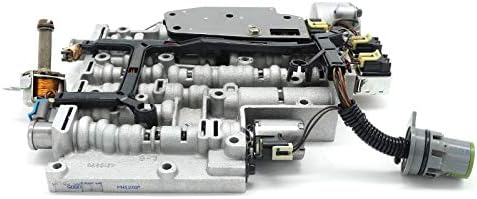

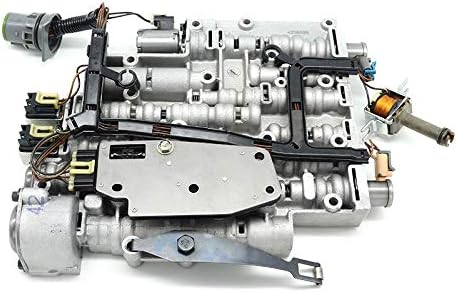

Assembled 4L60E valve body for 2003-2005 GM trucks, supplied with shift solenoids, separator plate and internal harness so it bolts on as one unit.
This assembled shift valve body covers the 2003-2005 4L60E and 4L65E configuration, and the same casting sits behind the 4L70E in that run, so it shows up in a wide range of GM products beyond just half-ton trucks: Silverado, Sierra, Tahoe, Suburban, Yukon, Envoy, Jimmy, and the full-size GM vans all used this layout. It ships with the shift solenoids, the separator plate, and the internal wiring harness in place, which turns what would otherwise be a week of moving parts off a core into an afternoon pan-down job with the transmission still in the vehicle.
A 4L60E solenoid can fail electrically on its own, and that produces a specific symptom: a hard code, a specific gear missing, or a limp-in condition that shows up the moment the part dies. Bore wear in the casting itself behaves differently. The bores around the shift valves, the actuator feed limit valve, and the TCC regulator open up gradually, so the symptoms creep in over tens of thousands of miles: shifts get a little softer, then flared, a converter shudder starts showing up only under light throttle, and line pressure drifts low before it ever throws a hard enough fault to set a code. That gradual pattern is the giveaway that the casting needs to be replaced rather than just the solenoid pack sitting in it.
Our 4L60E common problems guide covers how to tell a solenoid failure from a worn casting before you spend money twice on the same symptom.
If a new solenoid pack already went in and the shift complaint came back within a few thousand miles, the casting is the next thing to check, not the same solenoid again. A shop with vacuum test equipment can isolate which bore is leaking; the bench walkthrough on our blog shows what that test looks like and which bores fail first on a high-mile 4L60E.
This build matches the 2003-2005 separator plate and solenoid layout used across 4L60E, 4L65E, and 4L70E applications in GM trucks, SUVs, and vans. GM split the valve body design at the 1993-2002 and 2003-and-up boundary, so a pre-2003 truck needs the earlier configuration instead of this one. Verify your transmission's year and code stamp against the unit already in the vehicle before ordering, or send us the year, make, and VIN. The full 4L60E lineup we carry is on the 4L60E parts page.
Work from underneath with the transmission still installed: drain the pan, pull the filter, and unplug the case connector from inside the case before touching a bolt. Unbolt the old valve body while supporting it from below, because the checkballs and the accumulator pistons behind the separator plate will drop out of their pockets if the assembly is allowed to tip as it comes free. Account for every checkball before the new valve body goes up against the case, torque the bolts in the factory crossing sequence to spec, and fit a new filter and pan gasket before refilling with Dexron VI. Clear codes and drive the relearn cycle before judging shift quality, since the computer needs a few drive cycles to adapt to the new hydraulic response. A tired internal wiring harness is a frequent companion failure at this mileage, and if the clutch packs have not been serviced, a master rebuild kit addresses the mechanical side while this valve body corrects the hydraulics.
| Fits | GM 4L60E / 4L65E / 4L70E, 2003-2005 configuration |
| Included | Valve body, shift solenoids, separator plate, internal harness |
| Applications | Silverado, Sierra, Tahoe, Suburban, Yukon, Envoy, Jimmy, GM vans |
| Drive type | Rear-wheel drive and 4x4 |
| Fluid | Dexron VI |
| Condition | New |
Doing this repair right usually means replacing these at the same time. Same transmission, ships together.
Solenoids fail electrically and the symptom shows up right away. This valve body addresses bore wear in the casting itself, which causes shifts to get progressively softer or flared over time and does not get fixed by a new solenoid pack alone.
It is built for the 2003-2005 separator plate and solenoid configuration. GM split the design at the 1993-2002 and 2003-and-up boundary, so a 2002 truck needs the earlier version and a 2006 needs a later casting.
Yes, the 2003-2005 4L60E and 4L65E valve body layout is shared with the 4L70E in that production run.
That pattern, a repair that only lasts a short while, usually means the casting bores are worn rather than the solenoid itself. A worn casting wears out a new solenoid's seating surface the same way it wore out the old one.
Silverado, Sierra, Tahoe, Suburban, Yukon, Envoy, Jimmy, and the full-size GM vans built in the 2003-2005 window with a 4L60E, 4L65E, or 4L70E.
Pull codes and compare your transmission's year and code stamp against the 2003-2005 configuration. If possible, confirm with a vacuum or pressure test that a bore is actually leaking before assuming the casting is bad.
