Firms up 4L80E shifts with a new separator plate, accumulator springs and a heavy-duty intermediate case snap ring. Fits 1991-on 4L80E and 4L85E.
A 4L80E that slurs the 2-3 shift when the truck is loaded, smells burnt after a long pull, or has already eaten one set of direct clutch frictions is a classic candidate for an HD2-style reprogramming kit. This kit follows the 4L80E-HD2 layout and fits 1991-and-later 4L80E and 4L85E units in Chevrolet and GMC 2500 and 3500 pickups, Suburban 2500, Express and Savana vans and Hummer H1, plus the swap builds these transmissions end up in. It is the budget alternative to the TransGo-branded HD2 we also stock, with the same style of separator plate, spring and boost valve upgrades.

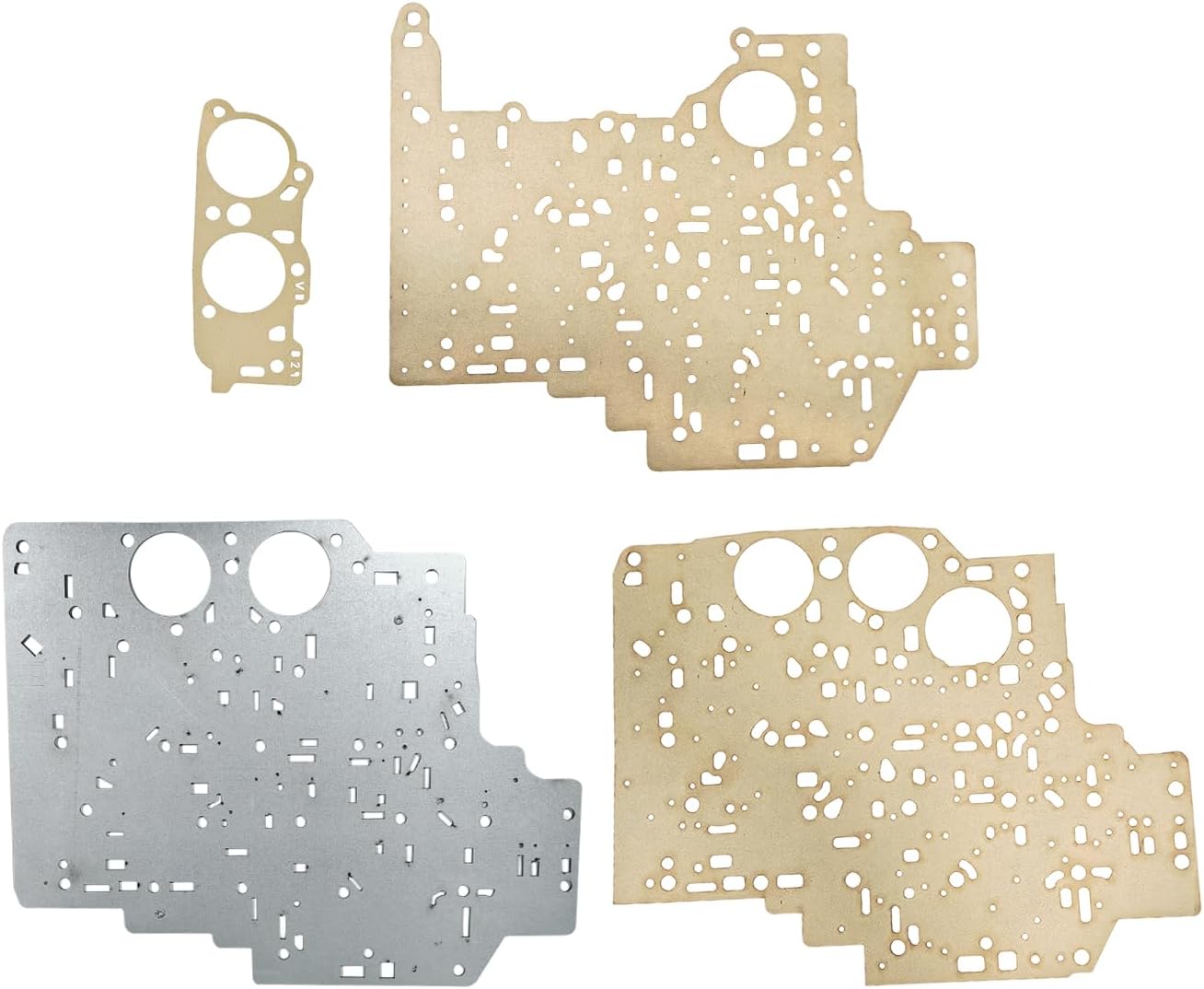

The 4L80E puts a lot of work on its direct clutch: it applies for third, stays applied in fourth and also applies in Reverse. When that clutch fills slowly or sees weak pressure under load, it slips through every 2-3 shift and wears out early. The laminated triple separator plate and its gaskets change how fluid is fed to the third-gear clutch, while the new 1-2 and third accumulator springs shorten the cushion on those shifts. A hardened boost valve replaces the original part that wears in its bore and lets line pressure wander, and the relief valve plate sets a ceiling so the raised pressure cannot climb high enough to damage hard parts. The kit also includes actuator feed filter components, since a broken-up solenoid feed screen starves the shift solenoids of pressure.
A shift kit firms up healthy hardware; it will not fix a dead solenoid, a broken pass-through connector or a bad speed sensor. Pull codes and test the A and B shift solenoids with the steps in our 4L80E shift solenoid diagnosis guide, then check the pressure control solenoid using the 4L80E EPC solenoid symptoms guide. If the shifts are already harsh rather than soft, read the 4L80E harsh shift causes first, because adding pressure to that truck makes it worse.
The kit is listed for GM 4L80E and 4L85E from 1991 on. The 4L80E saw several valve body casting, pressure control solenoid and accumulator revisions over its run, so read the included instructions against your own valve body before drilling anything, and compare the old separator plate to the new one hole for hole. If you are not sure which unit you have, check the transmission ID tag or send us the year and VIN. Everything else for this transmission is in the 4L80E parts collection.
| Part number | 4L80E-HD2 |
| Fits | GM 4L80E, 4L85E, 1991-on |
| Vehicles | Chevy, GMC, Hummer trucks and vans with 4L80E/4L85E |

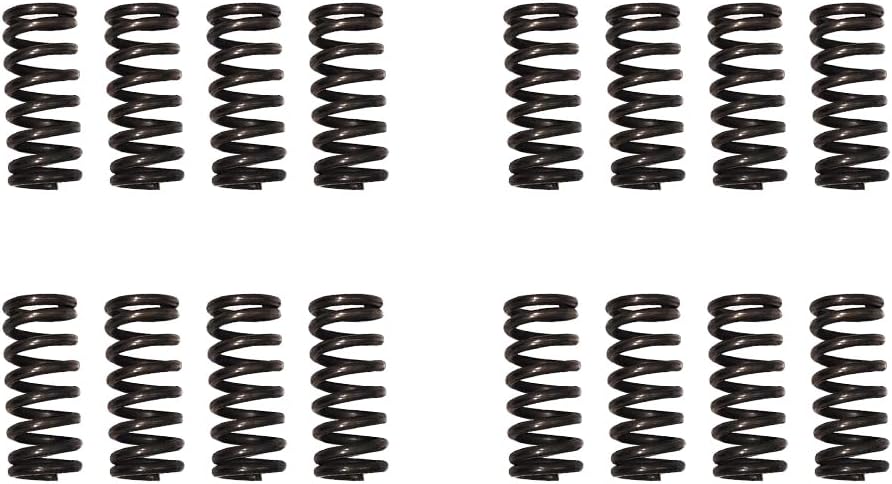

| Includes | Triple separator plate, gaskets, relief valve plate, accumulator springs, 16 direct clutch return springs, boost valve, HD intermediate case snap ring, drill bits |
| Part type | Shift correction / reprogramming kit |
| Condition | New |
Doing this repair right usually means replacing these at the same time. Same transmission, ships together.
No. It is an HD2-style kit built to the same 4L80E-HD2 layout and contents list. If you want the TransGo-branded kit, we stock that separately as the 4L80E Shift Kit 1991-2013.
Yes. It is listed for both the 4L80E and the 4L85E from 1991 on. Match the valve body to the instructions before drilling.
The valve body side of the kit can go in under the pan, but the direct clutch return springs and the intermediate case snap ring need the unit apart. Most of the benefit on a worn unit comes when it is installed during a rebuild.
Yes, shifts get firmer and quicker, which is the point for towing and work trucks. It is not meant to make a healthy daily driver feel stock.
Dexron VI ATF. Fill to the cold mark, then confirm the level with the fluid at normal operating temperature.
Only if the cause is hydraulic. A failed shift solenoid B, harness or connector sets the same code, so test those first.
