4L80E valve body for 1991-2013, Sonnax-updated and ready to install. Ships fast from the USA.
If your 4L80E-equipped truck or van runs hotter than it should in traffic, or takes a beat too long to engage after you first start it, the pump-side pressure regulator is one of the circuits that governs how much fluid actually reaches the cooler and the torque converter at idle. This is a remanufactured 4L80E valve body updated with the Sonnax line-to-lube pressure regulator fix, covering 1991-2013 applications.
The 4L80E pump regulates main line pressure, then sends the excess past the pressure regulator valve to the converter charge and lube circuit, which feeds the torque converter and the external cooler. The factory pressure regulator valve was designed before cooler and converter cooling demands caught up to it, and at low RPM combined with high pressure or high demand, it can starve that circuit, limiting how much fluid actually reaches the cooler when the transmission needs it most, like idling in traffic or towing at low speed.
The same circuit includes a check valve that is supposed to hold charge pressure to the torque converter at idle. When that check valve leaks or the regulator bore wears, fluid can drain back out of the converter between drives instead of holding its charge, which shows up as a delayed engagement the next time you start the truck.
Overheating and slow engagement both have other common causes on this transmission, covered alongside this one in our 4L80E common problems guide.
Check cooler line flow and converter charge with the engine at idle, and watch transmission temperature during a stop-and-go drive with the cooler lines clear and fluid fresh. If temperature climbs even with good airflow across the cooler and a clean fluid level, or the truck hesitates to take gear after sitting overnight, the regulator and check valve in this circuit are worth testing before you replace the cooler itself. Sonnax's bore vacuum test, covered in our 4L80E valve body wear guide, is the same method used to confirm wear here as in the rest of the valve body.
This valve body covers 4L80E units from 1991 through 2013, used behind GM 2500/3500 trucks, Suburban 2500, Express and Savana vans, and the Hummer H1. GM revised the 4L80E several times over that span, including the 1994 deletion of the output speed sensor on 4WD units, so confirm your casting and connector count against your original unit, or send us your year, vehicle and VIN and we will verify the right version before shipping. Every 4L80E valve body we stock is listed on the 4L80E parts page.
Drop the pan with the transmission in Neutral, disconnect the internal harness and manual linkage, and pull the old valve body, keeping the checkballs in order. Install a new filter and pan gasket at the same time so debris already in the pan does not get pulled straight into the new unit, torque the bolts to spec in sequence, and refill with Dexron VI ATF. Let the computer relearn its shift adapts over the first several drives after the swap. If the cooler lines or external cooler are original, inspect them while the pan is down, and pair this with a 4L80E overhaul kit if the fluid that came out was dark or burnt.
| Transmission | 4L80E |
| Year Range | 1991-2013 |
| Condition | Remanufactured / updated |
| Shipping | Ships from the USA |
Doing this repair right usually means replacing these at the same time. Same transmission, ships together.

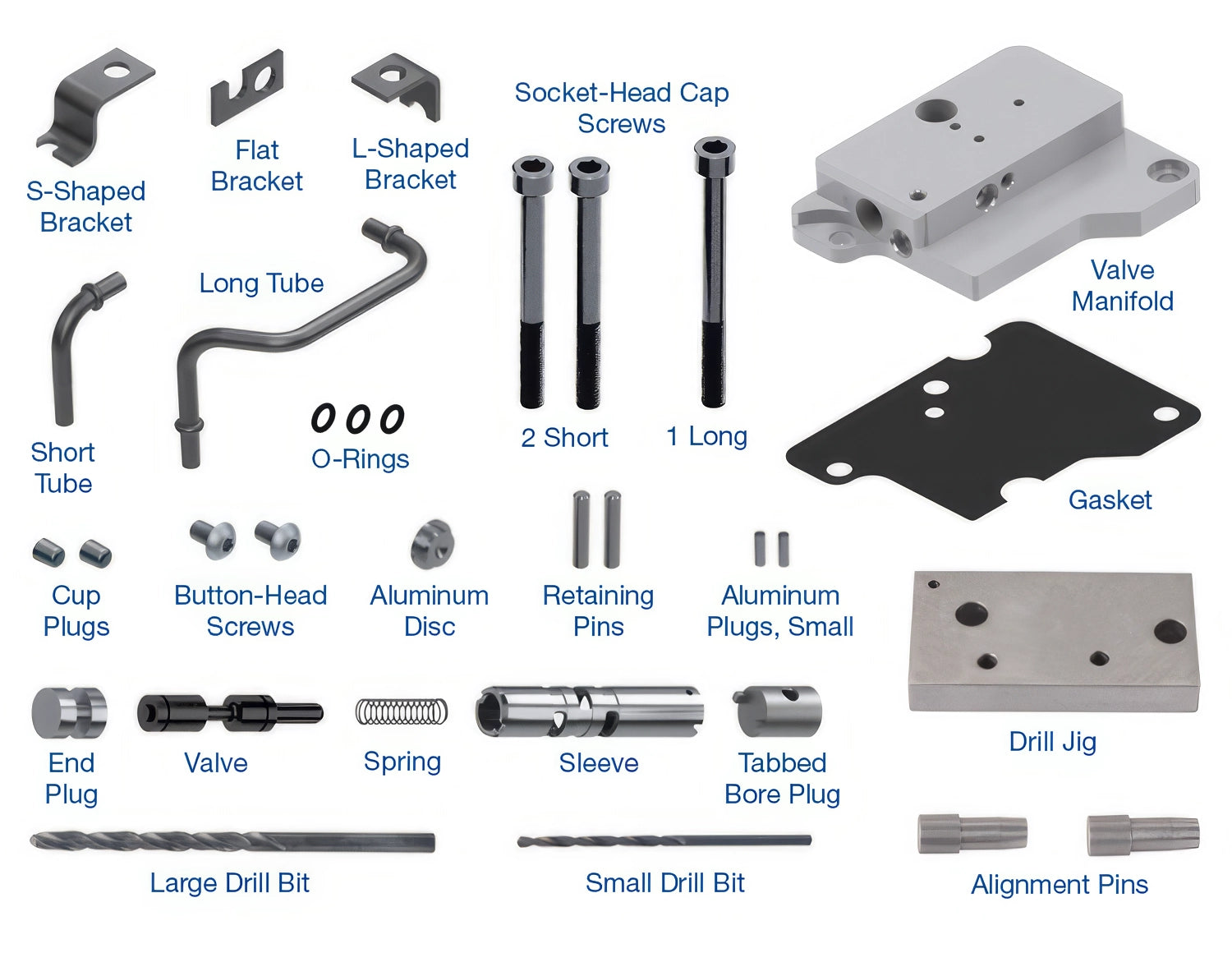

It replaces the factory pump-side pressure regulator valve with a Sonnax design that increases cooler flow at low RPM and high pressure, and adds an encapsulated check valve that holds converter charge pressure at idle instead of letting it drain back.
If the heat is coming from restricted flow to the cooler through this regulator circuit at idle and low RPM, yes. If the cooler itself is clogged, the lines are restricted, or airflow across the cooler is blocked, those need to be checked and fixed too.
That is a classic sign of converter or pump drainback, where fluid leaks out of the converter charge circuit between drives. The check valve in this regulator circuit is built to hold that charge, and a worn one lets it bleed down.
It covers that span, but the 4L80E went through several revisions, including the 1994 output speed sensor deletion on 4WD units. Match your casting and connectors against your old unit, or send your year, vehicle and VIN and we will confirm fitment.
Inspect your cooler lines and external cooler for restriction while the pan is down, change the filter and pan gasket, and refill with Dexron VI. If the old fluid was burnt, a full overhaul kit is worth doing at the same time.
