6L90 valve body for 2006-2017, Sonnax-updated and ready to install. Ships fast from the USA.
If a 2006-2017 6L90 in a Silverado 2500/3500, Sierra HD, Express, or Savana starts in the wrong gear, binds up on a 1-2 or 2-3 shift, or sets a pressure-control performance code even after the solenoids have been swapped, the root cause is almost always bore wear inside the valve body, not the solenoid itself. This unit uses the Sonnax corrected valve kit and bore work rather than a straight OEM rebuild, so the specific wear points that cause these symptoms are addressed directly instead of reinstalling the same geometry that failed.

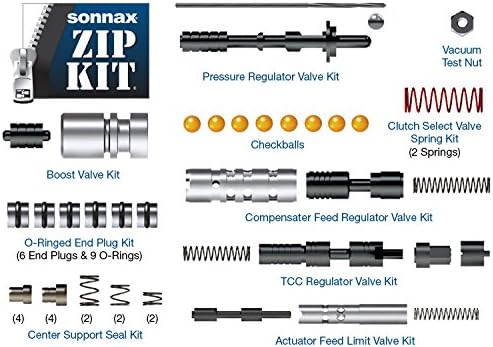

The 6L90 valve body routes line pressure through spool valves to apply every clutch and band, and on this electronically controlled unit it also carries the shift and pressure-control solenoids the computer commands to time each shift. Sonnax's own tech documentation on the 6L45-6L90 family identifies the AFL (actuator feed limit) valve, the pressure regulator and boost assembly, and the TCC regulator apply valve as the bores that wear first and cause the widest range of complaints. This valve body is remanufactured with the corrected valves and bore work for those circuits, then function-tested before it ships, rather than reusing worn bores with only the solenoids replaced.
Our 6L90 valve body testing guide covers how to isolate bore wear from a bad solenoid using line pressure checks, and the 6L90 valve body wear guide goes deeper on the specific AFL, pressure regulator, and TCC apply valve wear locations Sonnax documents and the codes each one sets. If solenoids have already been replaced once and the same code keeps coming back, that pattern is the strongest sign the bore itself, not the solenoid, is the real failure.
This valve body covers 2006-2017 applications across the 6L90 as installed in GM's heavy-duty lineup, including the Silverado 2500/3500, Sierra HD, and Express/Savana vans, and the Camaro ZL1 and Corvette Z06/ZR1 that share the transmission family. The 6L90 shares architecture with the lighter 6L80 but runs a longer case and heavier internals, so confirm casting and connector match against your original before ordering, or send your year and VIN. Browse every 6L90 part we carry by year and revision on the 6L90 parts page.
Change the fluid and filter at the same time as the valve body so debris from the worn original does not reach the new bores, and refill with Dexron VI ATF. Torque the valve body bolts in GM's specified sequence and run the adaptive shift relearn with a scan tool once reassembled; GM's own technical bulletins on 6L80/6L90 shift shudder and surge complaints call out the relearn as part of the fix, not an optional step. If the original pressure-control codes already damaged clutch material, pair this valve body with a 6L90 overhaul kit rather than installing it on its own, or add a 6L90 clutch module if a specific clutch pack is the one showing burnt material.
| Transmission | 6L90 |
| Year Range | 2006-2017 |
| Condition | Remanufactured / updated |
| Shipping | Ships from the USA |
Doing this repair right usually means replacing these at the same time. Same transmission, ships together.
It corrects the specific bores Sonnax documents as wearing first on the 6L45-6L90 family, including the AFL valve, pressure regulator/boost assembly, and TCC regulator apply valve, rather than reinstalling the same worn geometry.
That pattern usually means bore wear rather than a bad solenoid, which is exactly what the corrected valves in this unit address.
It covers 2006-2017 as a range, but confirm your casting number and connector count against your original, or send your year and VIN, since the 6L90 ran through internal updates during this span.
If the shudder traces to TCC regulator apply valve wear leaking off lockup pressure, yes. If the torque converter itself has failed internally, the valve body will not fix that on its own.
Fresh filter, pan gasket, and Dexron VI ATF at minimum. If burnt clutches already resulted from the pressure-control fault, add an overhaul kit or the specific clutch module showing damage.
Yes, run the adaptive shift relearn with a scan tool after reassembly. GM's own bulletins on 6L80/6L90 shift complaints treat this as part of the repair, not optional.
