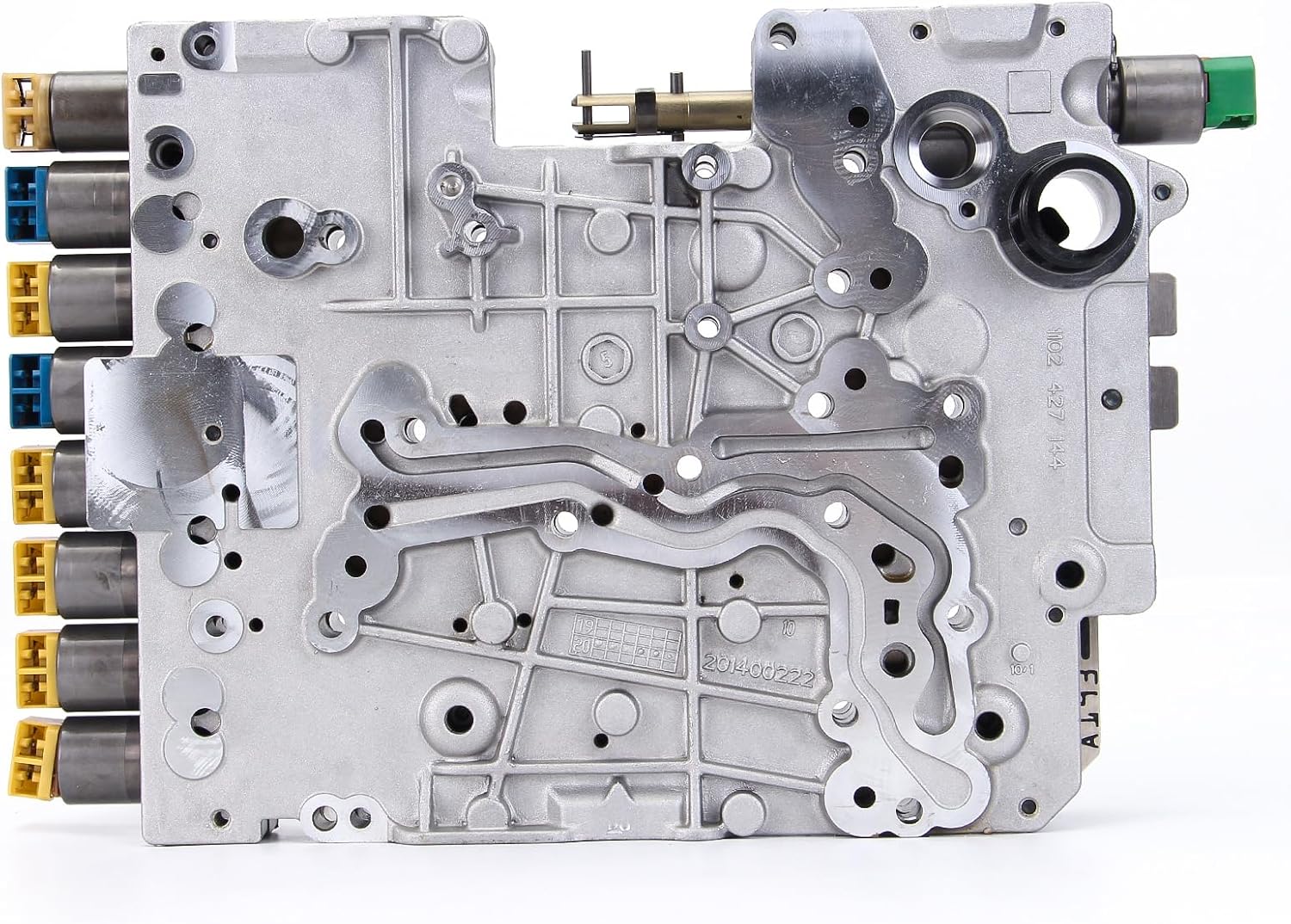

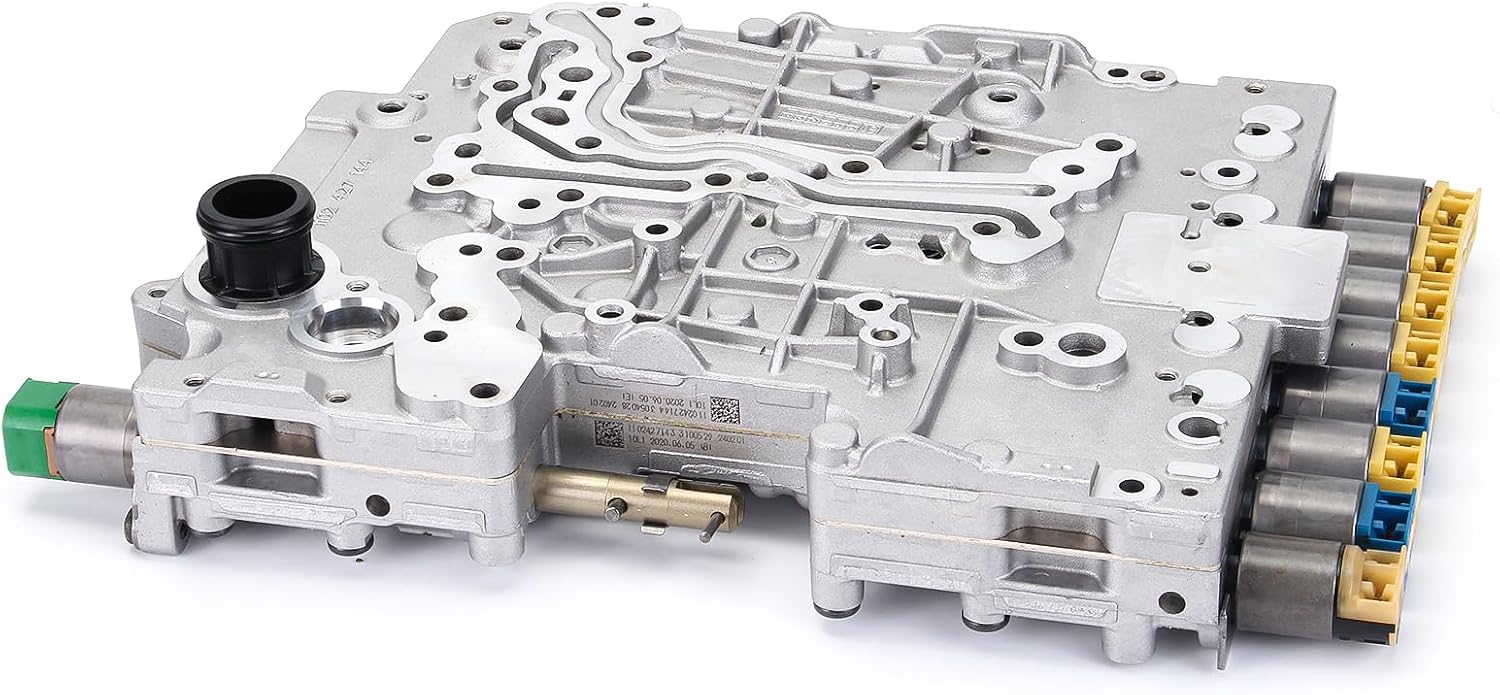

Complete ZF 8HP65 valve body with the solenoid pack installed, for Audi A6, A7, A8, Q5, S4 and S5 with the 0D5 eight-speed automatic.
The ZF 8HP65 (Audi/VW transmission code 0D5) is the longitudinal eight-speed automatic behind the Audi A6, A7, A8, Q5, S4, S5 and S6, and like every 8HP variant it has no mechanical fail-safe - every shift depends on this valve body routing line pressure through precision bores to the right clutch, timed by the shift and pressure-control solenoids bolted to it. This listing is a complete valve body with the solenoid pack already installed, so you are not pairing a fresh casting with tired solenoids pulled off the old unit.
Inside the 8HP65, the valve body is the hydraulic control center for all eight forward gears plus reverse. The transmission control module fires the shift and pressure-control solenoids mounted on the valve body, which move spool valves inside precision bores to apply and release clutches in the sequence that produces each gear change and the converter lockup. The ZF 8HP family - 8HP45, 8HP55, 8HP65, 8HP70 and 8HP75 among them - shares this same basic hydraulic architecture, which is why the wear points Sonnax and ZF document on the more common 8HP45/8HP70 units show up on the 8HP65 as well.
Sonnax's vacuum-test documentation for this valve body family traces most of these complaints to bore and sleeve wear at the main pressure-regulator valve, which lets fluid bleed past the valve and drops line pressure across the whole unit - fresh fluid alone does not fix worn bores. Our ZF8HP valve body wear and bench-fix guide walks through isolating that wear pattern from a mechatronic sleeve leak, which our mechatronic sleeve leak guide covers separately, since both show up as similar pan-area symptoms but need different repairs.
This valve body is built for the ZF 8HP65/8HP65A as installed in the Audi A6, A7, A8, Q5, S4, S5 and S6 running the 0D5 transmission code. ZF's 8HP family is not cross-compatible between torque ratings - the 8HP65 casting does not interchange with the 8HP45, 8HP70 or 8HP75 valve bodies used elsewhere on this same platform family - so confirm your 0D5/8HP65 code against your transmission tag or VIN before ordering. The ZF 8HP parts collection carries the other torque-rated versions if yours turns out to be a different member of the family.
Drop the pan, drain the fluid, and unplug the internal harness at the mechatronic connector before unbolting the valve body in the factory sequence - rushing the bolt pattern is a common cause of a valve body that leaks or binds after installation. Refill with ZF LifeGuard 8 fluid only, no additives, set the fluid level at the correct operating temperature rather than by sight, and run the TCM's adaptation reset afterward so it relearns clutch fill times against the new solenoids instead of the old ones. If your car runs hot in stop-and-go traffic or towing, pairing the swap with a ZF8HP transmission cooler reduces the heat that drives this same bore wear in the first place.
| Transmission | |
| Includes | |
| Fitment | |
| Item weight | |
| Shipping dimensions | |
| Finish |
Doing this repair right usually means replacing these at the same time. Same transmission, ships together.
No. This listing includes the solenoid pack already installed, so you are not pairing a fresh casting with worn solenoids pulled off your old unit.
A hard bang into Drive or Reverse, a flare or slip concentrated on one specific upshift, torque converter lockup shudder, delayed cold engagement, and pressure-regulation or solenoid-circuit fault codes in the TCM.
No. The 8HP65/0D5 casting does not interchange with the 8HP45, 8HP70 or 8HP75 used elsewhere on the same ZF 8HP platform family. Confirm your 0D5/8HP65 code against your transmission tag or VIN first.
ZF LifeGuard 8 only, with no additives. Set the fluid level at the correct operating temperature, not by sight.
Run the TCM's adaptation reset so it relearns clutch fill times against the new solenoids instead of the worn ones you removed.
If the car runs hot in stop-and-go traffic or towing, a ZF8HP transmission cooler reduces the heat that drives the same bore wear that damaged the original valve body.
