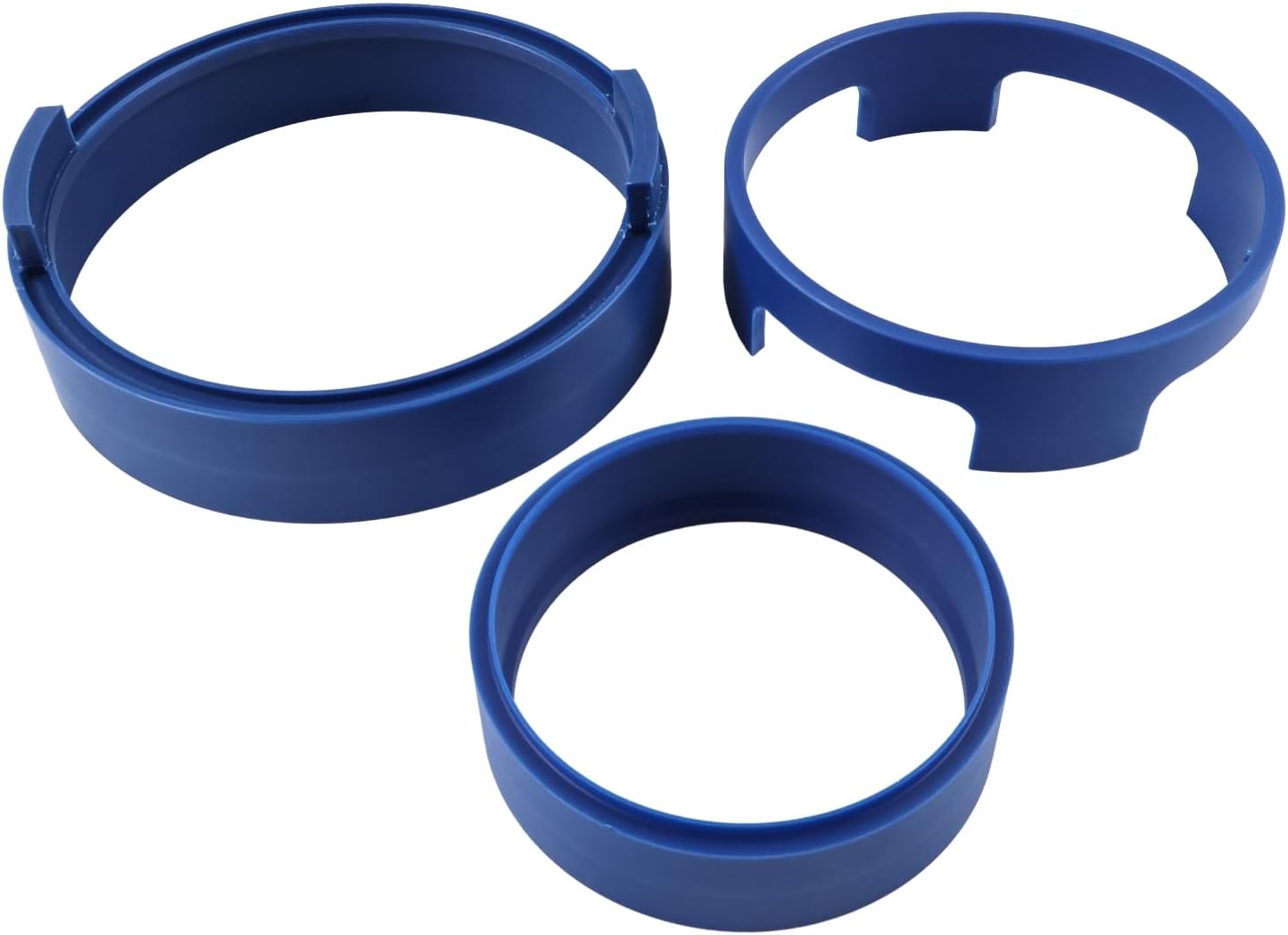

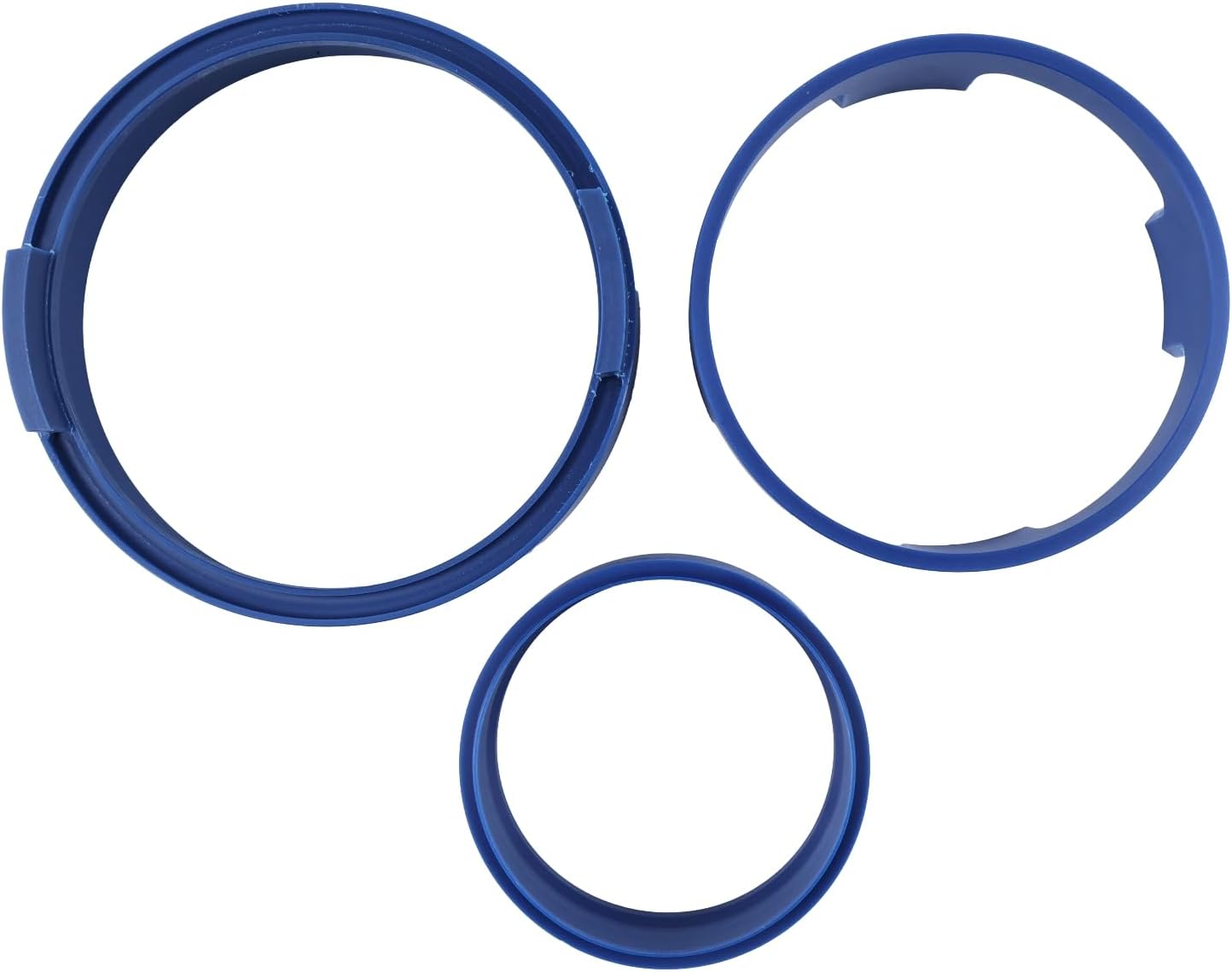

Factory-pattern A75N18 compressor that holds the 10R80 clutch piston return spring down so you can pull the retaining ring safely.
Anyone who has torn down a Ford 10R80 out of an F-150, Expedition, Navigator, Mustang or Ranger knows the moment: the clutch pack is out, the piston return spring is still sitting under its retaining ring, and there is nothing on the bench that can hold that spring down while you get the ring out. This A75N18 pattern compressor is made for exactly that step. It loads onto the spring retainer, takes the spring force off the ring, and lets you remove and reinstall the ring with ordinary snap ring pliers instead of a screwdriver and luck.
The 10R80 has six clutches, and each apply piston is pushed back off its pack by a return spring assembly. That assembly is captured by a retaining ring sitting in a groove inside the drum or cylinder. With the spring preloaded against it, the ring cannot be lifted out by hand. The compressor bridges the drum, bears down evenly on the retainer, and holds it below the groove while you work. Because the load is spread around the whole retainer rather than pressed in at one point, the retainer stays flat and the ring comes out without being bent.
Going back together it does the same job in reverse. Stack the spring assembly and retainer, compress just far enough to clear the groove, set the ring, and look all the way around the ring to make sure it is seated in the groove before you back the tool off. A ring that is only partly in its groove can feel solid on the bench and still come loose once the piston sees line pressure.
You need this tool any time a clutch piston has to come out, which means any full overhaul and many targeted repairs. The most common one is the CDF cylinder repair. Ford TSB 24-2254 covers harsh or delayed engagement and shifts on 10R80 units built on or before 15 August 2022, traced to sleeve movement in the CDF clutch cylinder. The repair procedure has the C, D and F clutch assemblies taken out of the old cylinder and built into a new one, followed by clutch pack clearance checks using selective snap rings. Every piston and spring in that cylinder has to come apart and go back together, and that is where this compressor earns its price. Our 10R80 common problems and fixes guide explains the CDF failure and the other repairs that send these units to the bench, and the 10R80 F-150 common problems guide covers what F-150 owners usually see before a teardown.
If you are still deciding whether the transmission needs to come out at all, start with the 10R80 F-150 shift problems guide. Plenty of harsh-shift complaints on these units are settled with a software update and adaptive relearn before anyone opens the case.
This is listed for the Ford 10R80 ten-speed rear-wheel-drive automatic used from 2017 in the F-150 and Transit, from 2018 in the Expedition, Navigator and Mustang, and from 2019 in the Ranger. The listing also describes it as suiting the GM 10L80 family, which was developed alongside the 10R80. It is not intended for the lighter 10R60 used in the Bronco or the heavy-duty 10R140. Manufacturer part number A75N18. You get the single compressor tool; snap ring pliers are not included. The tool weighs about 1.05 lb and ships in an 8.27 x 8.27 x 2.36 in package. See the rest of our tools and parts for this unit on the 10R80 parts page.
After the unit is back in the vehicle, refill with Mercon ULV, set the level hot, and complete Ford's adaptive learning drive cycle before judging shift quality.
| Part number | |
| Fits | |
| Function | |
| Weight | |
| Package dimensions | |
| Included |
It is listed for the Ford 10R80 ten-speed used in the F-150, Transit, Expedition, Navigator, Mustang and Ranger, and the listing also notes the GM 10L80 family. It is not meant for the Bronco 10R60 or the 10R140.
Yes, in practice. The Ford TSB 24-2254 procedure moves the C, D and F clutch assemblies from the old CDF cylinder into a new one, and each piston return spring has to be compressed to remove and reinstall its retaining ring.
No. You get the single A75N18 compressor tool. You will need your own internal snap ring pliers to lift the retaining ring out once the spring is compressed.
It is how many 10R80 drums get scored and retaining rings get bent. The spring preload is high, and a slip can damage the bore that the piston seals ride in or let the spring assembly fly off the bench.
Replace the piston seals and the clutch and steel plates if they are worn, and resize new input shaft sealing rings before reassembly. An overhaul kit covers the seals and gaskets in one order.
Mercon ULV only. Set the level at operating temperature, then run Ford's adaptive learning drive cycle so the module relearns clutch fill on the rebuilt unit.
