Tapered sleeves that stretch a solid Teflon sealing ring over the shaft and squeeze it back to size on Ford 10R80 and GM 10L90 builds.
If you are rebuilding a Ford 10R80 out of an F-150, Expedition or Mustang, or a GM 10L90 out of a Silverado, Sierra, Tahoe or Escalade, you will hit a step that hand tools cannot do well: getting new one-piece Teflon sealing rings onto the shafts and back down to size so the mating drum slides over them. This set is the tapered sleeve kit made for that job. It is also the tool people go looking for after a fresh build comes back with one slipping gear, a soft engagement or a converter that will not hold lockup, because a ring that was rolled on by hand or left oversized is one of the first things to suspect.

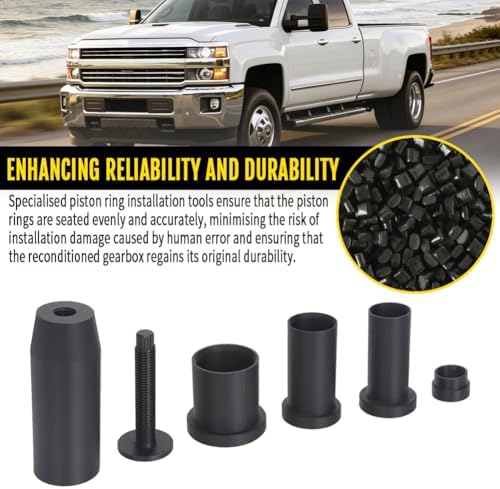

These ten-speeds route clutch oil through spinning shafts and hubs. Every feed is separated from its neighbor by a ring sitting in a machined groove, and those rings are solid PTFE, not the scarf-cut style older units used. A solid ring has no gap to open, so it has to be stretched to get past the shaft end and then shrunk back to installed diameter. The expander sleeve in this set is a cone that opens the ring a little at a time as you push it toward its groove. Once the ring drops in, the resizer sleeve slides over it and steps it back down evenly, so it stays round and flush with the shaft. If you skip the second step, the ring stands proud of its groove and the drum lip shaves a strip off it on assembly. The result is a leak at that circuit before the truck ever leaves the shop.
ATRA's GEARS Magazine is direct about this: on a 10L rebuild the rotating sealing rings must be replaced, because reused rings leak and cause intermittent shift quality problems. That is why this tool is a normal part of the job rather than an extra.
Start outside the case. Check fluid level and condition, scan every module, and rule out the hydraulic control side using our 10L80 valve body symptoms and testing guide. If the unit is already apart, air check each drum on its mating shaft. A hiss at a ring land points to that ring or the bushing next to it. Transmission Digest notes that on the 10R80 the C, D and F circuits feed through the long input shaft and the sun gear shaft, so air checking those clutches through the case is difficult and checks on the bench assembly are more reliable. When a single clutch keeps burning, our 10L80 3-4 clutch failure guide walks through the pressure-loss causes in more detail.

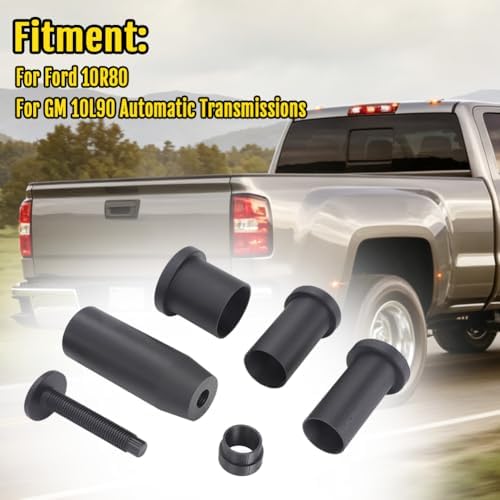

Listed for the Ford 10R80 and the GM 10L90 ten-speed families, which share the same basic design. That covers 2017-up Ford trucks and SUVs with the 10R80 and GM full-size trucks, SUVs and performance cars with the ten-speed. GM made running changes to these units over the years, including a later valve body generation, so before you start compare the sleeves against your actual shaft and ring diameters. If you are not sure which unit you have, send us your year and VIN and we will check it. You can browse every part we carry for this family on the 10L80/10L90 collection page. Part 501ABB1, about 9.9 oz, molded high-strength plastic.
Most people buying this are doing a full rebuild, so pair it with a ring and seal set such as the 10L80 overhaul kit for 2018-2024. If you also need to pull clutch pistons, the 10R80 return spring compressor handles the snap rings without bending the spring cages.
| Fits transmissions | |
| Ring type | |
| Material | |
| Design | |
| Part number | |
| Weight |
It is listed for the Ford 10R80 and GM 10L90 ten-speeds. The GM 10L80 and 10L90 share the same basic design, but compare the sleeves against your shaft and ring diameters before you start, or send us your year and VIN and we will check.
No. ATRA's guidance for the 10L series is that rotating sealing rings must be replaced on a rebuild because reused rings leak and cause intermittent shift quality problems. Plan on new rings every time the shafts come apart.
A solid PTFE ring stretched by hand goes on uneven and stays oversized or out of round. The drum then shaves it during assembly, or it leaks at one spot. The tapered expander opens it evenly and the resizer brings it back to installed size.
Slip or flare on one particular shift, harsh or delayed engagement, converter lockup and overheat concerns, and shaved Teflon in the pan after a rebuild. Confirm with an air check of each drum on its mating shaft.
GM specifies DEXRON ULV for its ten-speeds and lists an 8.1 quart service fill for the 10L80 in many trucks and SUVs. Ford 10R80 units use MERCON ULV. Use the fluid your owner's manual names and check level at operating temperature.
Yes. After any internal repair, clear the shift adapts and run the adaptive relearn procedure with a scan tool that supports it, then drive through all gears so the module can learn clutch fill times again.
