4L60E Master Solenoid Kit with Internal Harness, 1993-2002

When a 1993-2002 Silverado, Sierra, Tahoe, Yukon, Suburban, S10, Blazer, Sonoma, Camaro or Corvette starts in second, flares on the 3-2 downshift, never locks the converter, or keeps throwing P0750, P0755, P0740 or P1870, an aging electrical package on the valve body is the usual suspect. This new master kit replaces every solenoid in the early 4L60E plus the internal wiring harness that connects them to the case connector, so one pan-off job renews parts that have all lived through the same heat cycles.

What the solenoid kit does in a 1993-2002 4L60E

The transmission computer never touches a shift valve directly. It switches two on/off shift solenoids, A for the 1-2 valve and B for the 2-3 valve, and the four on/off combinations of that pair produce first through overdrive. The pressure control (EPC) solenoid is current-controlled and sets line pressure, which is what decides whether a shift feels crisp or mushy. The TCC on/off solenoid and the TCC PWM solenoid apply and modulate the converter clutch, and the 3-2 control solenoid times the downshift into third. Every one of these is fed regulated oil from the actuator feed limit valve, and every one is wired through the internal harness to the pass-through connector in the case. This kit includes all six solenoids and that harness.

Symptoms that point to this kit

• Starts in second or holds one gear until the key is cycled (failsafe operation)
• Missing 1-2 or 2-3 shift with solenoid circuit codes such as P0750 or P0755
• Converter will not lock, or codes P0740 or P1870 for TCC operation
• Flare or bang on the 3-2 downshift when you roll back into the throttle
• Harsh or soft engagement and shifts from a worn EPC solenoid, one of the best-known 4L60E weak points
• Codes that come and go when the harness moves, usually cracked insulation or a burned pin at the pass-through

How to confirm the problem first

Start at the case connector before you drain anything. ATRA's resistance chart puts each shift solenoid at roughly 20-40 ohms and the pressure control solenoid at about 3.5-8 ohms, measured across specific connector pins. If several solenoid codes are stored at the same time, suspect the wiring: ATRA documents a bad terminal crimp on the shared power circuit setting a whole string of codes. Our 4L60E shift solenoid testing guide covers the pin-by-pin checks, and the TCC solenoid and P0740 guide handles lockup complaints. If everything reads in range and the shift faults remain, worn valve body bores are the next step, and no solenoid set will cure those.

Fitment

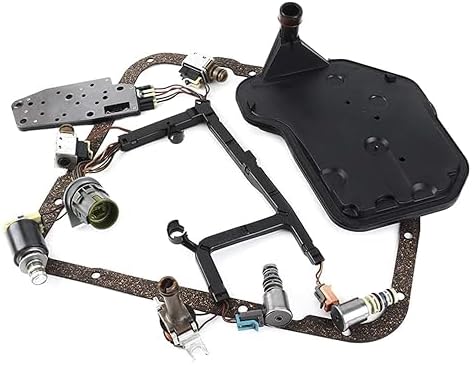

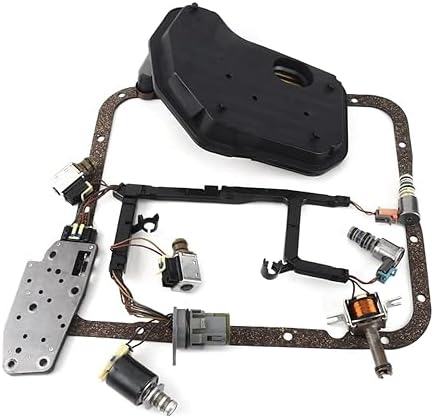

This kit is built for the 1993-2002 GM 4L60E only. It cross-references to GM numbers including 10478112, 10478120, 24230298, 24219581, 24220158 and 8684216. GM changed the pressure control solenoid and internal harness for 2003, so a 2003-or-later 4L60E, and any 4L65E, needs a different kit. Within the 1993-2002 run there were running changes too, so compare the solenoid shapes and harness connectors in the photos with what is on your valve body, or send us your year and VIN and we will check it. Every 4L60E kit and valve body we carry is on our 4L60E parts page. If you only need one piece, the GM 24212327 3-2 shift solenoid is sold on its own.

Install notes

• Drain the fluid, drop the pan and pull the filter. Unplug the harness at each solenoid and at the pressure switch manifold, then remove the clips and bolts holding the solenoids.
• Note how the old harness is routed before you take it out. Lay the new one along the same path so it cannot rub the valve body or the manual valve linkage.
• Lubricate every new O-ring with ATF and seat each solenoid straight; a cut O-ring leaks pressure and recreates the problem you are fixing.
• Torque the solenoid bolts to spec, install a new filter and pan gasket, and refill. The 1993-2002 kit with filter and gasket bundles those service parts if you prefer one box.
• Fill with Dexron VI, check the level hot, clear codes, and road test through every shift and converter lockup.

Will this kit fit my 2003 or later 4L60E?

No. It is made for 1993-2002 units. GM changed the pressure control solenoid and the internal harness for 2003, so later 4L60E and 4L65E transmissions need a year-matched kit.

Which solenoids are included?

The 1-2 and 2-3 shift solenoids (A and B), the 3-2 control solenoid, the TCC on/off solenoid, the TCC PWM solenoid, the pressure control (EPC) solenoid, and the internal wiring harness.

Why replace every solenoid instead of just the one with a code?

They share the same age, mileage and heat history, and the pan has to come off for any of them. When one early 4L60E solenoid fails the others are usually not far behind, so doing the set once avoids a second pan drop.

I have several solenoid codes at once. Is this the fix?

Possibly, but check the wiring first. Multiple codes together often come from a harness or terminal fault. Measure resistance at the case connector and inspect the pass-through pins before you order.

What fluid and relearn does it need?

Refill with Dexron VI ATF and check the level hot. Clear the codes, and if your scan tool supports it reset the shift adapts, then road test through all gears and lockup.
